SC400N4-L TVI
4 CH 1080P30 TVI / CVI / AHD / CVBS
| Max. Input Resolution | 1920×1080p@30/25fps |
| Video Input | 4×TVI |

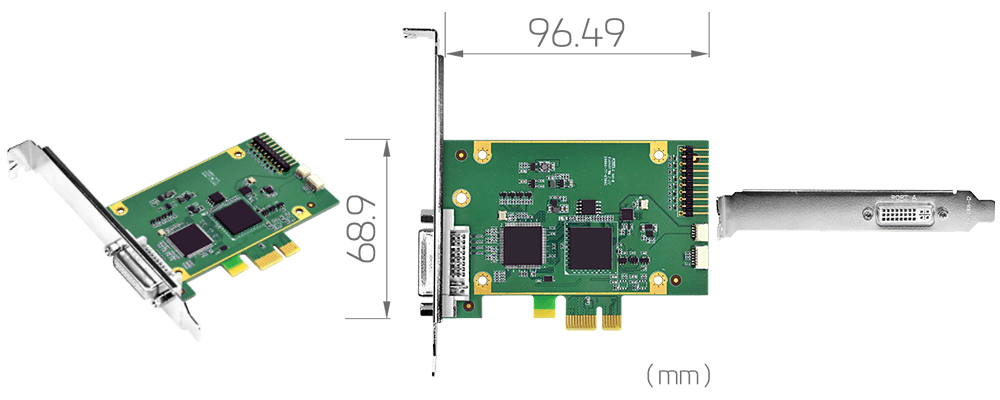

| Dimension |
96.49×68.9 ( mm ) PCIe Low Profile |
| Interface | PCIe×1 (Gen2) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail |
TVI CVI AHD CVBS |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
TVI / Compatible Analog HD (A/C) : 1920×1080p@30/25fps 1280×720p@60/50/30/25fps 960H / CVBS : 960×480i@60fps 720×480i@60fps 960×576i@50fps 720×576i@50fps |
| Audio Input | 4×RCA |
| Audio Format | Mono / 16-Bit / 48000Hz |
| GPIO | 8 |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
