SC400N2-L AIO
2 CH 1080P60 AIO+SDI
| Max. Input Resolution | 1920×1080p@60/50fps |
| Video Input | 1×DVI-I, 1×SDI |

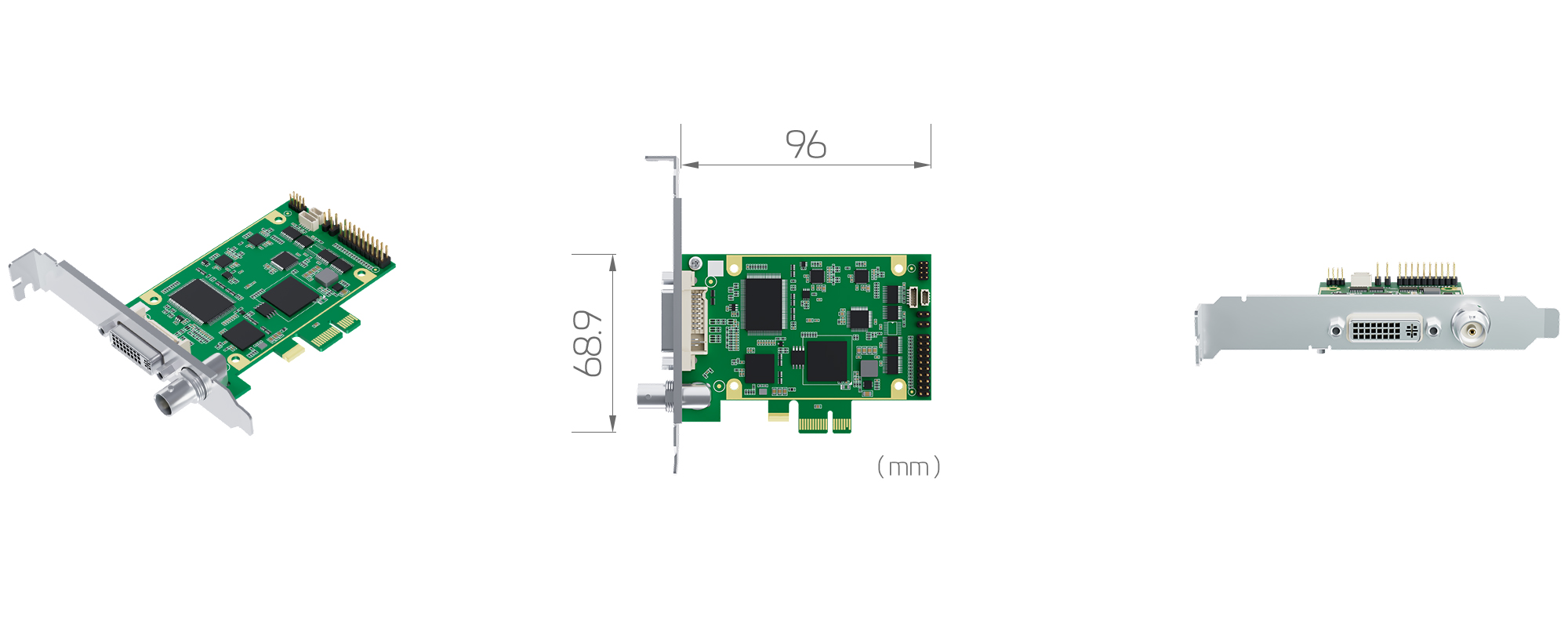

| Dimension |
96×68.9 ( mm ) PCIe Low Profile |
| Interface | PCIe×1 ( Gen2 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 1×HDMI, 1×SDI, 1×CVBS, 1×S-Video, 1×YPbPr, 1×VGA |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
HDMI, DVI : 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ✻ More resolution supported by SDK 3G-SDI : 1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fps CVBS, S-Video 720×480i@60fps 720×576i@50fps YPbPr 1920×1080p@60/50fps 1920×1080i@60/50fps 1280×720p@60/50fps 720×480p@60fps 720×576p@50fps |
| Audio Input |
HDMI Embedded Audio SDI Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | 16 |
| WatchDog | V |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
