SC720N1-L DP1.4a
1 CH 8K30/4K120 DP1.4a
| Max. Input Resolution | 7680×4320@30/25fps |
| Video Input | 1×DP1.4a |

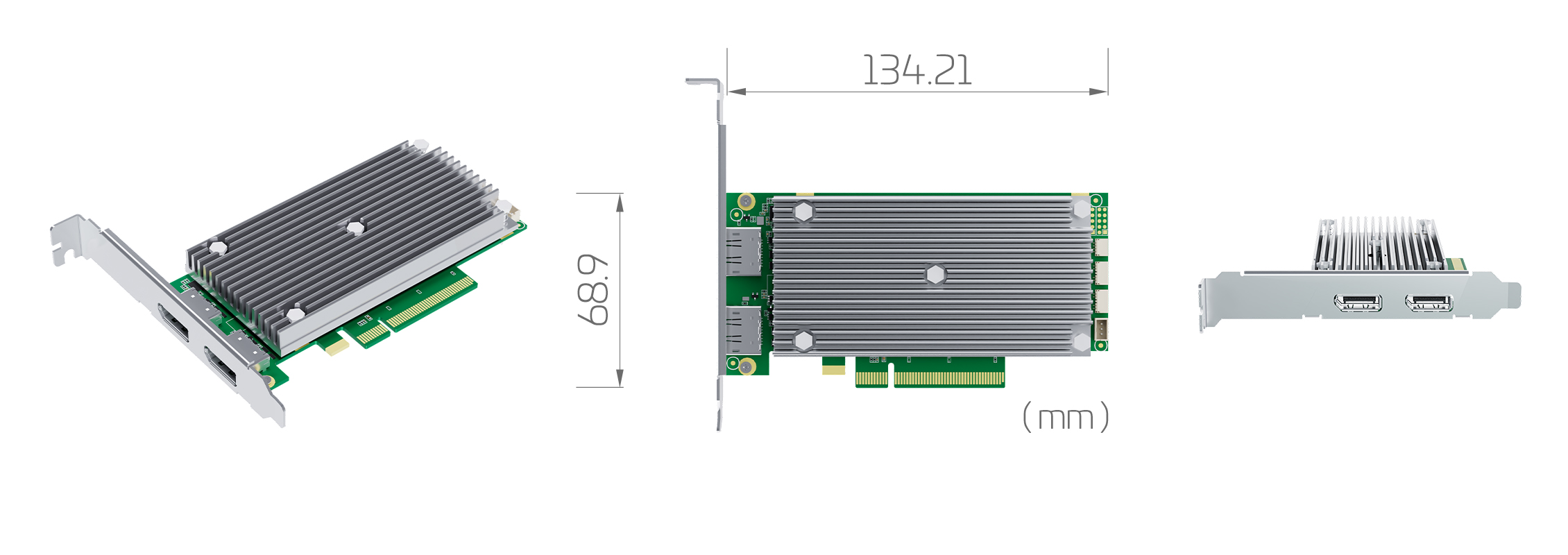

| Dimension |
134.21×68.9 ( mm ) PCIe Low Profile |
| Interface | PCIe×8 ( Gen2 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | DP1.4a |
| Video Output |
DP1.4a ( Loop-Through ) |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
DP1.4 : 7680×4320@30/25fps 3840×2160@120/60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ※More resolution supported by SDK |
| Audio Input | 1×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
