SC542N4 HDMI
4 CH 1080P60 HDMI
| Max. Input Resolution | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Video Input | 4×HDMI |

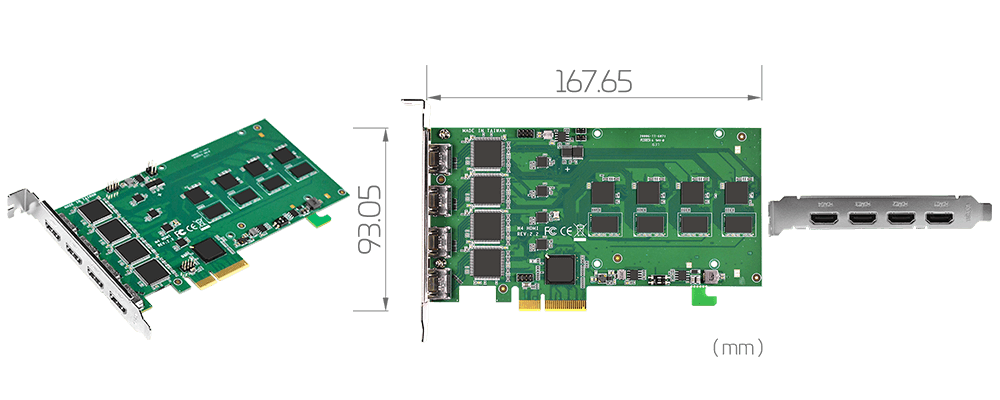

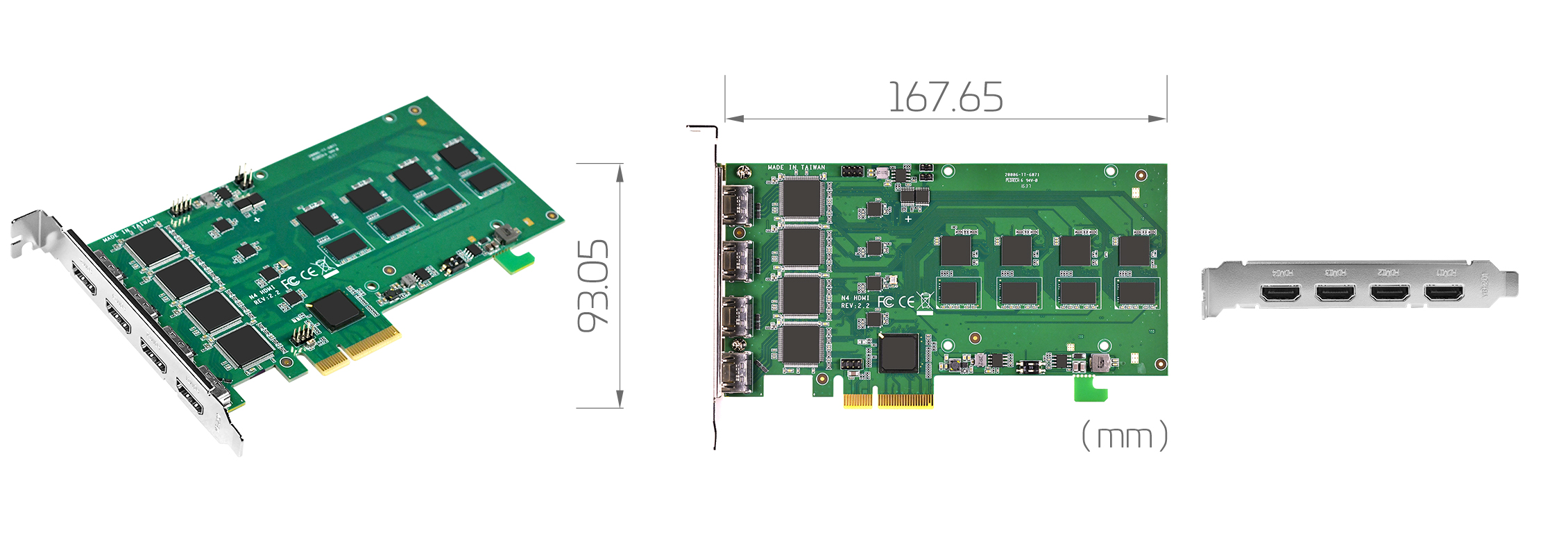

| Dimension | 167.65×93.05 ( mm ) |
| Interface | PCIe×4 ( Gen2 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 4×HDMI |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
HDMI : 1920×1200p@60/50/30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ✻ More resolution supported by SDK |
| Audio Input | 4×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | V |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
