SC400N1-L HDMI

1 CH 1080P60 HDMI

SC400N1-L HDMI
Max. Input Resolution 1920×1080p@60/50fps
Video Input 1×HDMI

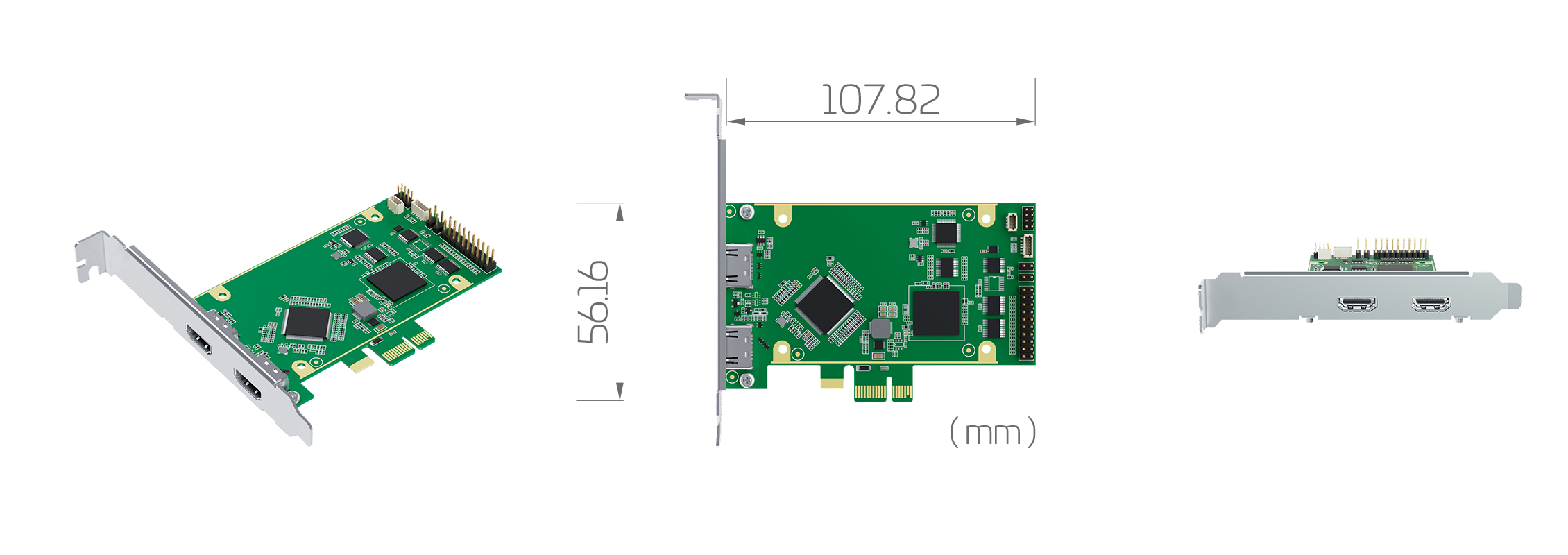

Dimension 107.82×56.16 ( mm )
PCIe Low Profile
Interface PCIe×1 ( Gen2 )
Feature Multi Instances
Multi Devices
Video Input Detail 1×HDMI
Video Output 1 × HDMI ( Loop-through )
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
Build-in Hardware Encode N/A
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions HDMI :
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

✻ More resolution supported by SDK
Audio Input HDMI Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO 16
WatchDog V
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
