SC710N4T HDMI2.0
4 CH 4K60 HDMI2.0
| Max. Input Resolution | 3840×2160p@60/50fps in |
| Video Input | 4×HDMI 2.0 |
| Dimension |

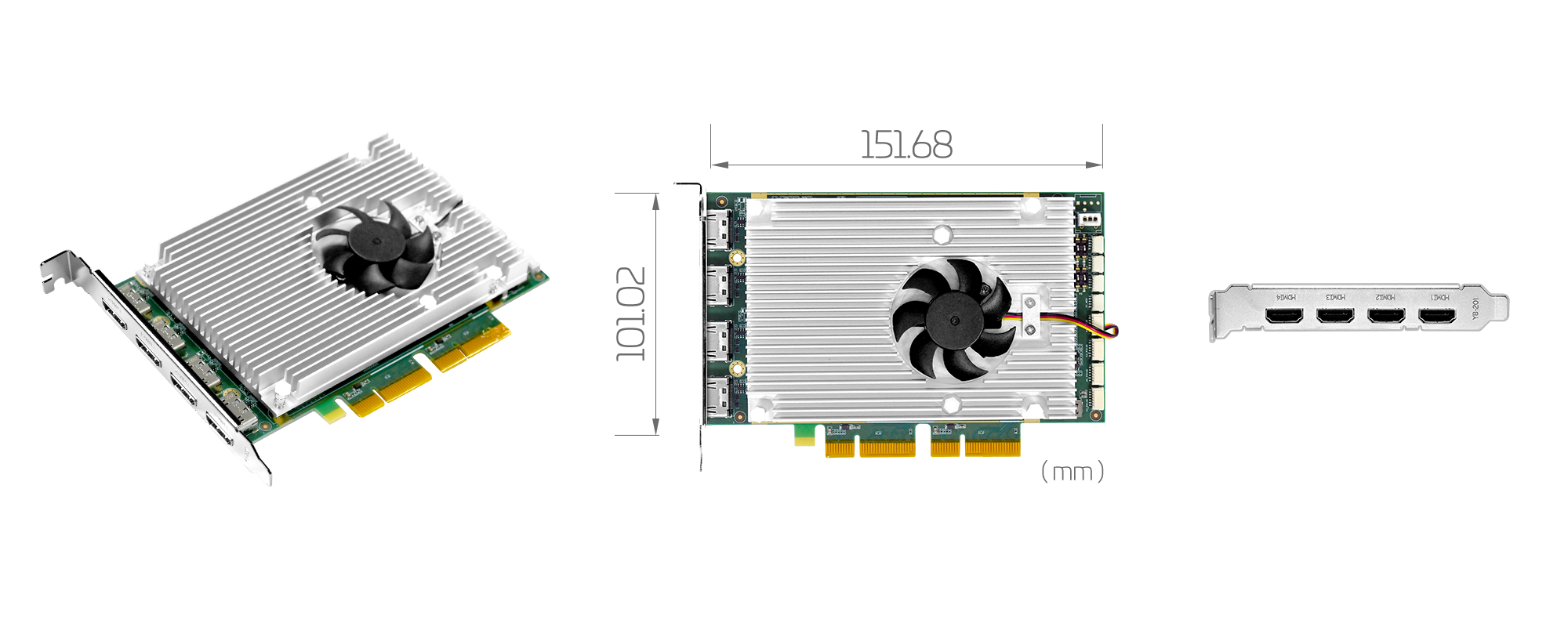

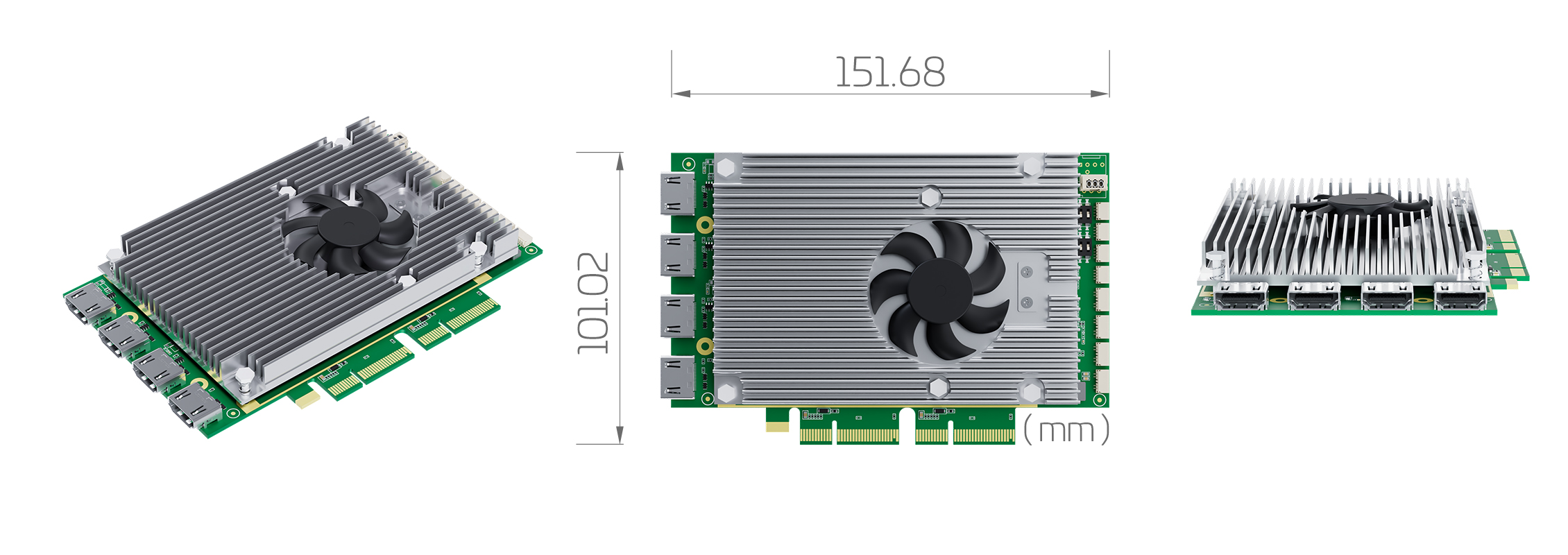

151.68×101.02 ( mm ) PCIe Full Height |
| Interface | PCIe×4 (Gen2) + PCIe×4 (Gen2) |
| Feature | N/A |
| Video Input Detail | N/A |
| Video Output | 3840×2160p@60/50fps out |
| Color Format | YV12, NV12, YUY2, RGB24, RGB32, V410, Y410, P010, P210 |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions |
HDMI 2.0 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720× 576p@50fps 720×480i@60fps 720×480i@60fps 720×576i@50fps720×576i@50fps |
| Audio Input | 4×HDMI Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32 bit and 64 bit ) |
