SC710N2 12G-SDI
2 CH 4K60 12G-SDI
| Max. Input Resolution | 4096×2160p@60/50fps |
| Video Input | 2×12G-SDI, 2×6G-SDI, 4×3G-SDI |
| Dimension |

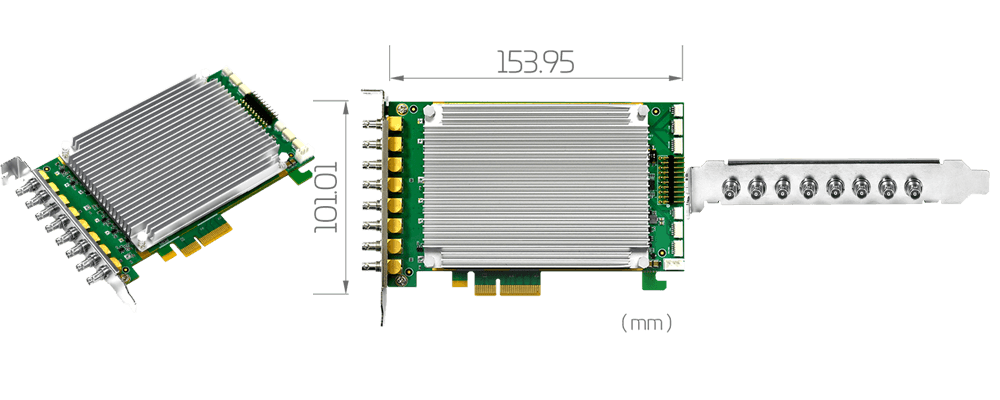

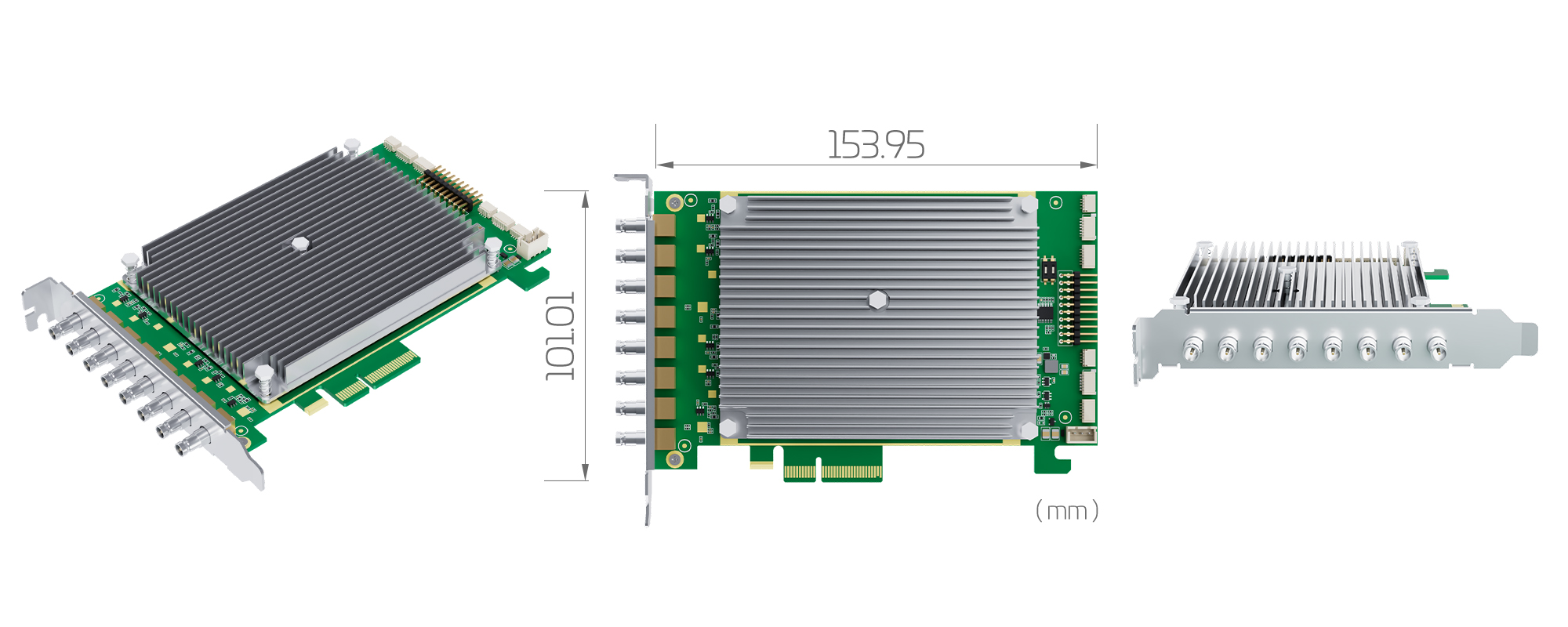

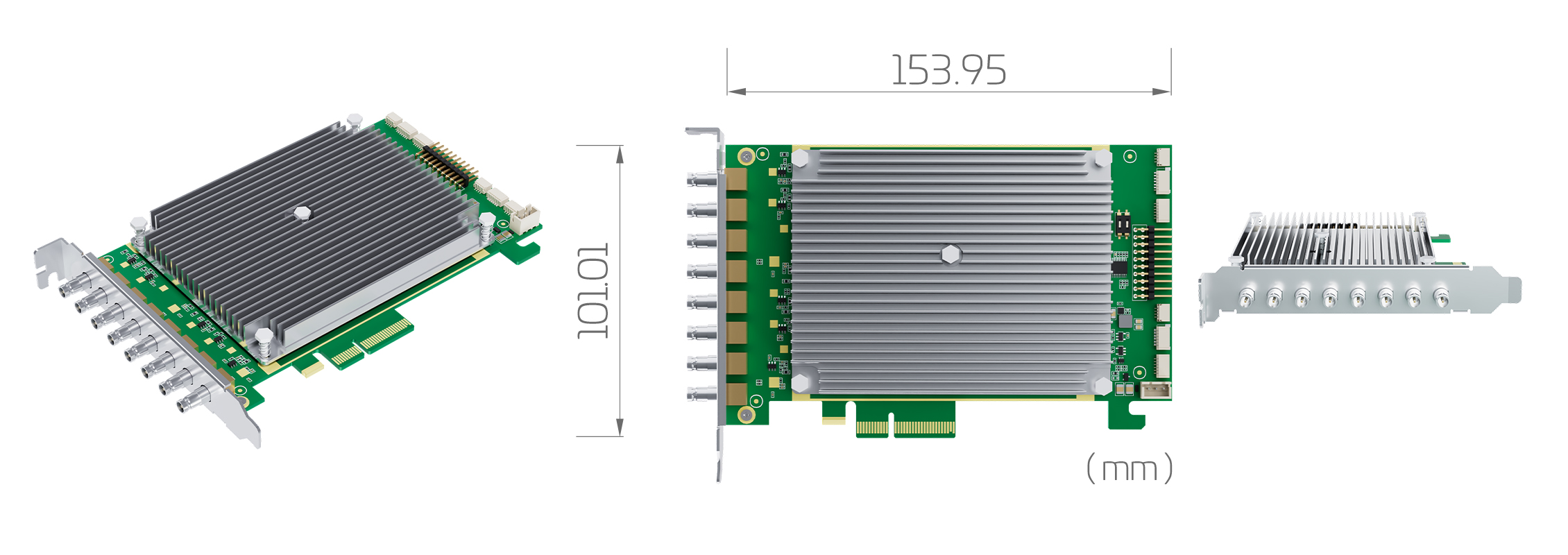

153.95×101.01 ( mm ) PCIe Full Height |
| Interface | PCIe×4 ( Gen2 ) |
| Feature |
8K30 Dual-Link 12G-SDI 8K30 Quad-Link 6G-SDI 12G-SDI Loop-Through Multi Instances Multi Devices |
| Video Input Detail |
Single-Link 12G-SDI Dual-Link 6G-SDI Quad-Link 2SI 3G-SDI Quad-Link QSD 3G-SDI |
| Video Output | N/A |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
Single Channel Mode : Single Link/Dual Link/Quad Link 2×12G-SDI : 4096×2160@60/50fps 3840×2160@60/50fps 2×6G-SDI : 4096×2160@30/25/24fps 3840×2160@30/25/24fps 2×3G-SDI : 1920×1080p@60/50fps 2×HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 2×SD-SDI : 720×480i@60fps 720×576i@50fps Multi Channel Mode : Single Link 4×6G-SDI : 4096×2160@30/25/24fps 3840×2160@30/25/24fps 8×3G-SDI : 1920×1080p@60/50fps 8×HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 8×SD-SDI : 720×480i@60fps 720×576i@50fps |
| Audio Input | 8×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
