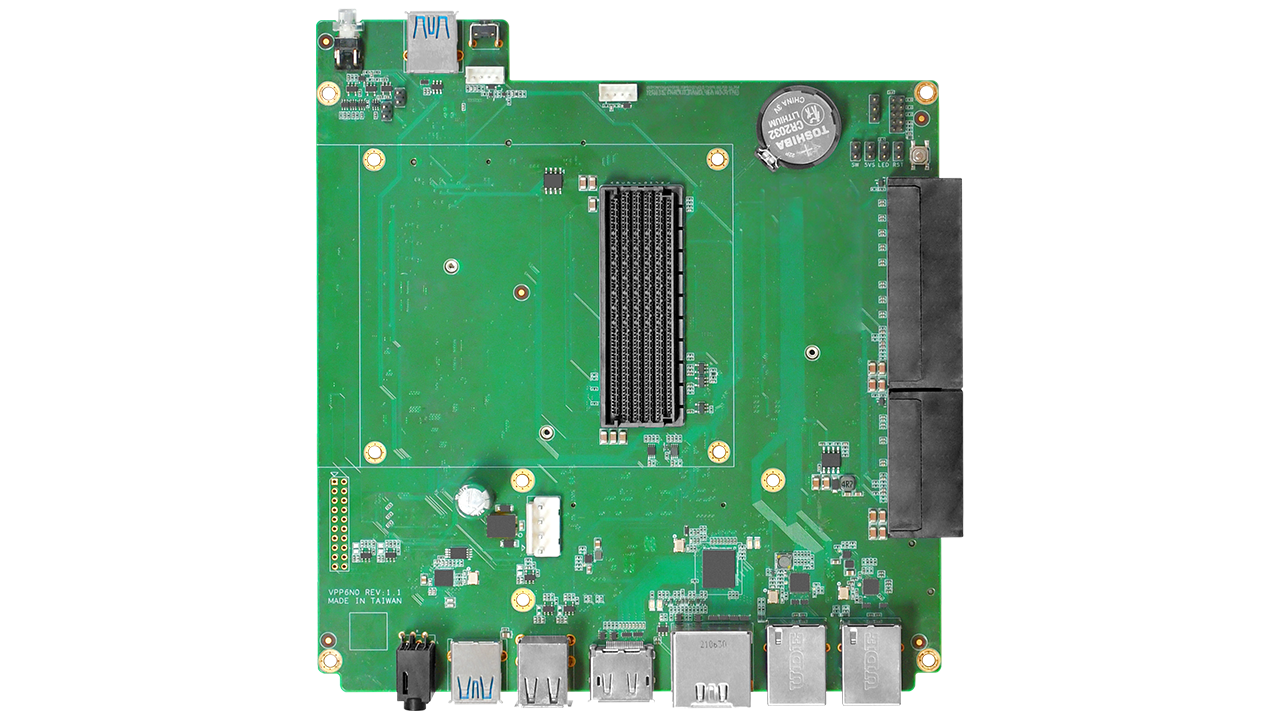

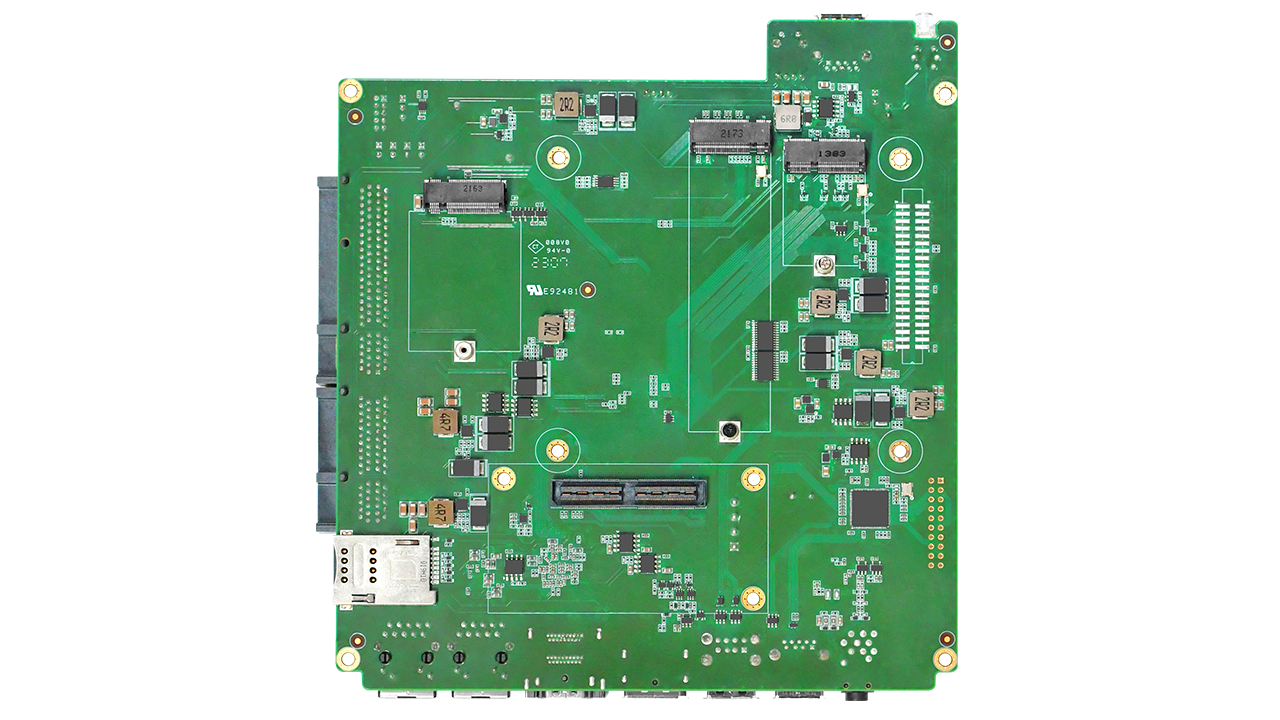

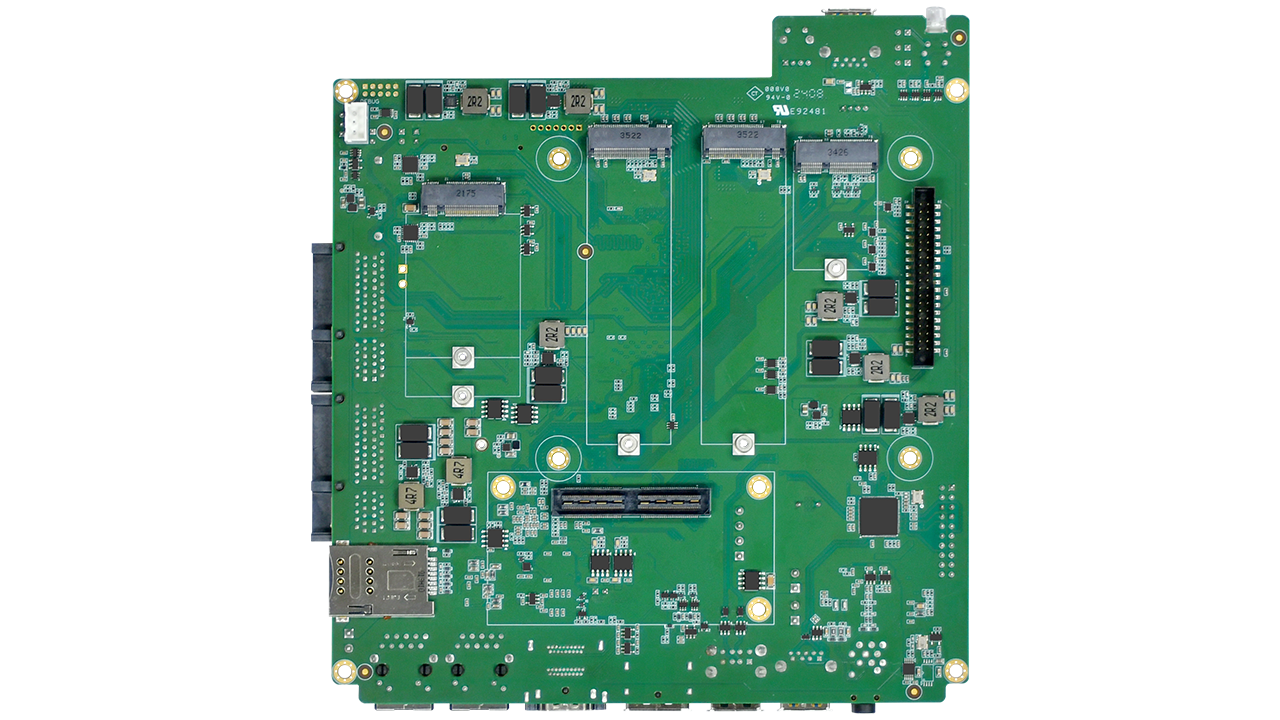

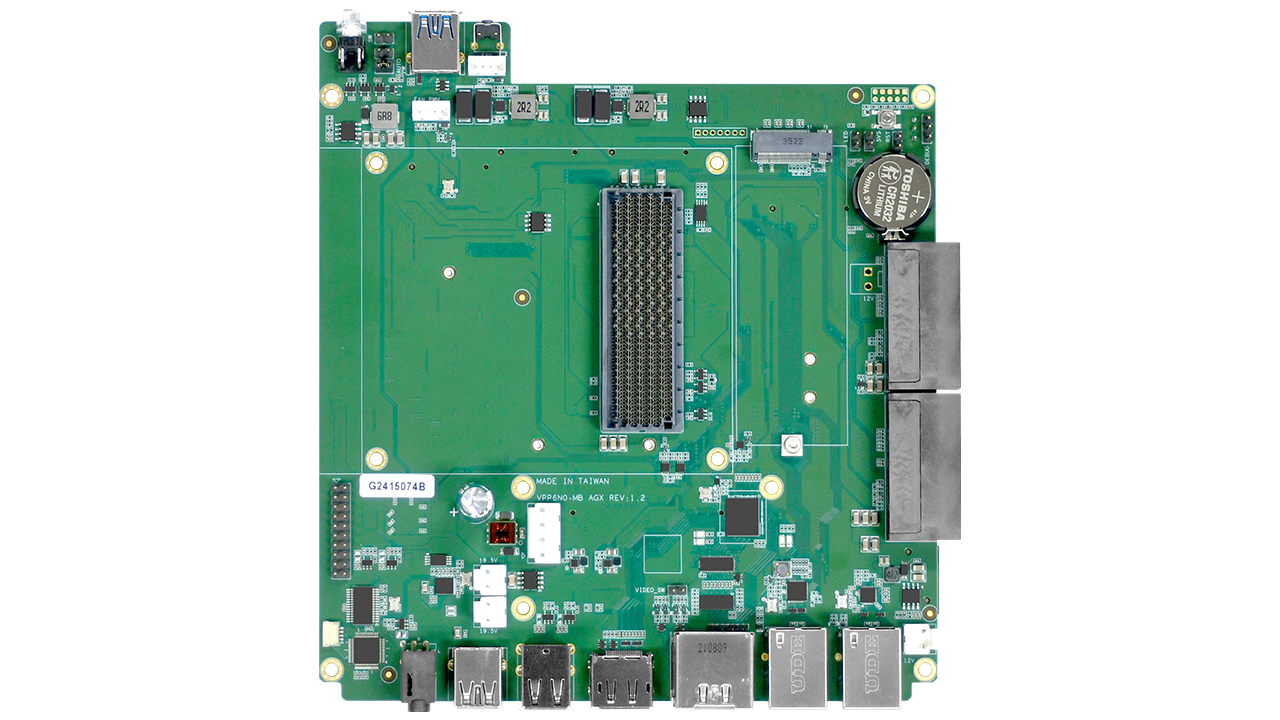

VPP6N0-MB AGX

Highly Integrated AI Server, Provide 275 TOPS and Expandability

Features

Up to 275 TOPS AI Performance
1×PCIe Gen3×8, 1×PCIe Gen3×4
1×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key
2×USB3.2 Gen2
CAN Bus / UART / I2C / SPI

Datasheet Get a quote

System
CPU	NVIDIA Jetson AGX Orin™ 32GB 8-core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 NVIDIA Jetson AGX Orin™ 64GB 12-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 3MB L2 + 6MB L3
GPU	NVIDIA Jetson AGX Orin™ 32GB 1792-Core NVIDIA Ampere Architecture GPU with 56 Tensor Cores NVIDIA Jetson AGX Orin™ 64GB 2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores
API Performance	NVIDIA Jetson AGX Orin™ 32GB 200 TOPS NVIDIA Jetson AGX Orin™ 64GB 275 TOPS
System Memory	NVIDIA Jetson AGX Orin™ 32GB 32GB LPDDR5 NVIDIA Jetson AGX Orin™ 64GB 64GB LPDDR5
Interface
Storage	64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)
Display Interface	2×HDMI2.0 1×DP **Select 2 Video Output Port at Same Time
Ethernet	2×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	PCIe 1×PCIe Gen3×4 Slot 1×PCIe Gen3×8 Slot M.2 1×M.2 2230 E Key PCIe Gen3×1/USB2.0/SDIO Slot 1×M.2 2280 M Key PCIe Gen3×4 Slot 1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot
USB	2×USB3.2 Gen2 ( Type-A ) 1×USB3.2 Gen1 ( Pin Header ) 1×USB3.2 Gen1 ( Pin Header, Without USB2.0 ) 2×USB2.0 ( Type-A )
MIPI	16×MIPI CSI-2 Lanes ( D-PHY 2.1, 4×4 \| 3×4+2×2 \| 2×4+4×2 \| 1×4+5×2 \| 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )
Audio	1×3.5mm Line In 1×3.5mm Line Out
Peripherals	1×UART ( Pin Header ) 3×GPIO ( Pin Header ) 2×CAN Bus ( Pin Header ) 2×I2C ( Pin Header ) 1×SPI ( Pin Header )
Misc. Features	Firmware Upgradable AutoPower ( Pin Header )

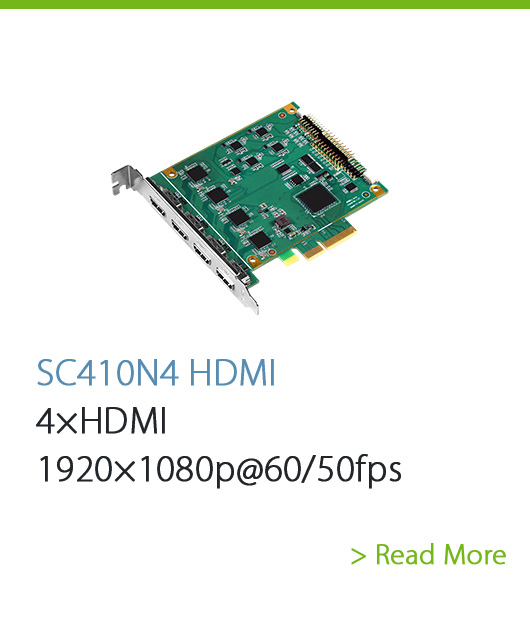

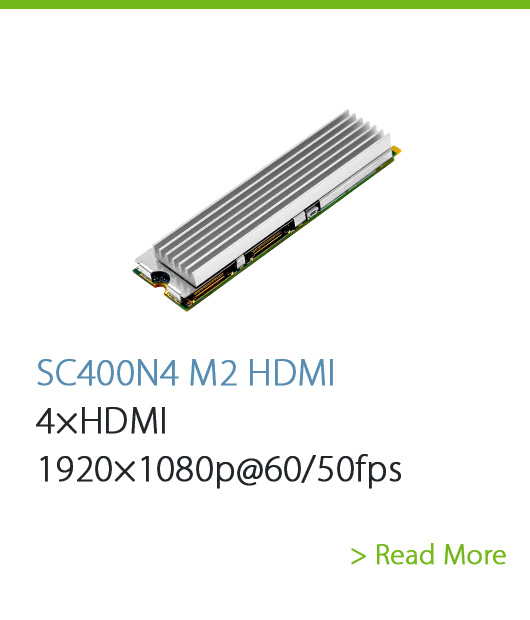

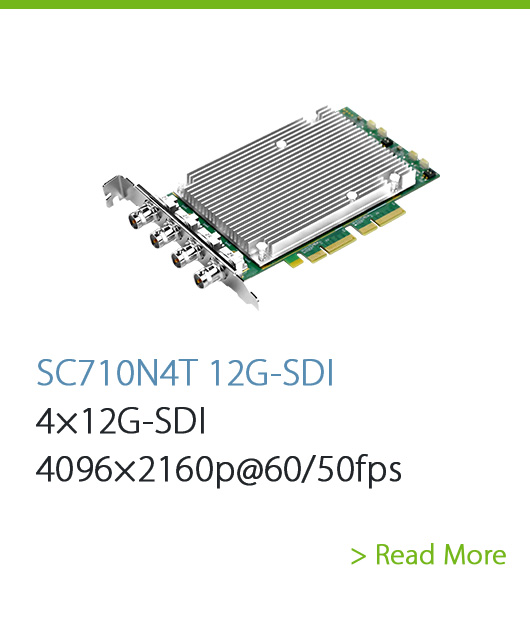

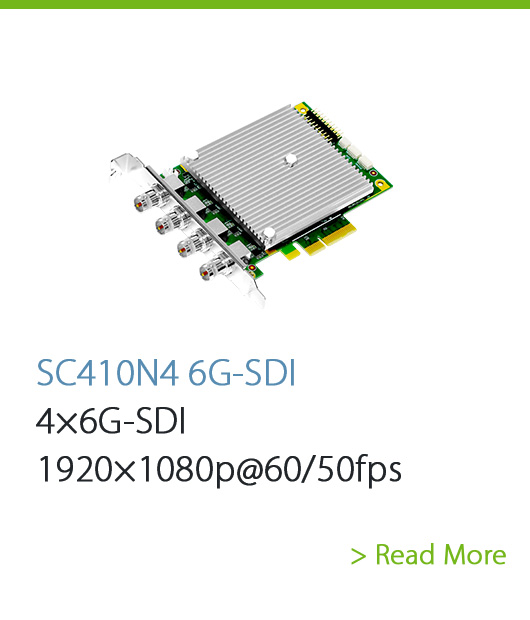

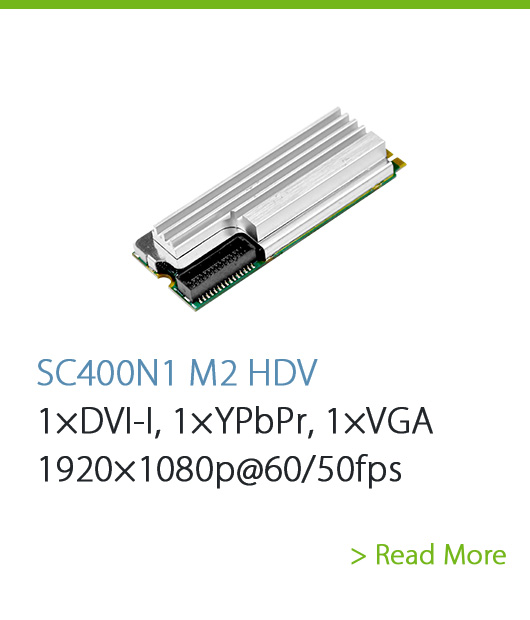

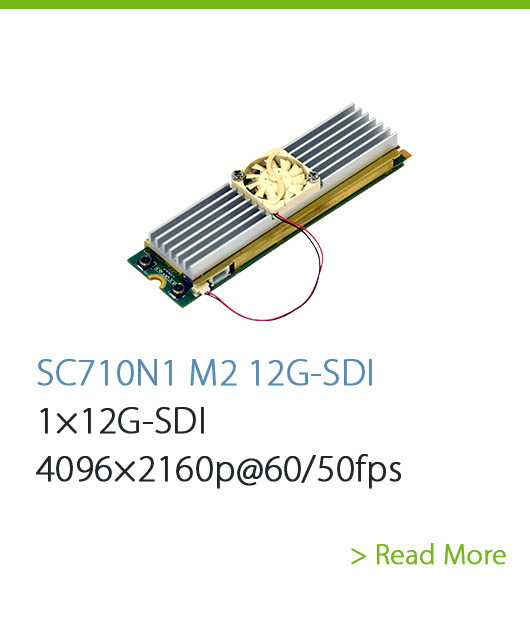

Capture Card Suggestion
