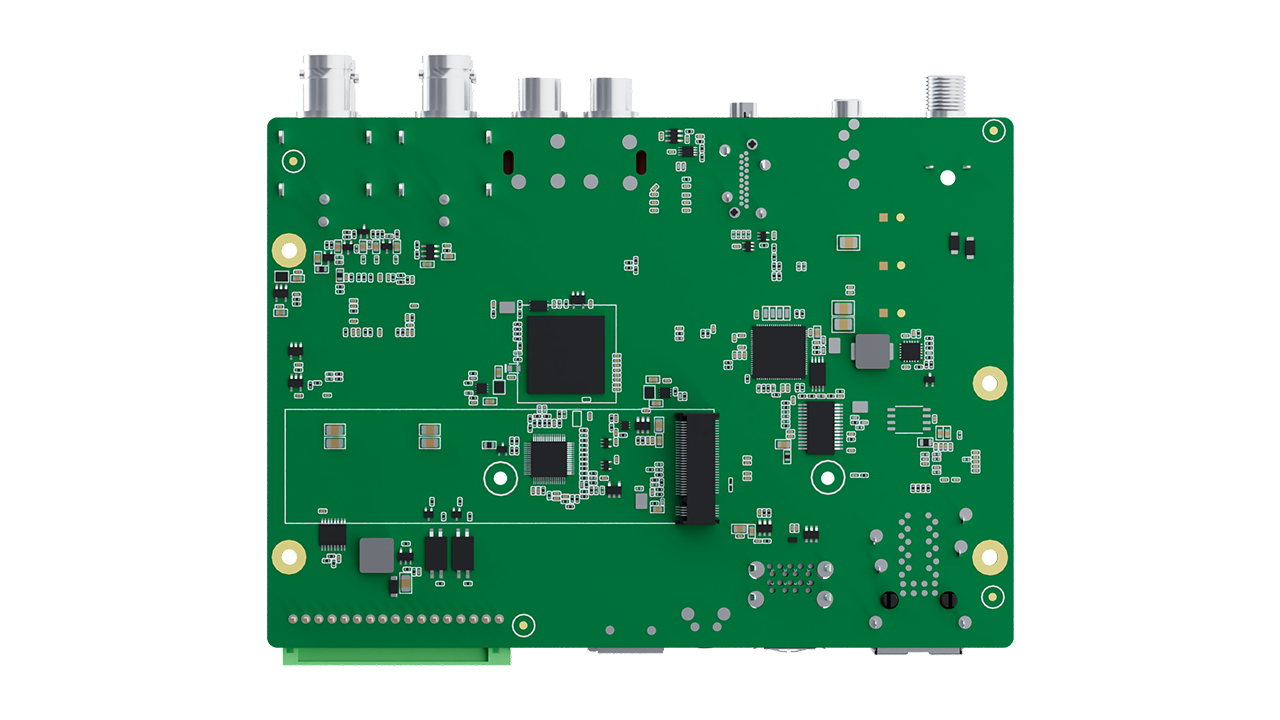

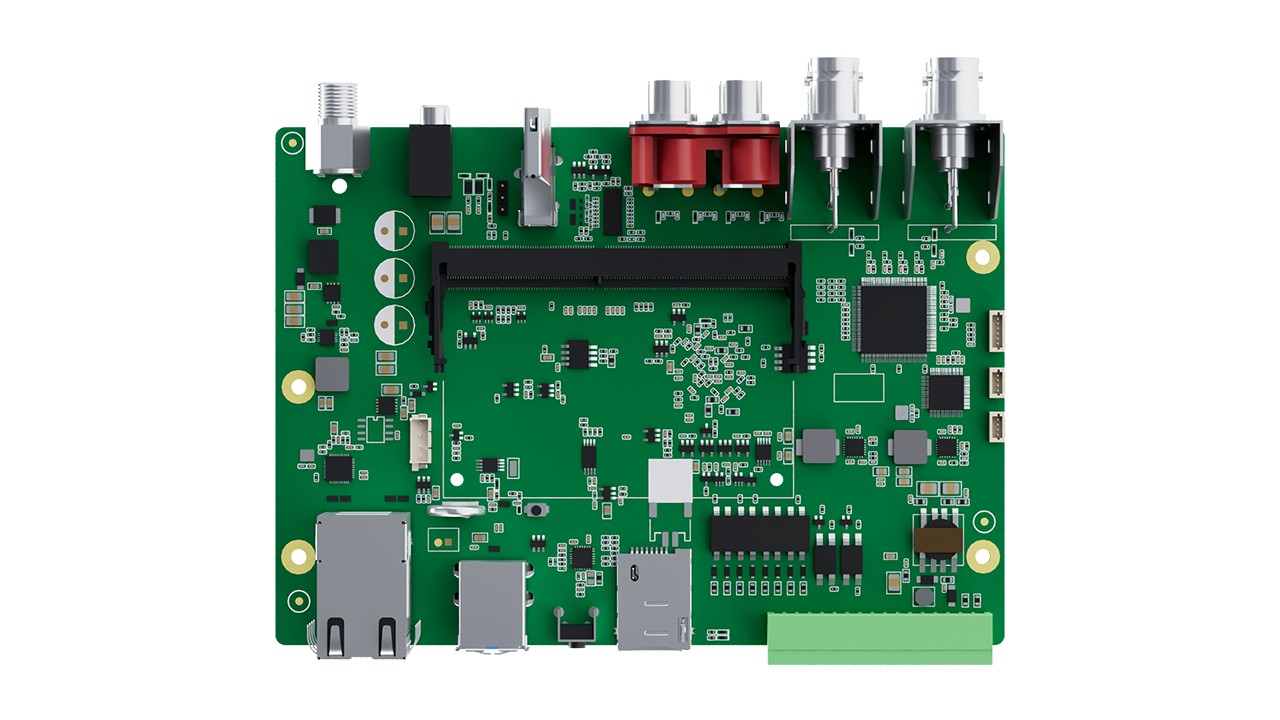

EDG6N0-C-W ONX 4TVI DIO
Card Size AI Edge with Multi AIoT Expansion
Features
- Powered by NVIDIA® Jetson Orin™ NX Super up to 157 / 117 TOPS
- 4×TVI In
- 1×M.2, Gen 4×2 M Key
- 2×USB3.2 Gen2
- 1×HDMI2.0
| System | |
|---|---|
| SOM | NVIDIA Jetson Orin™ NX 16GB Super NVIDIA Jetson Orin™ NX 8GB Super NVIDIA Jetson Orin™ Nano 8GB Super NVIDIA Jetson Orin™ Nano 4GB Super |
| CPU | 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores 1024-core NVIDIA Ampere Architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores |
| API Performance | Up to 157 / 117 / 67 / 34 TOPS |
| System Memory |
16GB 128-bit LPDDR5 8GB 128-bit LPDDR5 8GB 128-bit LPDDR5 4GB 64-bit LPDDR5 |
| Interface | |
| Storage | Supports External NVMe 1×Micro SD Card Slot |
| Display Interface | 1×HDMI2.0 ( Up to 4K60 ) |
| Ethernet | 2×RJ45 for 10 / 100 / 1000Mbps Ethernet ( DHCP Client ) |
| Expansion Slot | 1×M.2 2280 M Key PCIe Gen4×2 Slot ( Nano: Gen3×2 ) |
| USB | 2×USB3.2 Gen2 ( Type-A ) |
| Peripheral Communication |
17 Pin DIO Phoenix Connector 1×RS485 4×Digital In 4×Digital Out 2×GND 2×24V |
| Misc. Features | Firmware Upgradable |
| Key Points | |
| Input | 4×TVI |
| Video Feature | |
| Video Encode |
AV1 ( UHP ) H.265 ( UHP ) H.264 ( UHP ) 1080p30 supported by 1-2 CPU cores |
| Video Decode |
AV1 ( Main Profile ) H.265 ( Main, Main10 ) H.264 ( Baseline, Main, High ) VP9 ( Profile 0, Profile 2 ) AV1 ( Main Profile ) H.265 ( Main, Main10 ) H.264 ( Baseline, Main, High ) VP9 ( Profile 0, Profile 2 ) |
