VPP6N0-S-MB NANO
Entry Edge AI
Features
- Up to 40 TOPS AI Performance
- 3×M2 M Key, Gen 3×4 / Gen 3×2 / Gen 3×1
- USB3.2 Gen2
- RS232 / RS485 / I2C
| System | |
|---|---|
|
CPU |
NVIDIA Jetson Orin™ Nano 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
GPU |
NVIDIA Jetson Orin™ Nano 4GB NVIDIA Jetson Orin™ Nano 8GB |
|
API Performance |
NVIDIA Jetson Orin™ Nano 4GB 20 TOPS NVIDIA Jetson Orin™ Nano 8GB 40 TOPS |
|
System Memory |
NVIDIA Jetson Orin™ Nano 4GB 4GB LPDDR5 NVIDIA Jetson Orin™ Nano 8GB 8GB LPDDR5 |
| Interface | |
| Storage | Supports External NVMe |
| Display Interface |
2×HDMI2.0 ( 1×4K30 | 2×1080P60 ) |
|
Ethernet |
1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
|
Expansion Slot |
M.2 1×M.2 2280/3080 M Key PCIe Gen3×4 Slot 1×M.2 2280 M Key PCIe Gen3×2 Slot 1×M.2 2280 M Key PCIe Gen3×1 Slot |
|
USB |
4×USB3.2 Gen2 ( Type-A ) 1×USB3.2 Gen1 ( Pin Header ) 1×USB3.2 Gen1 ( Pin Header, Contains USB3.0 Signal Only) |
|
MIPI |
8×MIPI CSI-2 Lanes ( D-PHY 2.1, 2×4 | 4×2 | 1×4+2×2 MIPI Lanes, Support MIPI Camera, Capture Card ) |
|
Audio |
1×Line In ( 3.5mm or Pin Header ) 1×Line Out ( 3.5mm or Pin Header ) |
| Peripherals |
1×RS232 ( Phoenix Connector or Pin Header ) 1×RS485 ( Phoenix Connector or Pin Header ) 4×GPIO ( Pin Header ) 3×I2C ( Pin Header ) |
|
Misc. Features |
Firmware Upgradable AutoPower ( Pin Header ) |

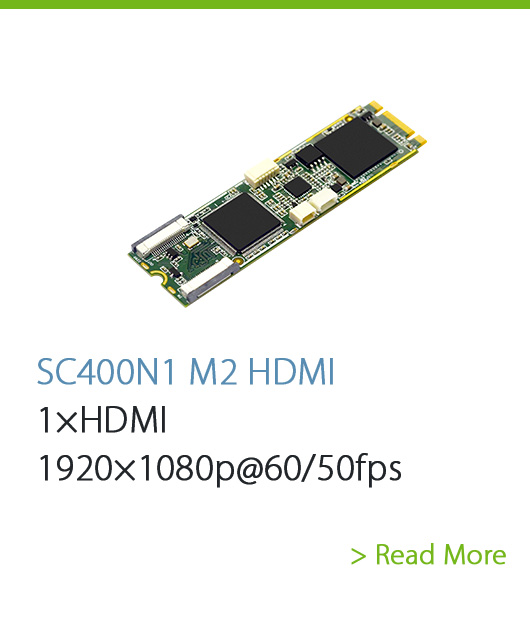

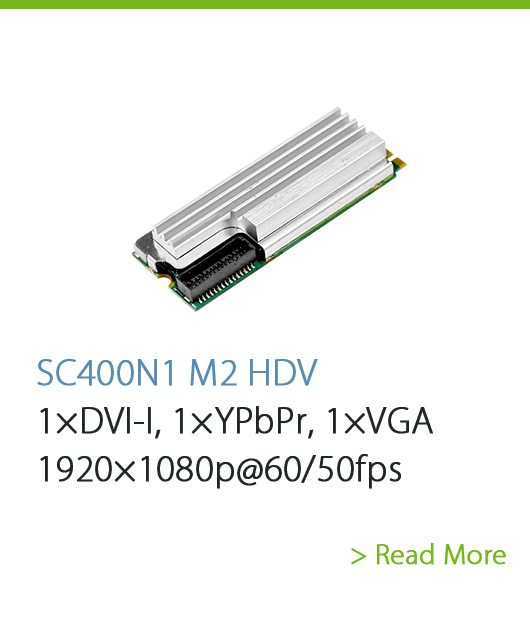

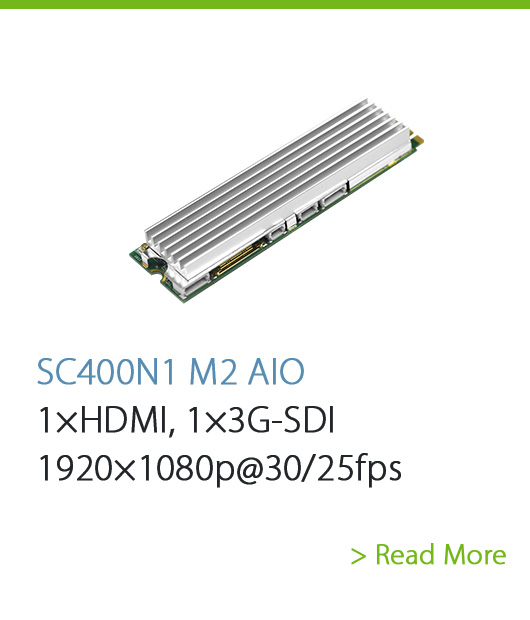

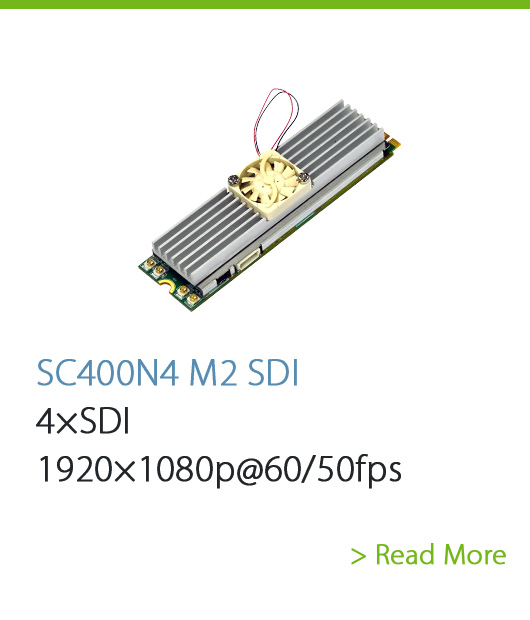

| Capture Card Suggestion |
|---|
