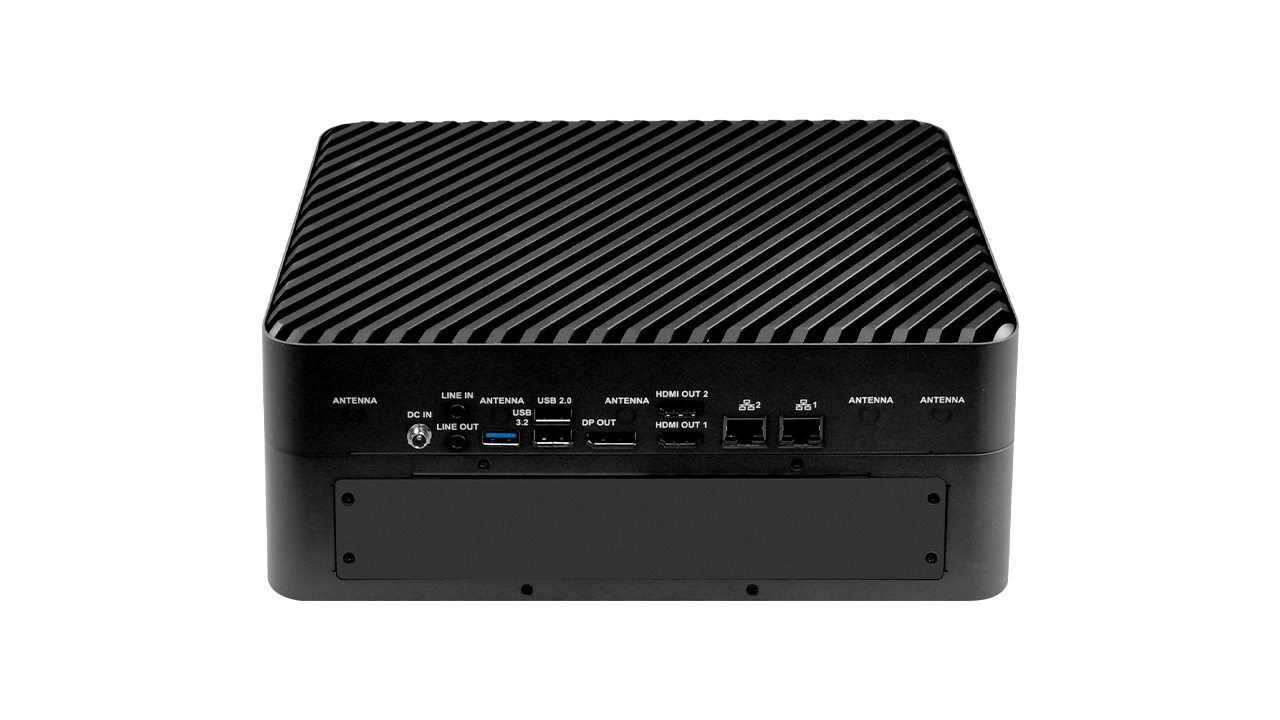

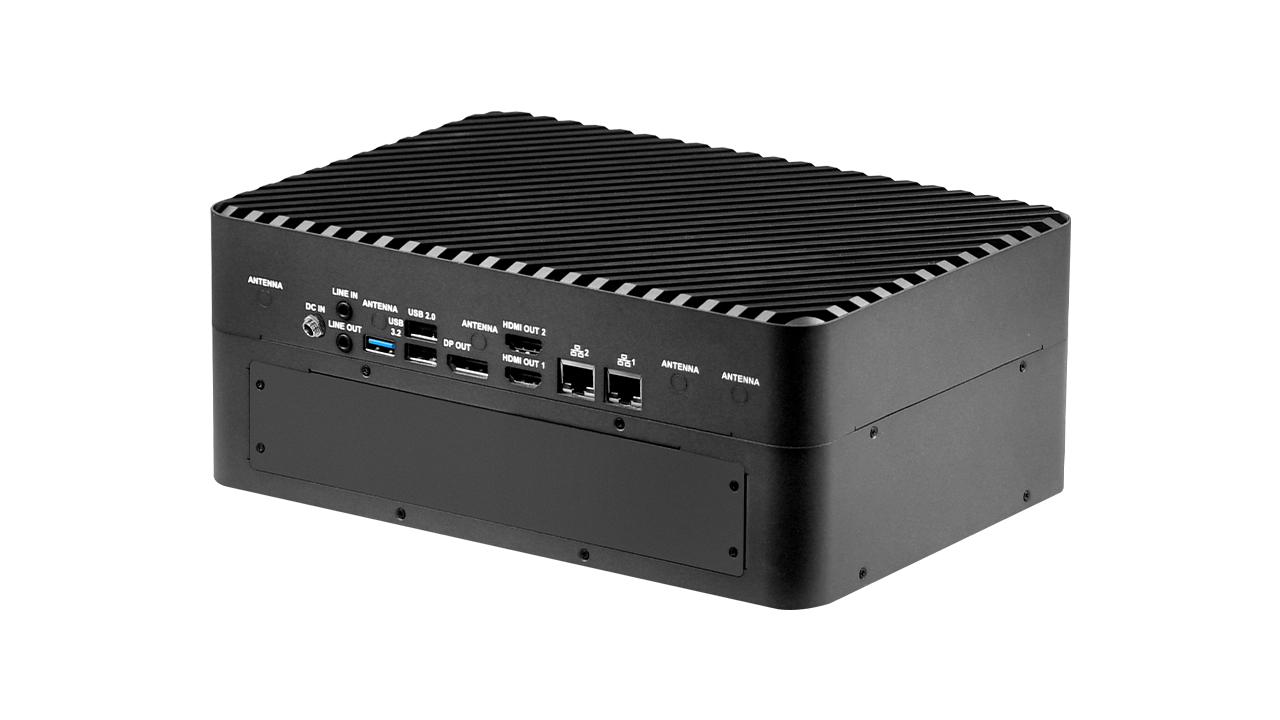

VPP6N0-S AGX

Highly Integrated AI Server, Provide 275 TOPS and Expandability

Features

  • Powered by NVIDIA® Jetson AGX Orin™ up to 275 TOPS
  • 2×PCIe Gen3×4
  • 3×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key
  • Fanless Design
  • 2×USB3.2 Gen2
  • CAN Bus / UART / I2C / SPI



Datasheet Get a quote
System
CPU NVIDIA Jetson AGX Orin™ 32GB
8-core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3


NVIDIA Jetson AGX Orin™ 64GB
12-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
3MB L2 + 6MB L3
GPU NVIDIA Jetson AGX Orin™ 32GB
1792-Core NVIDIA Ampere Architecture GPU with 56 Tensor Cores


NVIDIA Jetson AGX Orin™ 64GB
2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores
API Performance NVIDIA Jetson AGX Orin™ 32GB
200 TOPS


NVIDIA Jetson AGX Orin™ 64GB
275 TOPS
System Memory NVIDIA Jetson AGX Orin™ 32GB
32GB LPDDR5


NVIDIA Jetson AGX Orin™ 64GB
64GB LPDDR5
Interface
Storage 64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)
Display Interface 2×HDMI2.0
1×DP
*Select 2 Video Output Port at Same Time
Ethernet 2×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client

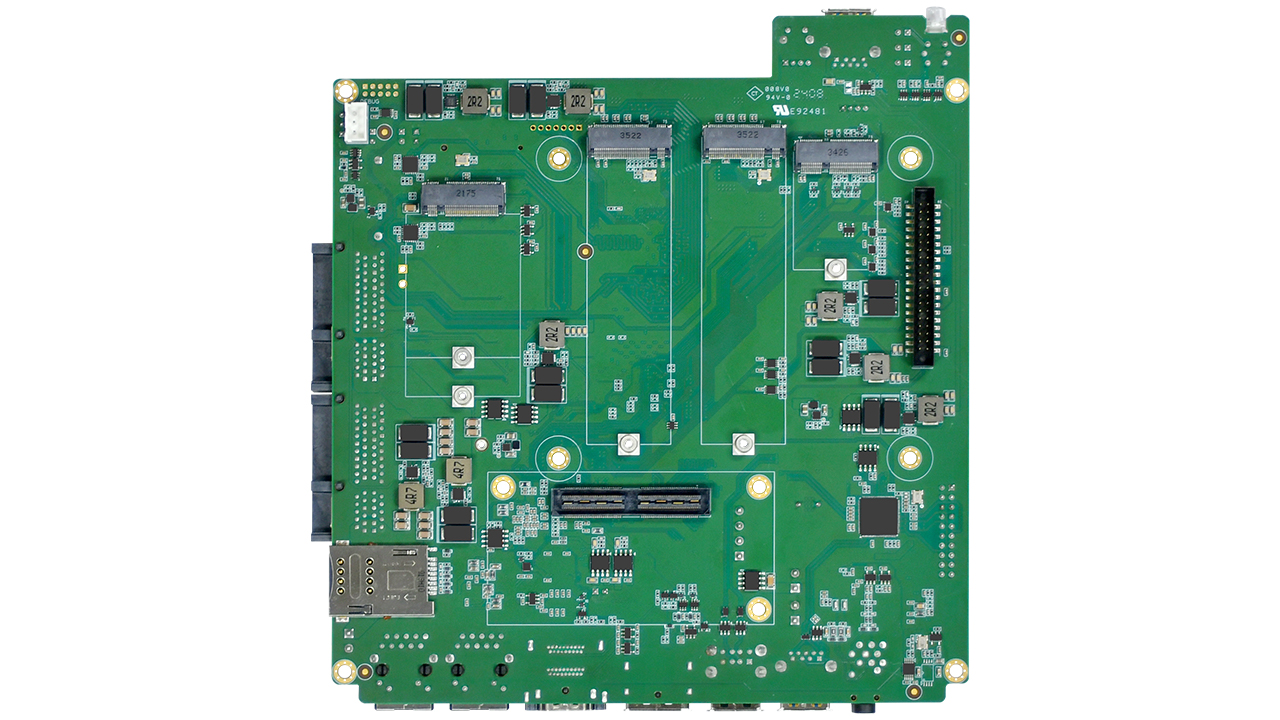

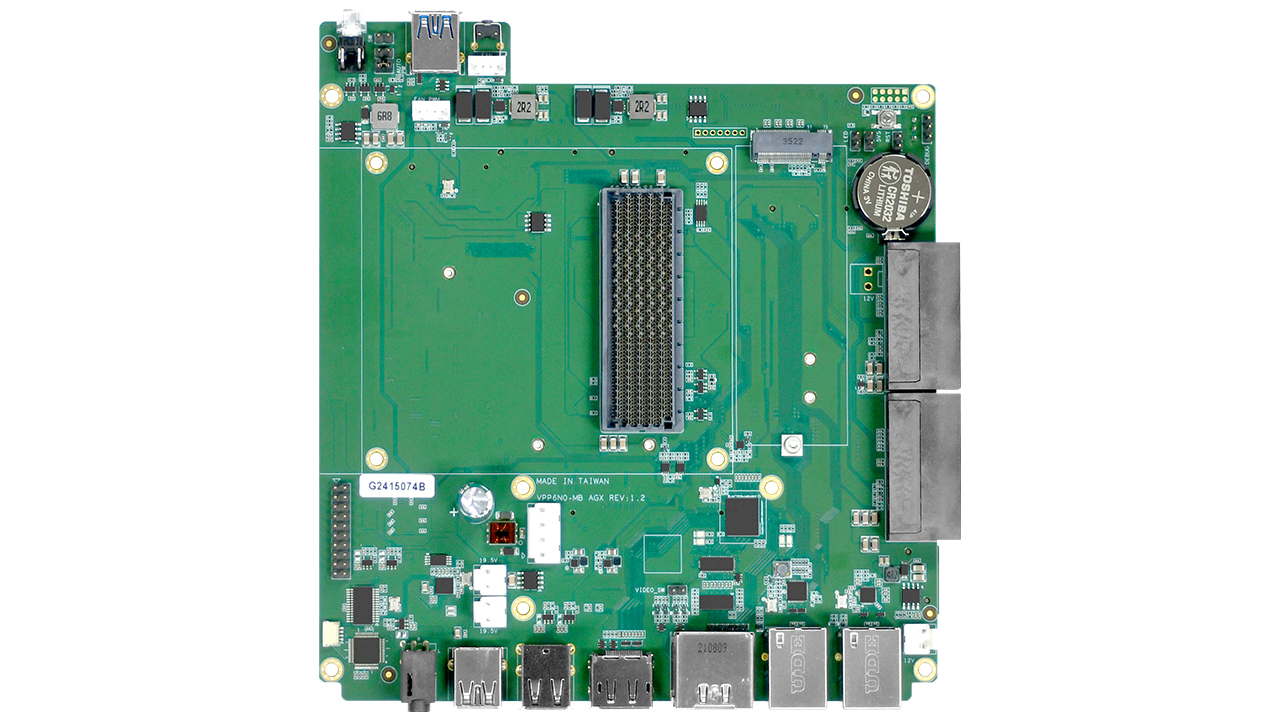

Expansion Slot PCIe
1×PCIe Gen3×4 Slot(*)
1×PCIe Gen3×4 Slot(**)
M.2
1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot
1×M.2 2280 M Key PCIe Gen4×4 Slot
1×M.2 2280 M Key PCIe Gen4×4 Slot(*)
1×M.2 3080 M Key PCIe Gen4×4 Slot(**)
1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot
* Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use
** Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use
USB 2×USB3.2 Gen2 ( Type-A )
2×USB3.2 Gen1 ( Pin Header )
2×USB2.0 ( Type-A )
MIPI 16×MIPI CSI-2 Lanes ( D-PHY 2.1, 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )
Audio 1×3.5mm Line In
1×3.5mm Line Out
Perherial
Communication		 1×UART ( Pin Header )
3×GPIO ( Pin Header )
2×CAN Bus ( Pin Header )
2×I2C ( Pin Header )
1×I2S ( Pin Header )
1×SPI ( Pin Header )
3×PWM ( Pin Header )
Audio Firmware Upgradable
AutoPower ( Pin Header )
