VPP6N0-S NX

Compact & Fan-less Edge AI Platform

Features

  • Up to 100 TOPS AI Performance
  • 3×M2 M Key, Gen 4×4 / Gen 4×2 / Gen 4×1
  • Fanless Design
  • 4×USB3.2 Gen2
  • RS232 / RS485 / I2C



System

CPU

NVIDIA® Jetson Orin™ NX 8GB

6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU

1.5MB L2 + 4MB L3


NVIDIA® Jetson Orin™ NX 16GB

8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU

2MB L2 + 4MB L3

GPU

1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores

AI Performance

NVIDIA® Jetson Orin™ NX 8GB

70 TOPS


NVIDIA® Jetson Orin™ NX 16GB

100 TOPS

System Memory

NVIDIA® Jetson Orin™ NX 8GB

8GB LPDDR5


NVIDIA® Jetson Orin™ NX 16GB

16GB LPDDR5

Interface
Storage Supports External NVMe
Display Interface 2×HDMI2.0

Ethernet

1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client

Expansion Slot

M.2

1×M.2 2280/3080 M Key PCIe Gen4×4 Slot

1×M.2 2280 M Key PCIe Gen4×2 Slot

1×M.2 2280 M Key PCIe Gen4×1 Slot

USB

4×USB3.2 Gen2 ( Type-A )
2×USB3.2 Gen1 ( Pin Header )

MIPI

2×4MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )

Audio

1×Line In ( 3.5mm or Pin Header )

1×Line Out ( 3.5mm or Pin Header )

Peripherals

1×RS232 ( Phoenix Connector or Pin Header )

1×RS485 ( Phoenix Connector or Pin Header )

4×GPIO ( Pin Header )

3×I2C ( Pin Header )

Misc. Features

Firmware Upgradable
AutoPower ( Pin Header )

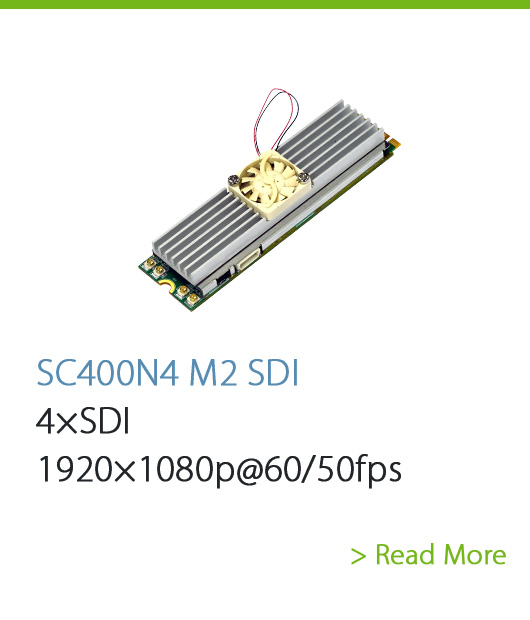

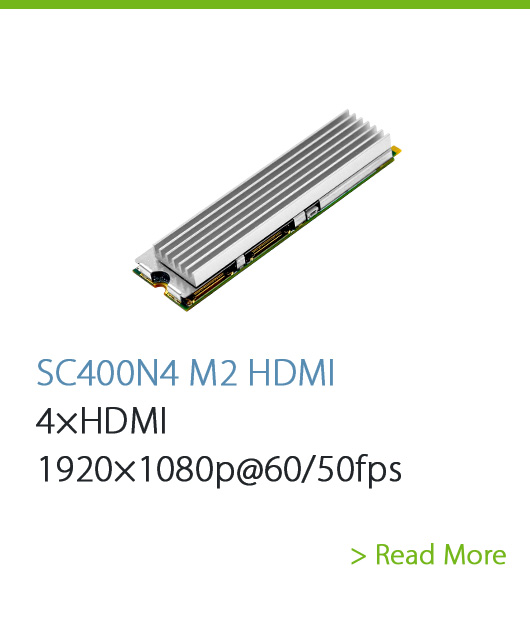

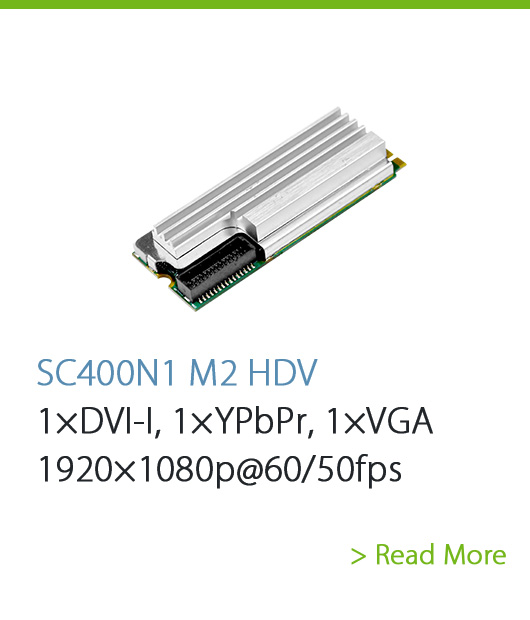

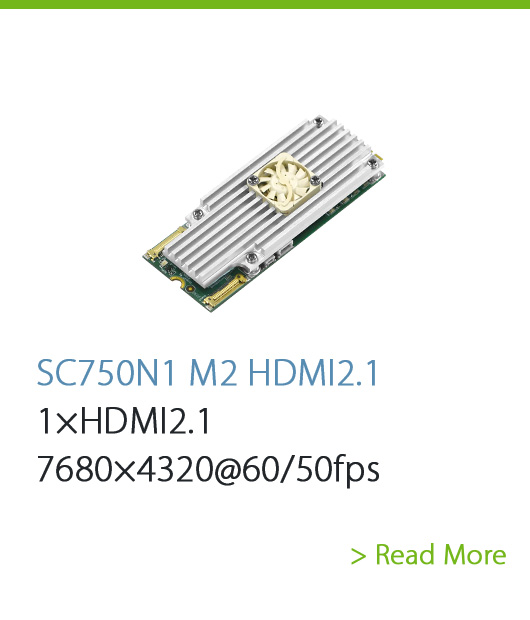

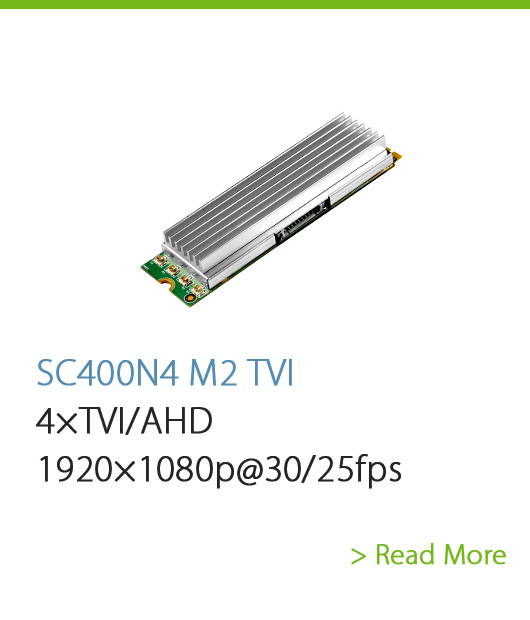

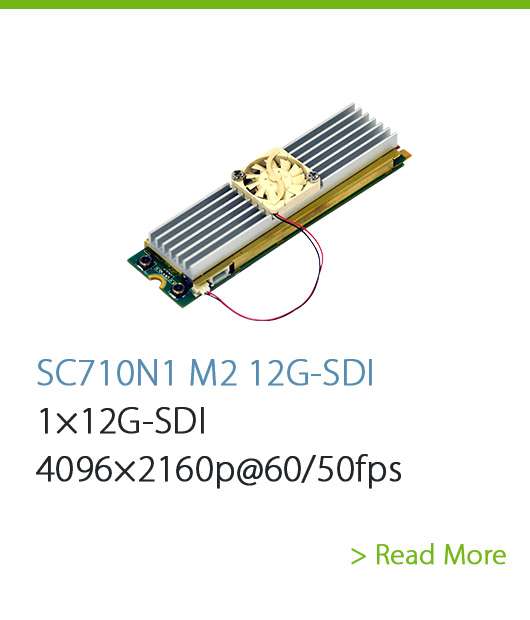

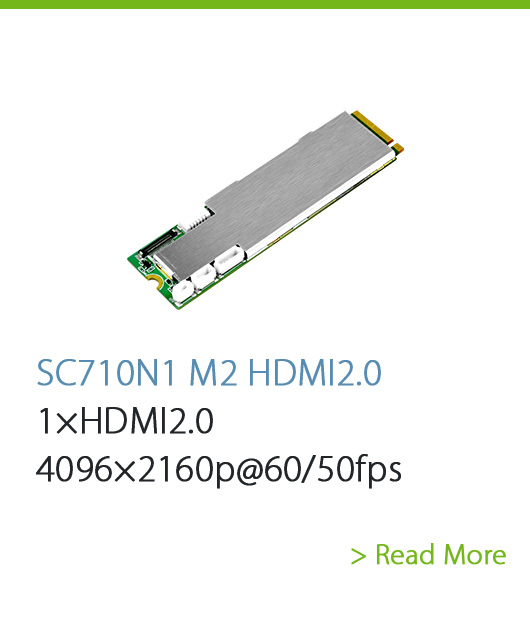

Capture Card Suggestion
