SC440N4 MP GMSL2
4 CH 1080P60 GMSL2
| Max. Input Resolution | 1920×1080p@60/45/30fps in → 1920×1080p@60/45/30fps out |
| Video Input | 4×GMSL2 |

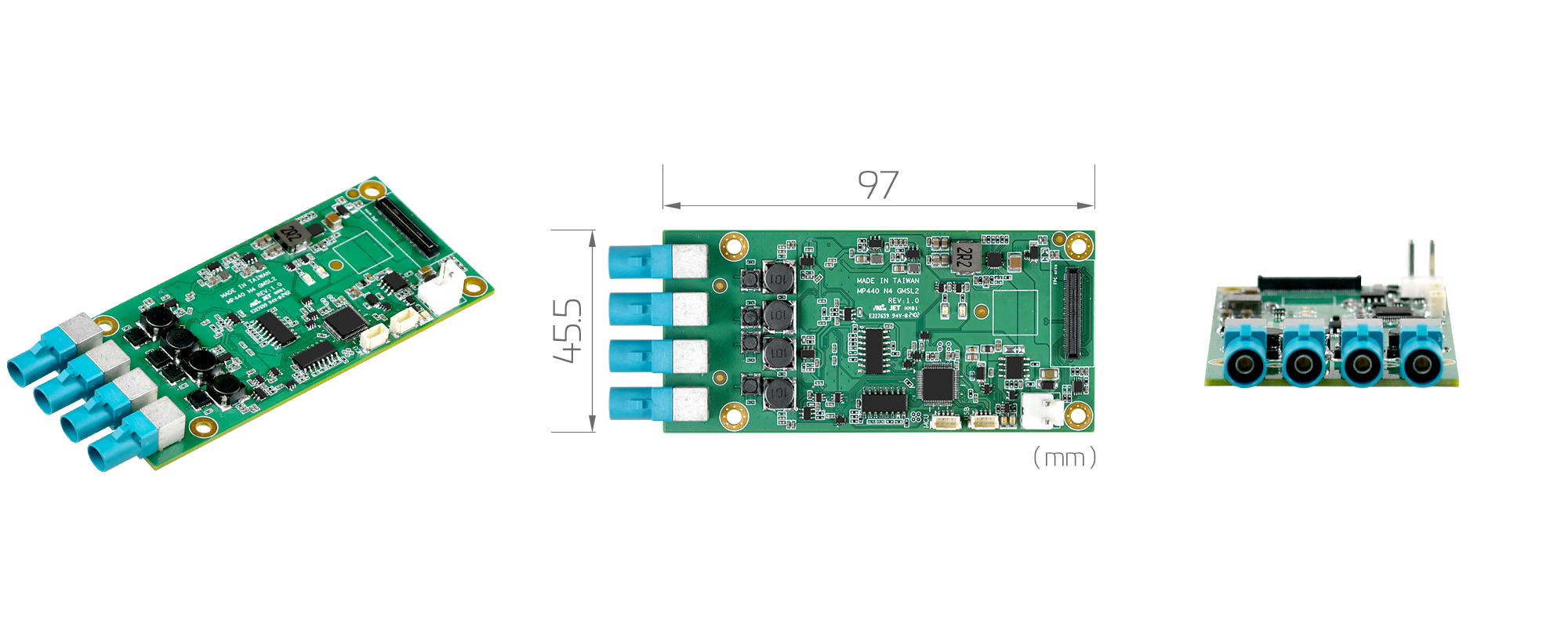

| Dimension | 97×45.5 ( mm ) |
| Interface | MIPI CSI-2, 4CH, 2 /4 Data Lanes |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 4×GMSL2 |
| Video Output | N/A |
| Color Format | YUV422 |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions |
GMSL2 1920×1080p@60/45/30fps |
| Audio Input | N/A |
| Audio Format | N/A |
| GPIO | N/A |
| WatchDog | N/A |
| SDK | Support API : V4L2, Gstreamer |
| Platform Support |
JETSON AGX ORIN JETSON XAVIER AGX |
| Support Camera |
NileCAM25 ( 1080P60 ) STURDeCAM20 ( 1080P30 ) |
