SC440N2 MP GMSL2
2 CH 4K30 GMSL2
| Max. Input Resolution |
3840×2160@30fps in → 3840×2160@30fps out 1920×1080p@60/45/30fps in → 1920×1080p@60/45/30fps out |
| Video Input | 2×GMSL2 |

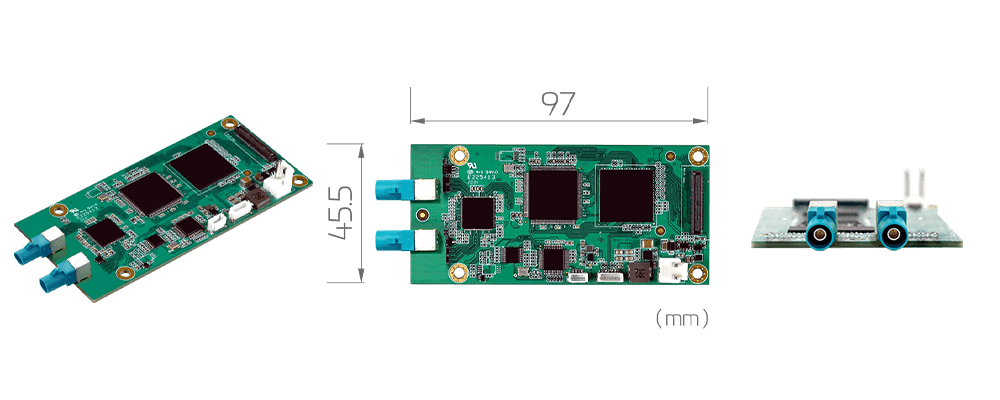

| Dimension | 97×45.5 ( mm ) |
| Interface | MIPI CSI-2, 2CH, 1/2/4 Data Lanes |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 2×GMSL2 |
| Video Output | N/A |
| Color Format | YUV422 |
| Build-in Hardware Encode | H.264 ( Software Compression ) |
| Video Processing | N/A |
| Video Resolutions |
GMSL2 3840×2160@30fps 1920×1080p@60/45/30fps |
| Audio Input | N/A |
| Audio Format | N/A |
| GPIO | N/A |
| WatchDog | N/A |
| SDK | Support API : V4L2, Gstreamer |
| Platform Support |
JETSON AGX ORIN JETSON XAVIER AGX |
| Support Camera |
NileCAM25 ( 1080P60 ) STURDeCAM20 ( 1080P30 ) |
