Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge
Dual 4K60 Video for Holoscan Platform
| Model Name | Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge |
| Feature |
．Powered by NVIDIA™ Holoscan ．Dual HDMI2.0 or 12G-SDI In ．Input Resolution up to 4K60 ．2×SFP+ Fiber Cage ．Long Distance Transfer with Ultra Low Latency ．Holoscan Sensor Bridge |
| Input Interface |
2×HDMI2.0 2×12G-SDI |
| Output Interface | 2×Holoscan Sensor Bridge ( SFP+ Fiber Cage ) |
| Supported Video Input Format |
HDMI2.0 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps SDI 12G-SDI 3840×2160p@60/50fps 6G-SDI 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1280×720p@60/50fps |
| Supported Video Output Format |
Holoscan Sensor Bridge ( SFP+ Fiber Cage ) As Input Format |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | N/A |
| DC In | 12V |

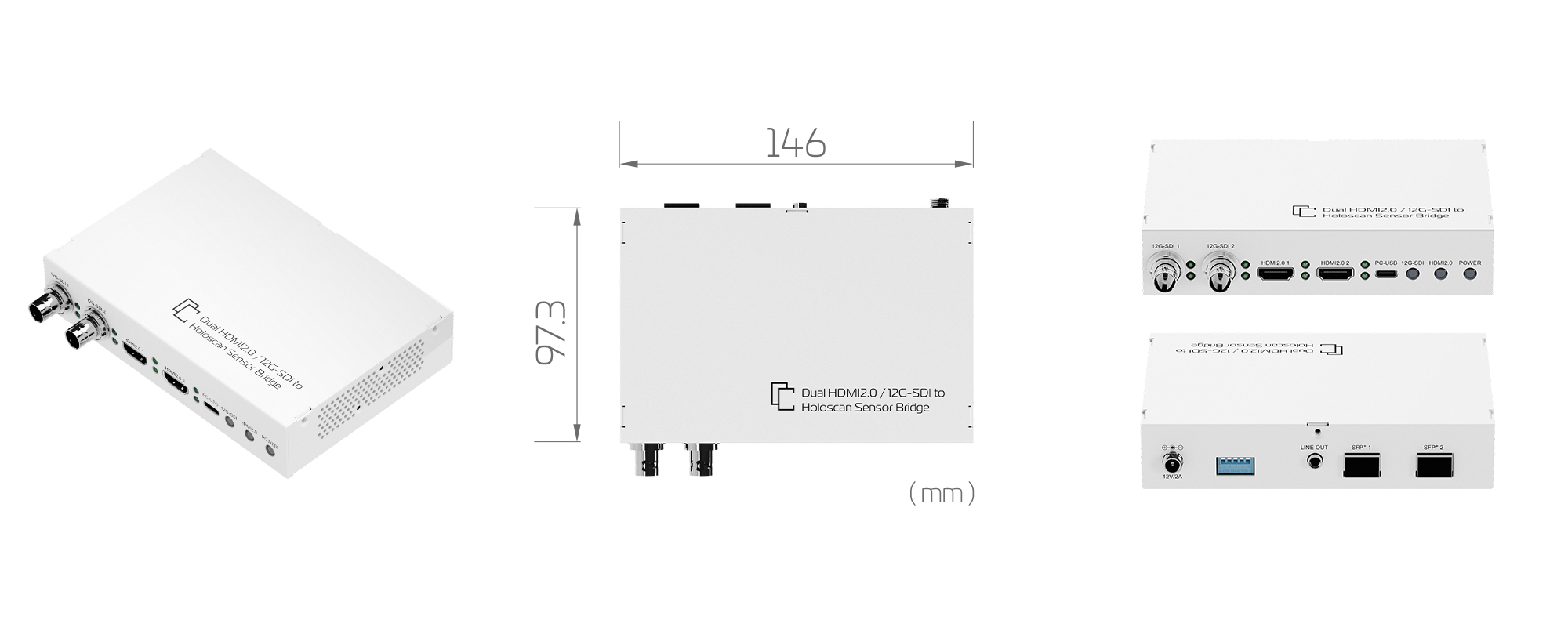

| Dimension | 146mm×97.3mm×30mm |
