HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge
Video Converter Hardware Specification
| Model Name | HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge |
| Description | Compact 4K60 Video for Holoscan Platform |
| Feature |
Multi-Standard Support ( 12G / 6G / 3G-SDI ) Compact, Fan-less Design |
| Input Interface |
Video HDMI 2.0×1 12G-SDI×1 |
| Output Interface |
Converted Video SFP+×1 |
| Supported Video Input Format |
HDMI 2.0 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps SDI 12G-SDI 3840×2160p@60/50fps 6G-SDI 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1280×720p@60/50fps |
| Supported Video Output Format |
Holoscan Sensor Bridge ( SFP+ Fiber Cage ) As Input Format |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In | 12V |

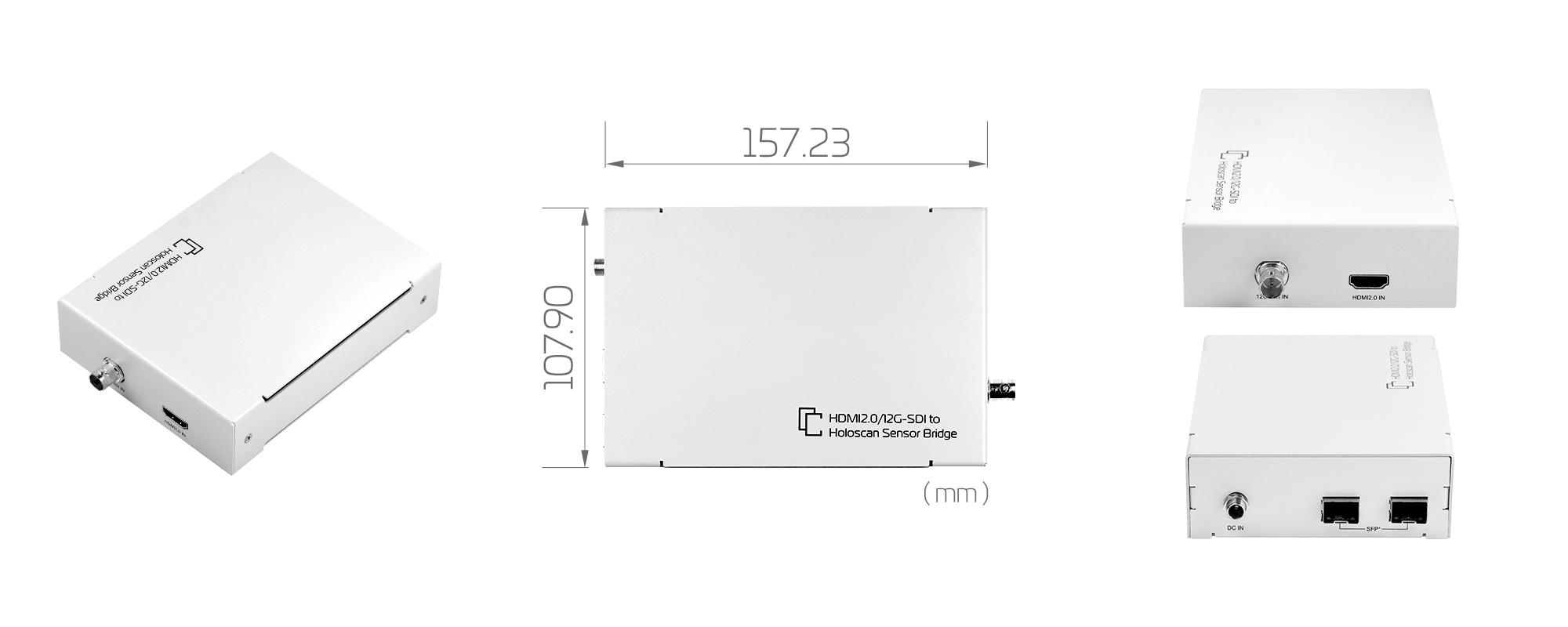

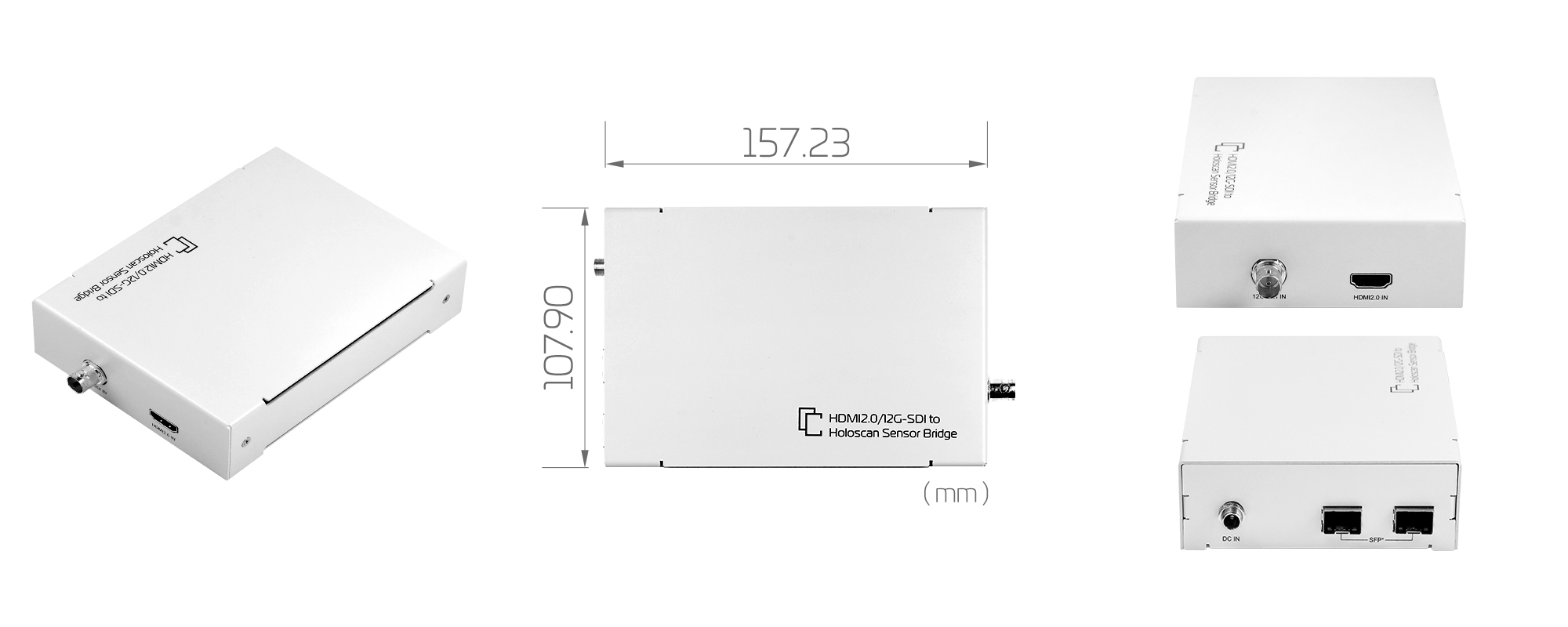

| Dimension | N/A |
