Multi 4K to Holoscan Sensor Bridge
Video Converter Hardware Specification
| Model Name | Multi 4K to Holoscan Sensor Bridge |
| Description | Multiple 4K Interface for Holoscan Platform |
| Feature |
DisplayPort Multi-Stream Transport ( MST ) / Single Stream Transport ( SST ) Support DVI Dual Link ( DVI-DL ) Support Multi-Standard Support ( 12G / 6G / 3G-SDI ) SDI support Single Link / Dual Link / Quad Link Quad-Link 2 Sample Interleave ( 2SI ) Input Supported Auto Source Format Detection |
| Input Interface |
Video 1×HDMI2.0 1×DP1.2 ( With DP Multi-Stream Transport ) 1×DVI-D Dual Link 1×12G-SDI / Dual Link SDI / Quad Link SDI ( Quad-Link 2 Sample Interleave ( 2SI ) Input Supported ) |
| Output Interface |
Video 1×Holoscan Sensor Bridge ( SFP+ Fiber Cage ) 1×HDMI2.0 2×12G-SDI |
| Supported Video Input Format |
HDMI2.0, DP1.2 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps DVI-D Dual Link 2560×1600p@60/50fps 2560×1600p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps SDI 12G-SDI ( Single Link / Dual Link / Quad Link ) 3840×2160p@60/50fps 6G-SDI ( Single Link / Dual Link / Quad Link ) 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1280×720p@60/50fps |
| Supported Video Output Format |
Holoscan Sensor Bridge ( SFP+ Fiber Cage ) As Input Format HDMI2.0 As Input Format SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below ) 12G-SDI 3840x2160p@60/50fps 6G-SDI 3840x2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1280×720p@60/50fps |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In | 12V |

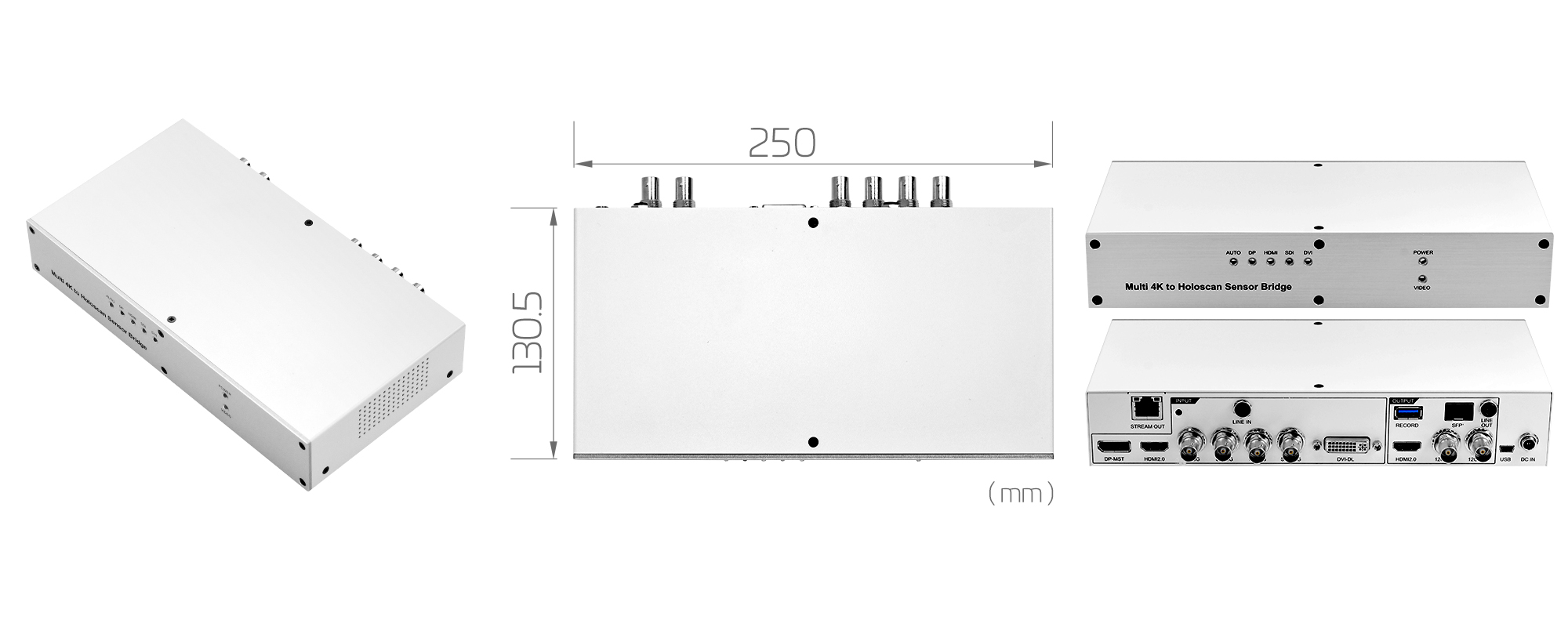

| Dimension | N/A |
