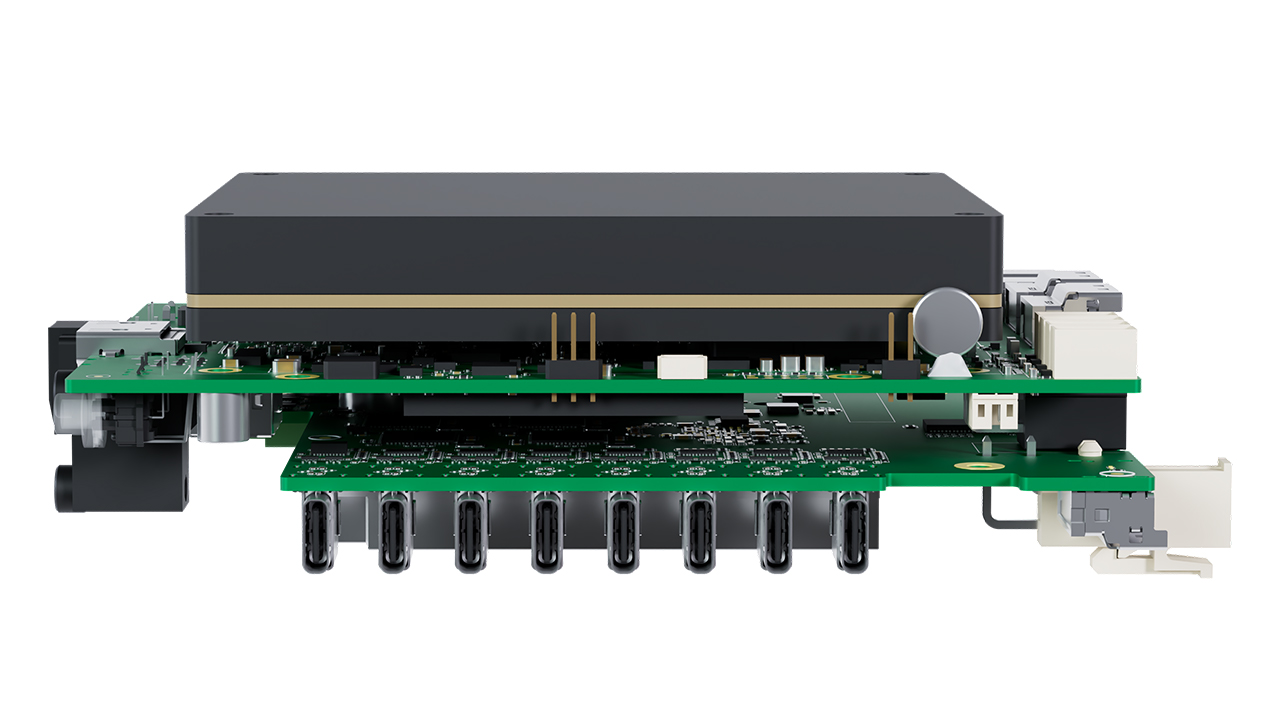

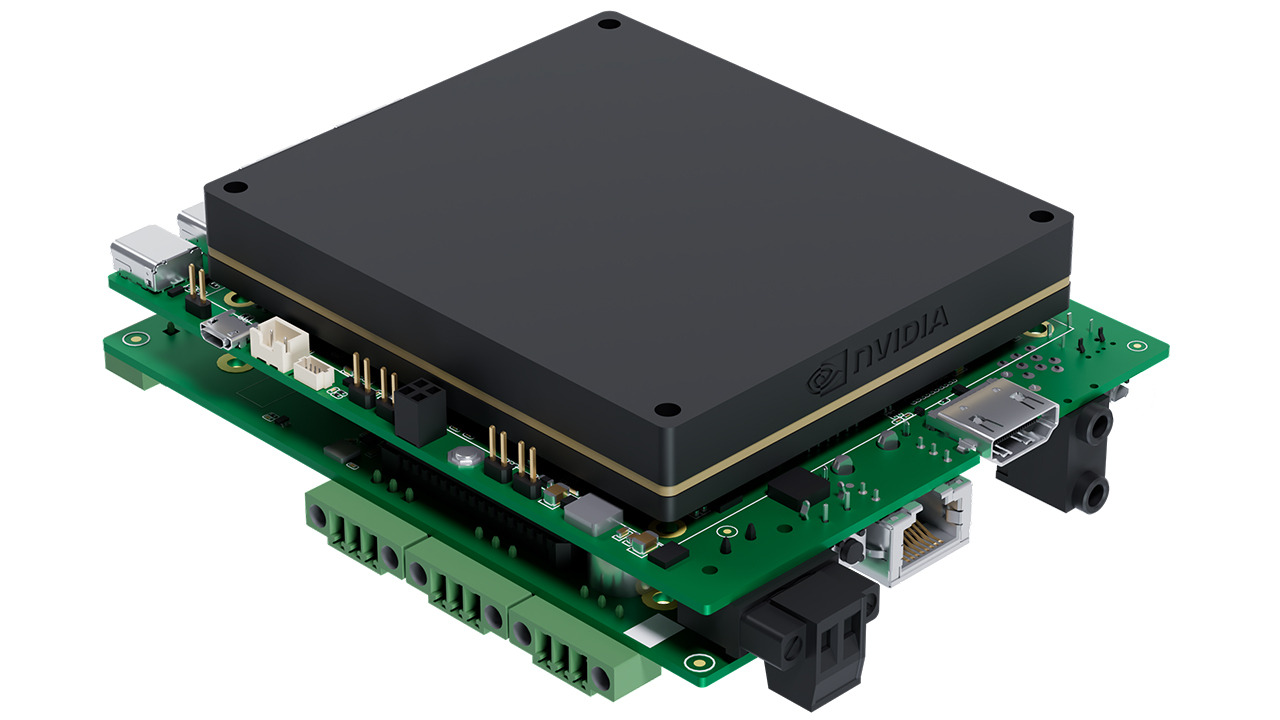

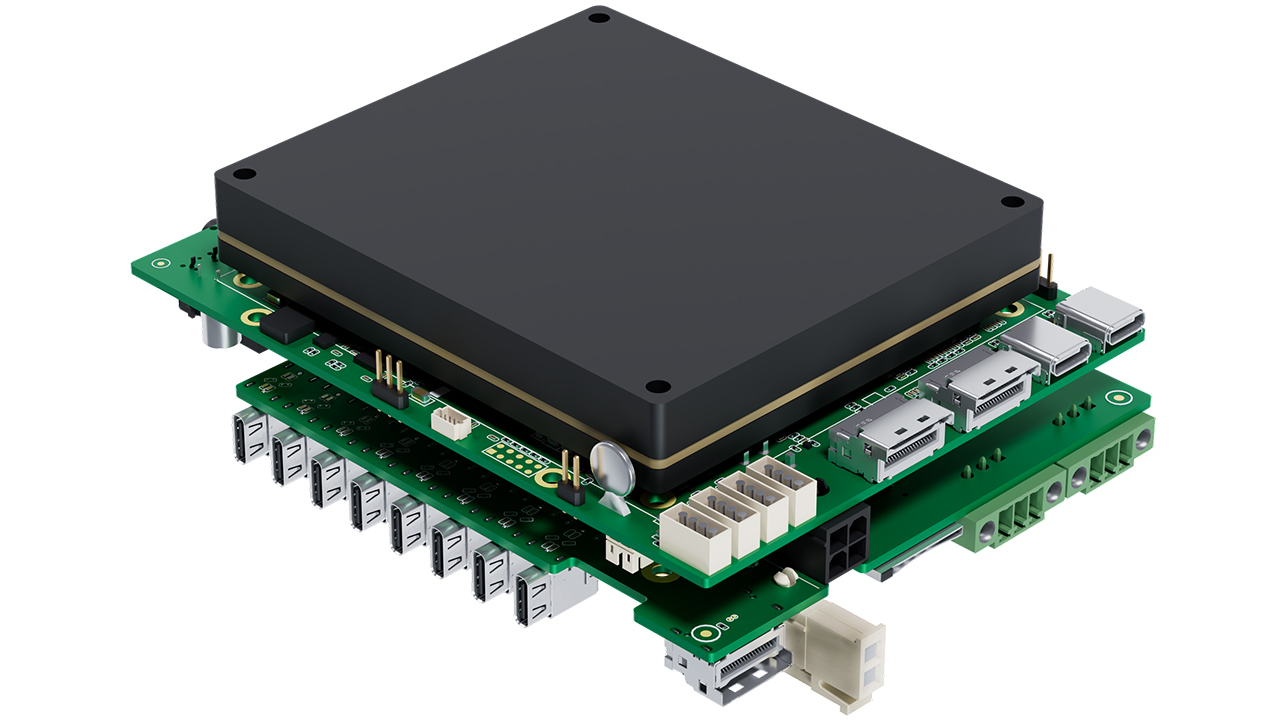

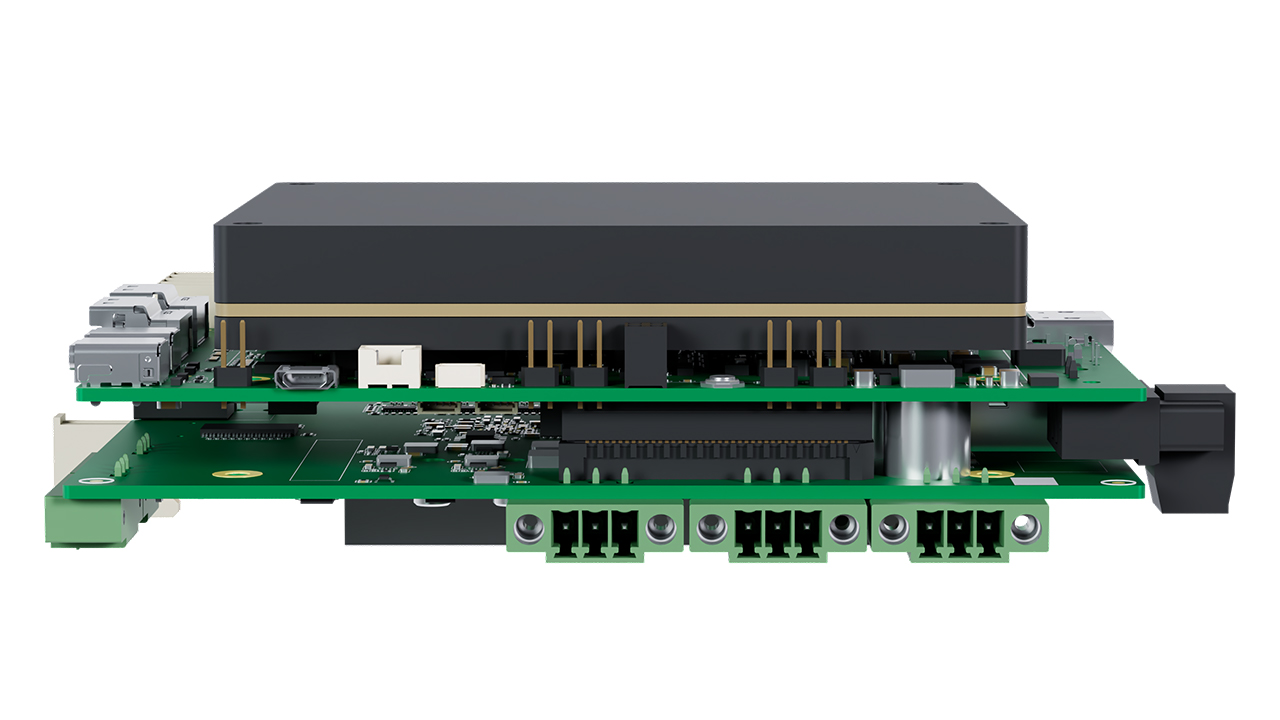

ARC6N0 T5X-8USBC
Groundbreaking AI Edge Platform, up to 2070 FP4 TFLOPS
Features
- Powered by NVIDIA® Jetson T5000™/ Jetson T4000™, up to 2070 / 1200 FP4 TFLOPS
- 3-Axis Accelerometer, 3-Axis Gyroscope and 3-Axis Magnetometer
- 1×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key
- Up to 10×USB3.2 Gen2 Type-C
- 1×5GbE, 2×Custom High-speed Connectors for Expansion via Custom Cables
- I2C/ SPI/ GPIO/ UART/ PWM, and CAN Bus ( T5000 Only )
| System | |
|---|---|
| SOM | NVIDIA® Jetson T5000™
NVIDIA® Jetson T4000™ |
| CPU | 14-Core ARM® Neoverse®-V3AE 64-bit CPU
12-Core ARM® Neoverse®-V3AE 64-bit CPU |
| GPU | 2560-core NVIDIA Blackwell architecture GPU with 96 fifthgen Tensor Cores
1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores |
| API Performance | Up to 2070 FP4 TFLOPS
Up to 1200 FP4 TFLOPS |
| System Memory | 128 GB 256-bit LPDDR5X 273 GB/s
64 GB 256-bit LPDDR5X 273 GB/s |
| Interface | |
| Storage | Supports External NVMe |
| Display Interface | 1×HDMI2.0 ( Up to 4K60 ) |
| Ethernet | 1×RJ45 for 5GbE DHCP Client |
| Expansion Slot |
1×M.2 2230 E Key PCIe Gen4×1/USB2.0/SDIO Slot Daughter Board |
| USB |
2×USB3.2 Gen2 Type-C ( shared 10G ) Daughter Board |
| MIPI | 16×MIPI CSI-2 Lanes [ D-PHY 2.1 ( 40Gbps ), 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI lanes, support MIPI camera, capture card ] |
| CAN | 2×CAN bus ( header )
N/A |
| Audio | 1×3.5mm Line In or header 1×3.5mm Line Out or header |
| Peripheral Communication |
6-axis IMU ( 3-axis accelerometer + 3-axis gyroscope ) wafer or pin Header Custom Header Daughter Board 6-axis IMU ( 3-axis accelerometer + 3-axis gyroscope )
wafer or pin Header
Custom Header
Daughter Board |
| Misc. Features | Firmware Upgradable Auto Power On ( pin header ) |
