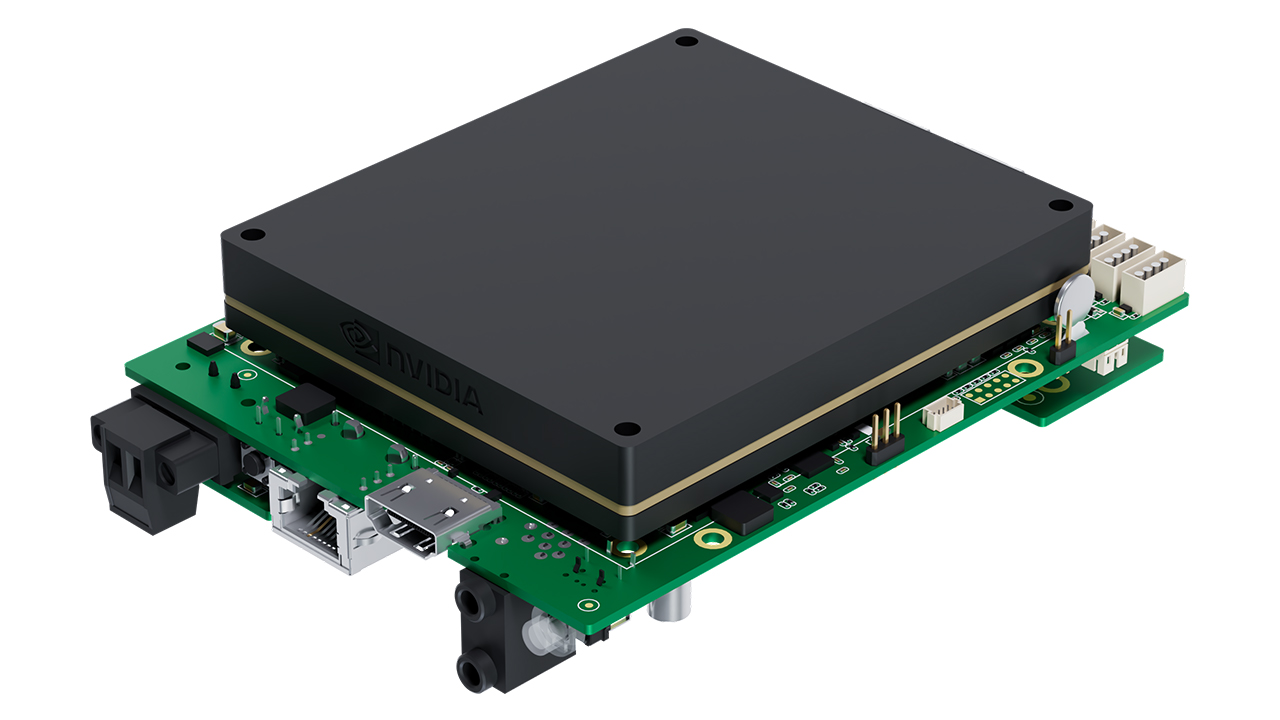

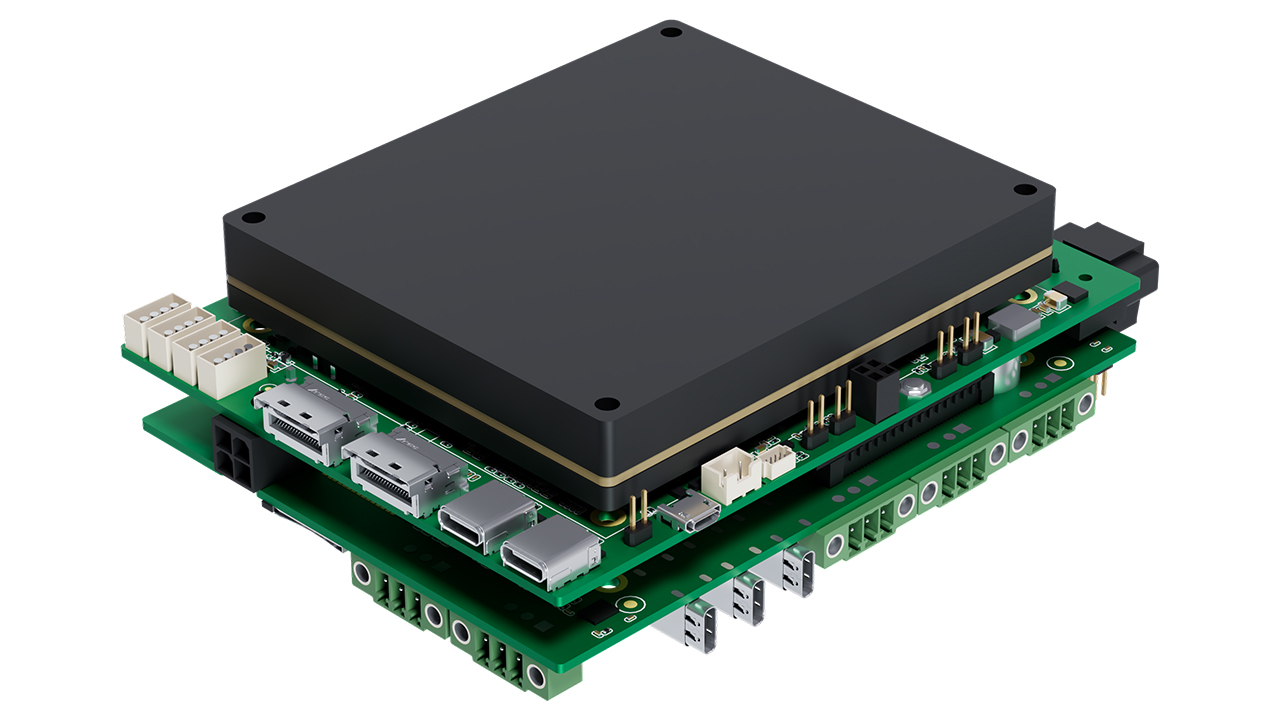

ARC6N0 T5X
Groundbreaking AI Edge Platform, 2070 FP4 TFLOPS, 1×HDMI 2.0 Display
Features
- Powered by NVIDIA® Jetson Thor™ ( T5000 / T4000 ), up to 2070 / 1200 FP4 TFLOPS
- 3-Axis Accelerometer, 3-Axis Gyroscope and 3-Axis Magnetometer
- 1×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key
- Up to 5× USB3.2 Gen2 Type-C
- 1×5GbE, 2×Custom High-speed Connectors for Expansion via Custom Cables
- I2C/ SPI/ GPIO/ UART/ PWM, and CAN Bus ( T5000 Only )
| System | |
|---|---|
| SOM | NVIDIA Jetson Thor™ T5000 NVIDIA Jetson Thor™ T4000 |
| CPU | NVIDIA Jetson Thor™ 128GB 14-Core ARM Neoverse V3AE 64-bit CPU NVIDIA Jetson Thor™ 64GB 12-Core ARM Neoverse V3AE 64-bit CPU |
| GPU | 2560 NVIDIA CUDA cores | 96 5th Tensor cores 1536 NVIDIA CUDA cores | 64 5th Tensor cores |
| API Performance | Up to 2070 FP4 TFLOPS Up to 1200 FP4 TFLOPS |
| System Memory | 128 GB LPDDR5X 273 GB/s 64 GB LPDDR5X 273 GB/s |
| Interface | |
| Storage | Supports External NVMe |
| Display Interface | 1×HDMI2.0 ( Up to 4K60 ) |
| Ethernet | 1×RJ45 for 5GbE DHCP Client |
| Expansion Slot | 1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot 1×M.2 2230 M Key PCIe Gen5×2 Slot 2×Custom High-speed connectors for external peripheral card ( Up to PCIe Gen5×4 Each ) Daughter Board 1×M.2 2242/ 3042/ 3052 B Key USB3.2 Gen1 slot, nano SIM |
| USB | 2× USB3.2 Gen2 Type-C (shared 10G), 1x micro USB ( for console only ) |
| MIPI | 16×MIPI CSI-2 Lanes ( D-PHY 2.1 ( 40Gbps ), 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card ) |
| CAN | 2×CAN bus ( Header ) N/A |
| Audio | 1×3.5mm Line In or header 1×3.5mm Line Out or header |
| Peripheral Communication |
6-axis IMU ( 3-Axis Accelerometer + 3-Axis Gyroscope ) Wafer or Pin Header ．GPIO/USB3/USB2/CAN /UART/I2C/SPI/PWM/FAN Custom Header ．CAN/ I2C/ SPI/ GPIO/ UART/USB Daughter Board ．3-Axis magnetometer ．3×USB3.2 Gen2 Type C ( Shared 10G ) ．3×CAN bus ( 1 Shared with MB's CAN bus ) ．2×RS485 ．RTK support + GNSS antenna connector ( Optional ) 6-axis IMU ( 3-Axis Accelerometer + 3-Axis Gyroscope ) Wafer or Pin Header ．GPIO/USB3/USB2/UART/I2C/SPI/PWM/FAN Custom Header ．I2C/SPI/ GPIO/ UART/USB Daughter Board ．3-axis magnetometer ．3×USB3.2 Gen2 Type C ( Shared 10G ) ．2×RS485 ．RTK support + GNSS antenna connector ( Optional ) |
| Misc. Features | Firmware Upgradable Auto Power On ( Pin Header ) |
