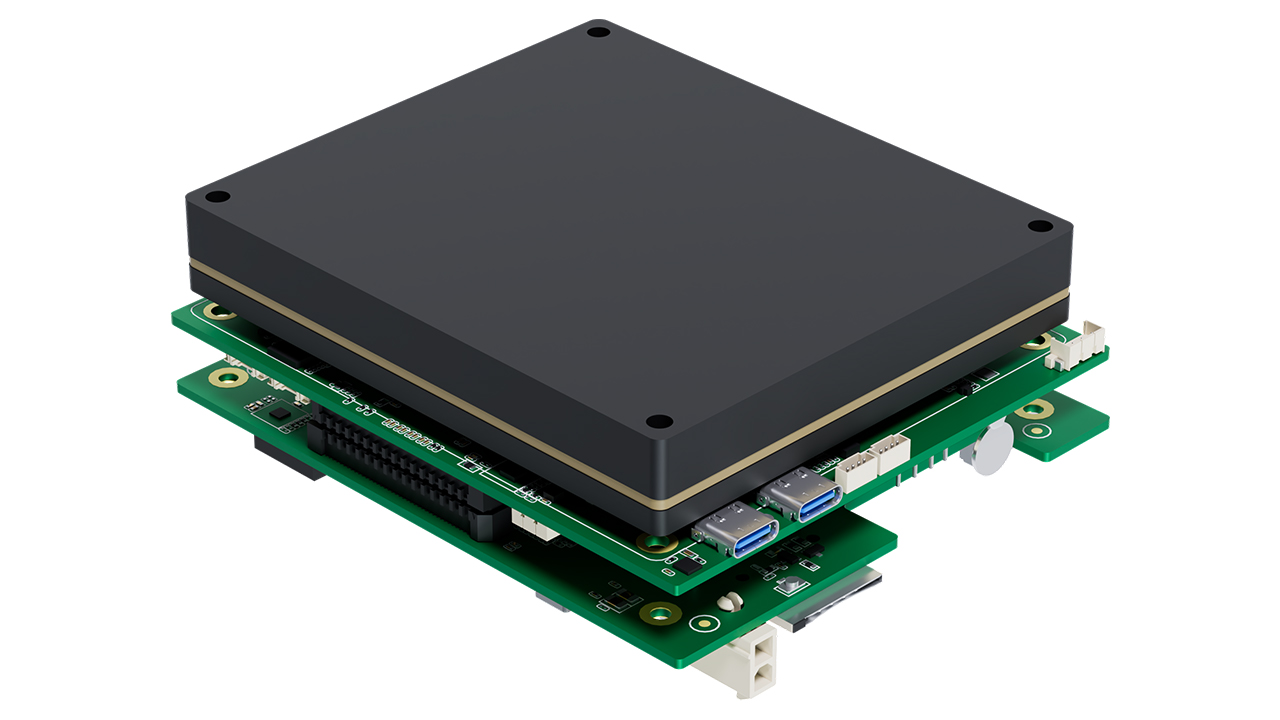

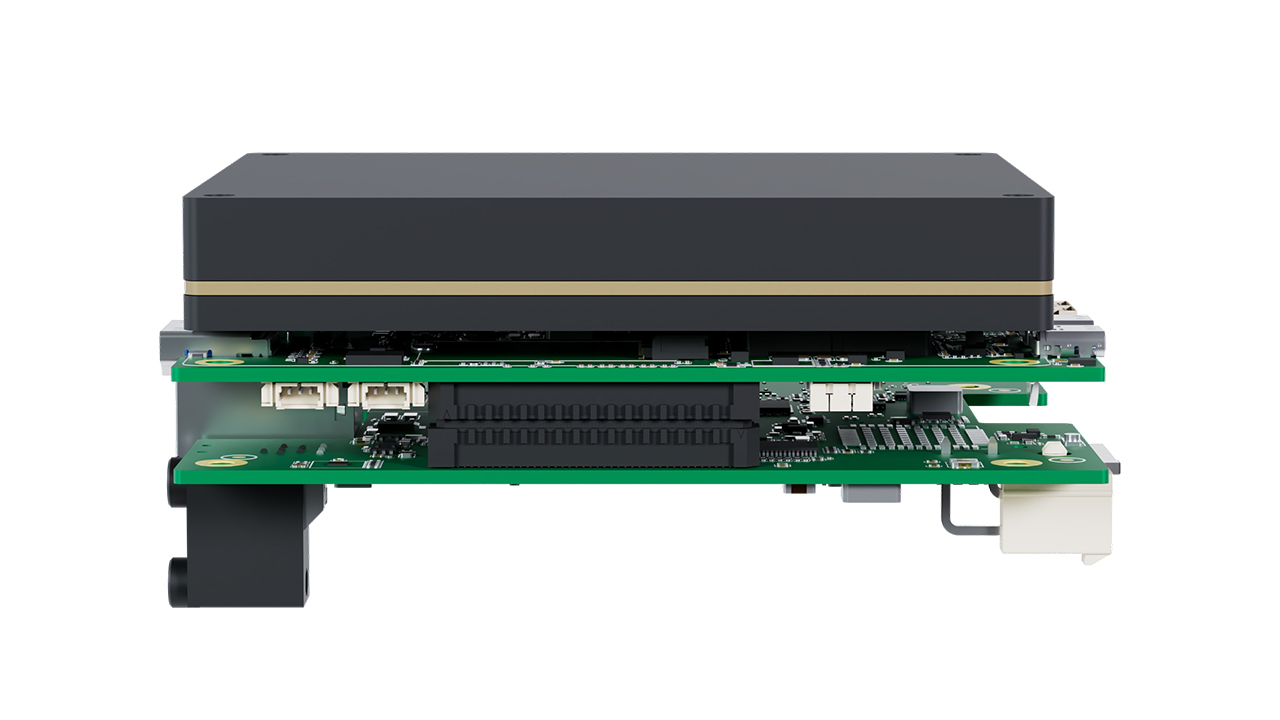

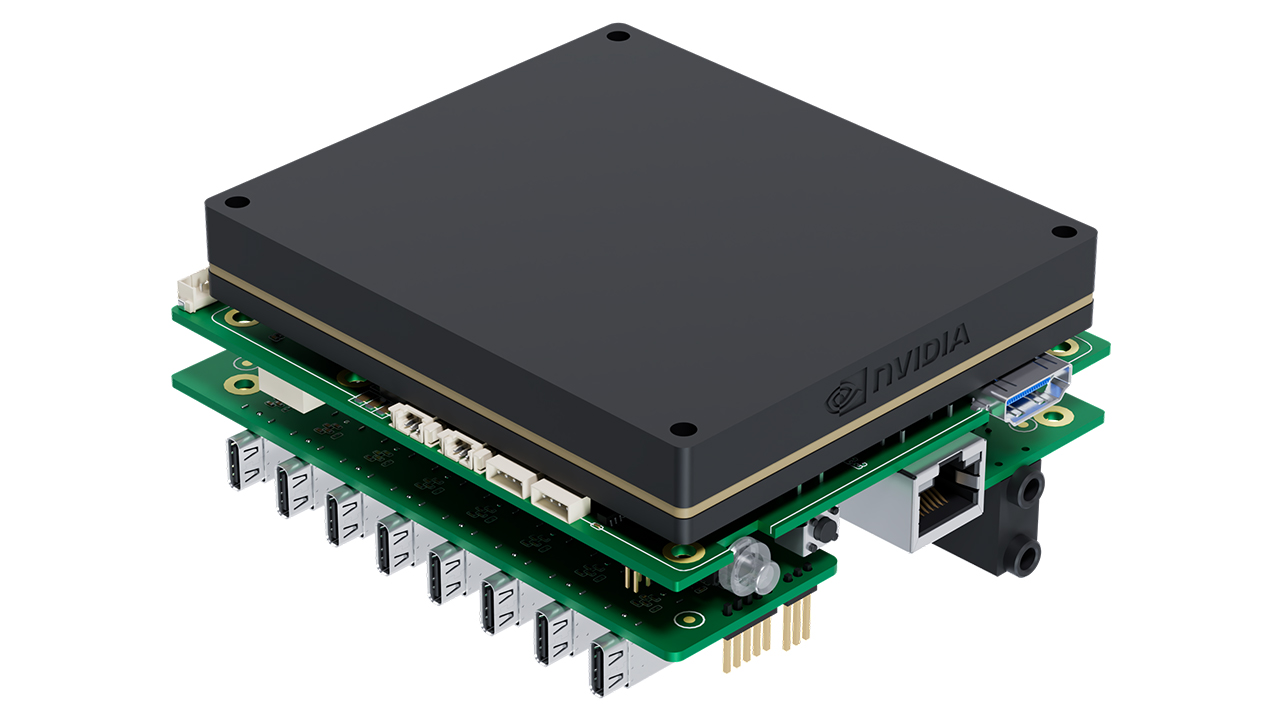

ARC6N0 AGX-8USBC
Highly Integrated AI Core, Provide 275 TOPS and Expandability
Features
- Powered by NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- 3-Axis Digital Accelerometer, 3-Axis Digital Gyroscope and 3-Axis Magnetometer
- 1×M.2 E Key / 1×M.2 M Key / 1×M.2 B Key
- 2×USB3.2 Gen2 Type-C + 8×USB3.2 Gen2 Type-C
- CAN Bus / I2C / SPI / GPIO / PWM
- Compact Design
| System | |
|---|---|
| CPU | NVIDIA Jetson AGX Orin™ 64GB 12-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 3MB L2 + 6MB L3 NVIDIA Jetson AGX Orin™ 32GB 8-core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
| GPU | NVIDIA Jetson AGX Orin™ 64GB 2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores NVIDIA Jetson AGX Orin™ 32GB 1792-Core NVIDIA Ampere Architecture GPU with 56 Tensor Cores |
| API Performance | NVIDIA Jetson AGX Orin™ 64GB 275 TOPS NVIDIA Jetson AGX Orin™ 32GB 200 TOPS |
| System Memory | NVIDIA Jetson AGX Orin™ 64GB 64GB LPDDR5 NVIDIA Jetson AGX Orin™ 32GB 32GB LPDDR5 |
| Interface | |
| Storage | 64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module ) |
| Display Interface | 1×HDMI2.0 |
| Ethernet | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot | Main Board 1×M.2 2230 E Key PCIe Gen4×1/USB2.0/SDIO Slot 1×M.2 2230 M Key PCIe Gen4×4 Slot Daughter Board 1×M.2 3042/3052 B Key USB3.0 Slot |

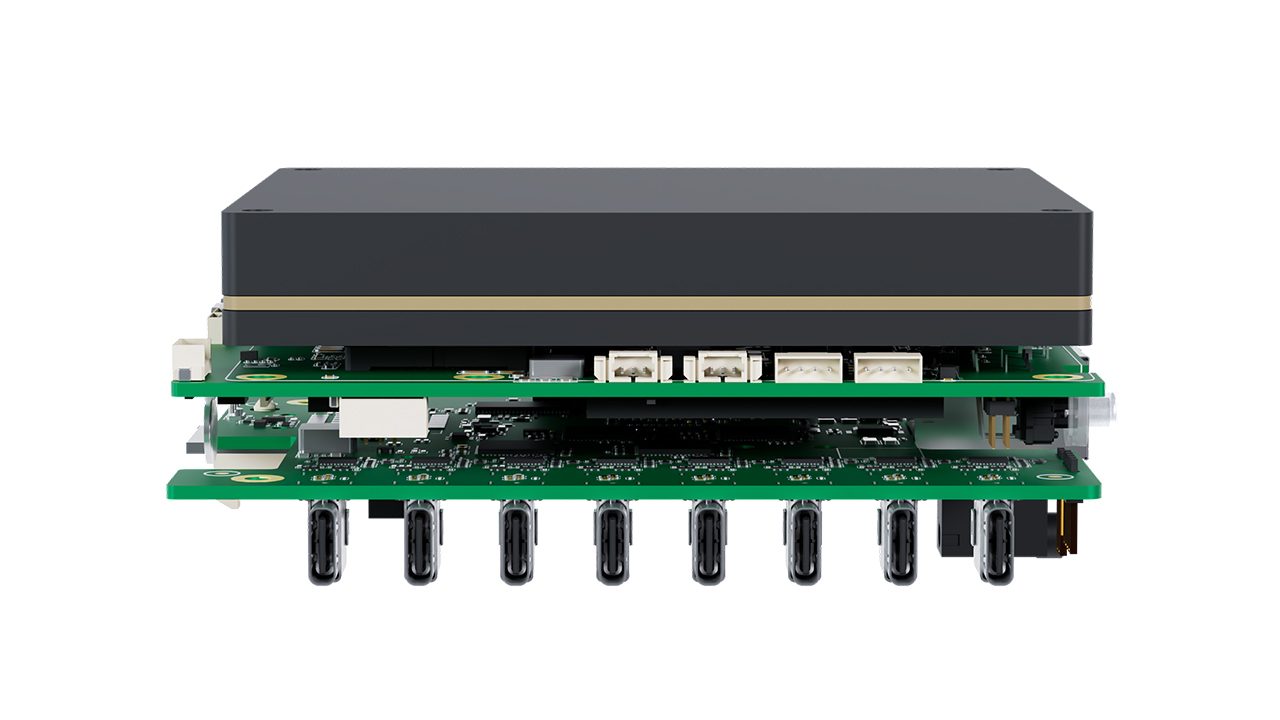

| USB | Main Board 2×USB3.2 Gen2 ( Type-C ) Daughter Board 8×USB3.2 Gen2 ( Type-C ) |
| MIPI | 16×MIPI CSI-2 Lanes ( D-PHY 2.1, 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card ) |
| Peripheral Communication |
Main Board 6-Axis IMU ( 3-Axis Accelerometer + 3-Axis Gyroscope ) 2×UART 1×I2C 1×SPI 2×PWM FAN 2×CAN Bus 4×GPIO Daughter Board 3-Axis IMU ( 3-Axis Magnetometer ) 1×Line In/Out RTK support + GNSS antenna connector ( optional ) |
| Misc. Features | Firmware Upgradable AutoPower ( Pin Header ) |
