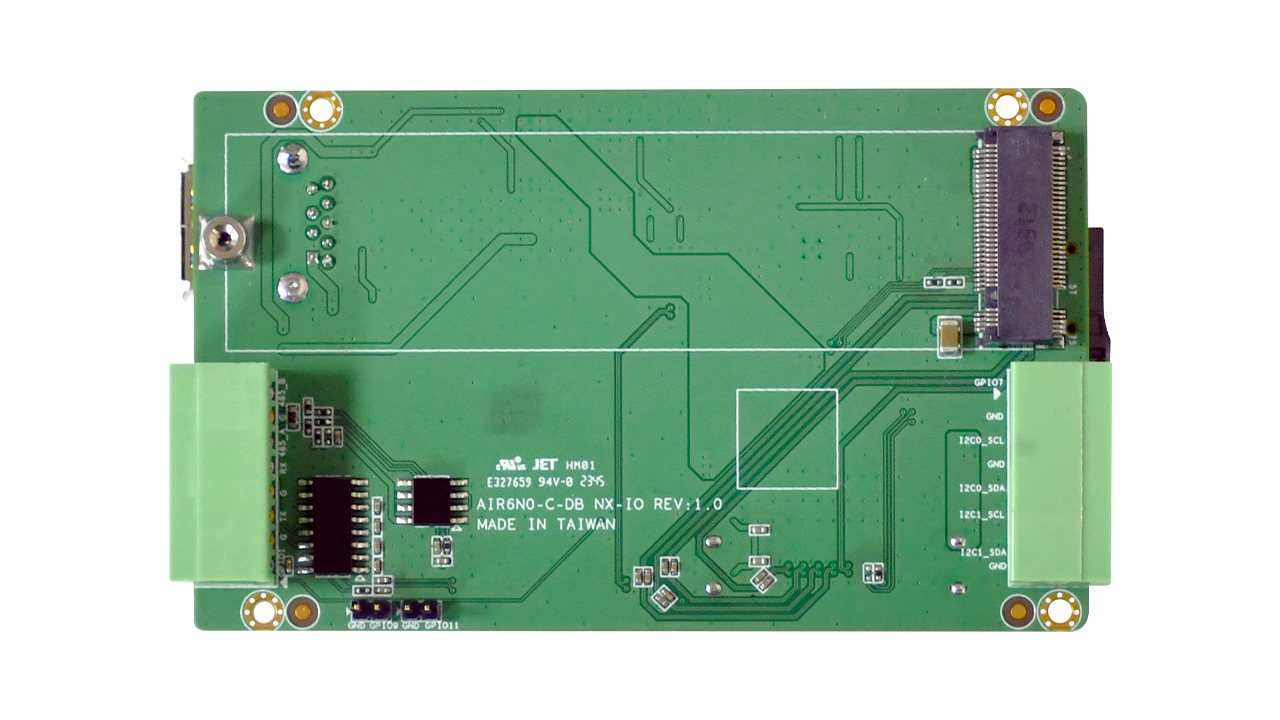

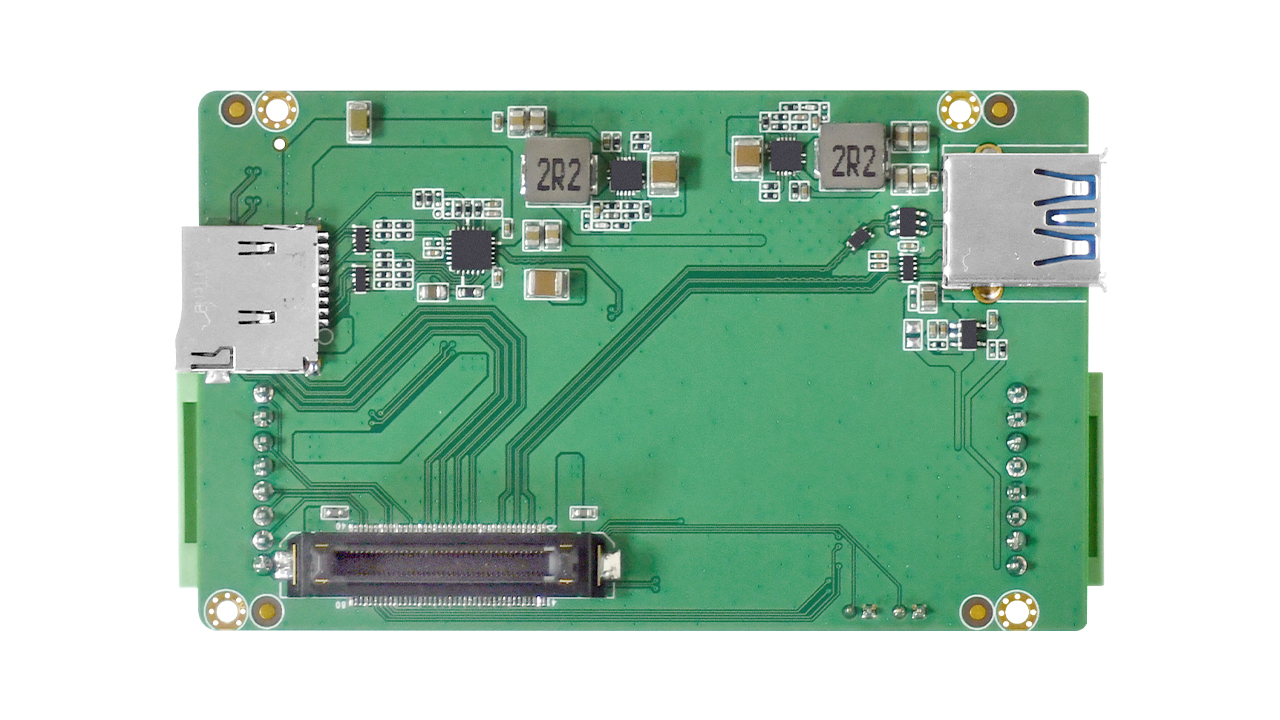

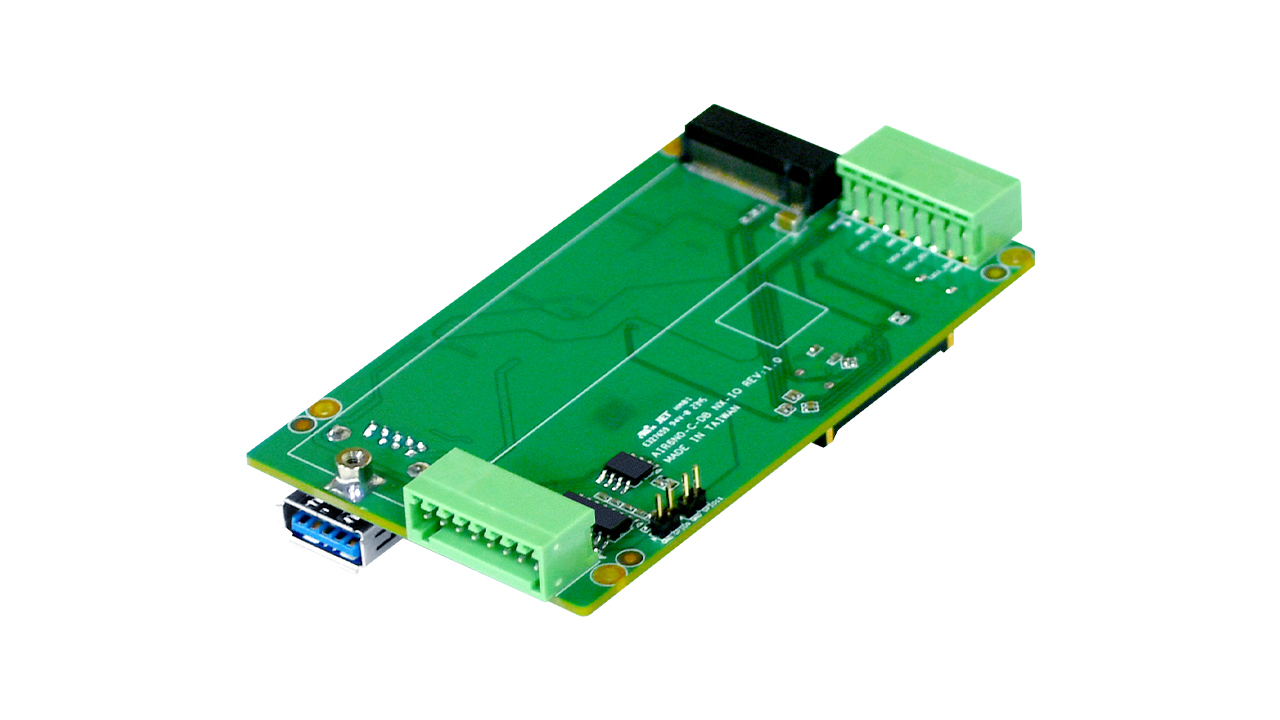

AIR6N0-C-DB NX I/O
Card Size AI Edge with Multi AIoT Expansion
Features
- Business Card Size
- 1×M.2 2280 M Key PCIe×4 Slot
- 1×USB3.2 Gen1 ( Type-A )
| Interface | |
|---|---|
| Peripheral Communication | 8 Pin Phoenix Connector 1×GPIO 2×I2C 8 Pin Phoenix Connector 1×RS232(*) 1×RS485 1×GPIO 2 Pin Header 1×GPIO 2 Pin Header 1×GPIO * Please select either RS232 of 8 Pin phoenix connector or UART of 6 Pin wafer on carrier board to use |
| Storage | 1×Micro SD Card Slot |
| M.2 | 1×M.2 2280 M Key PCIe×4 Slot |
| Misc. Features |
Firmware Upgradable |
| Development Environment | |
| JetPack | 6.2 or Higher |
| Environment | |
| Power Consumption | TBA |
| Operating Temperature | 0~6 0 ℃ with Airflow |
| Storage Temperature | -20~80 ℃ |
| Certification | CE, FCC |
