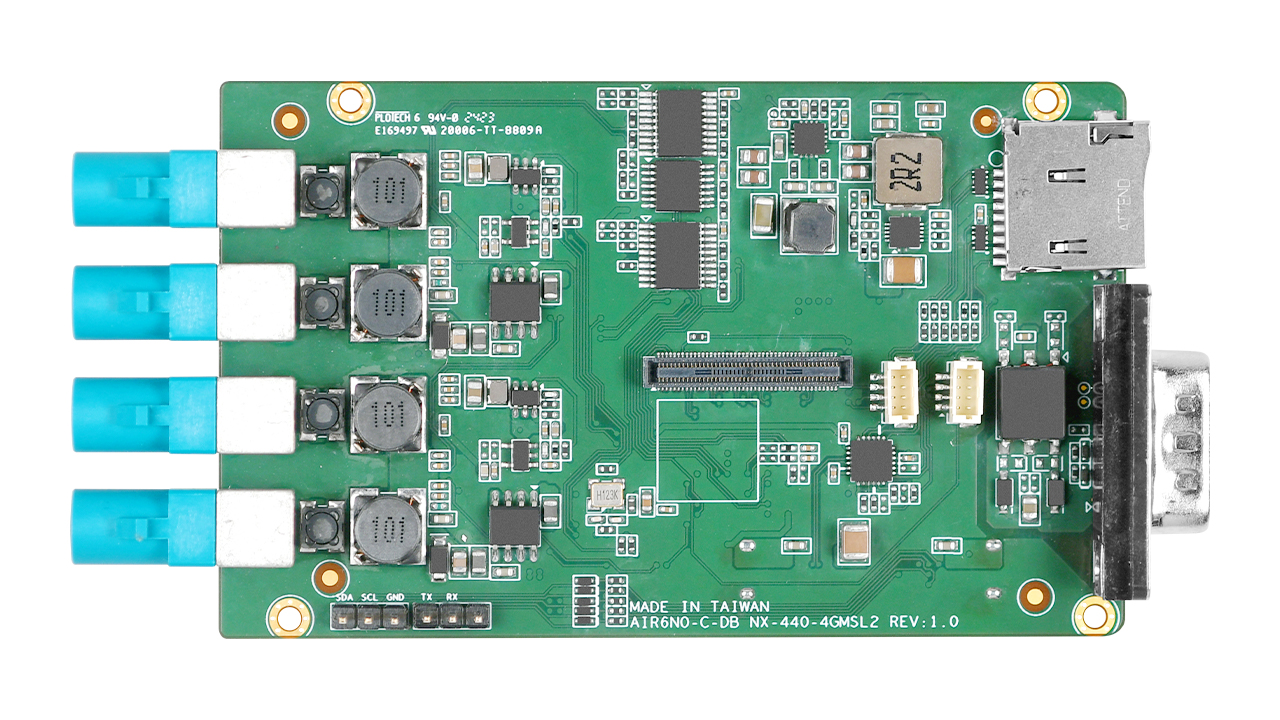

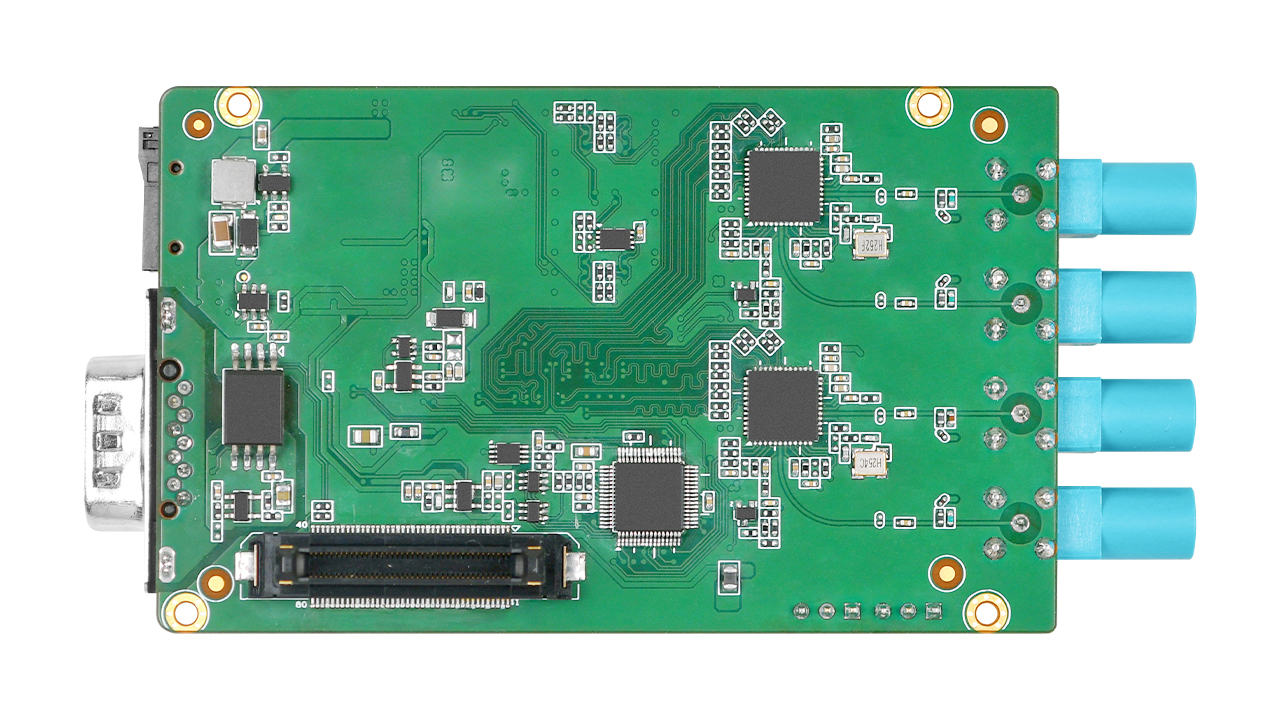

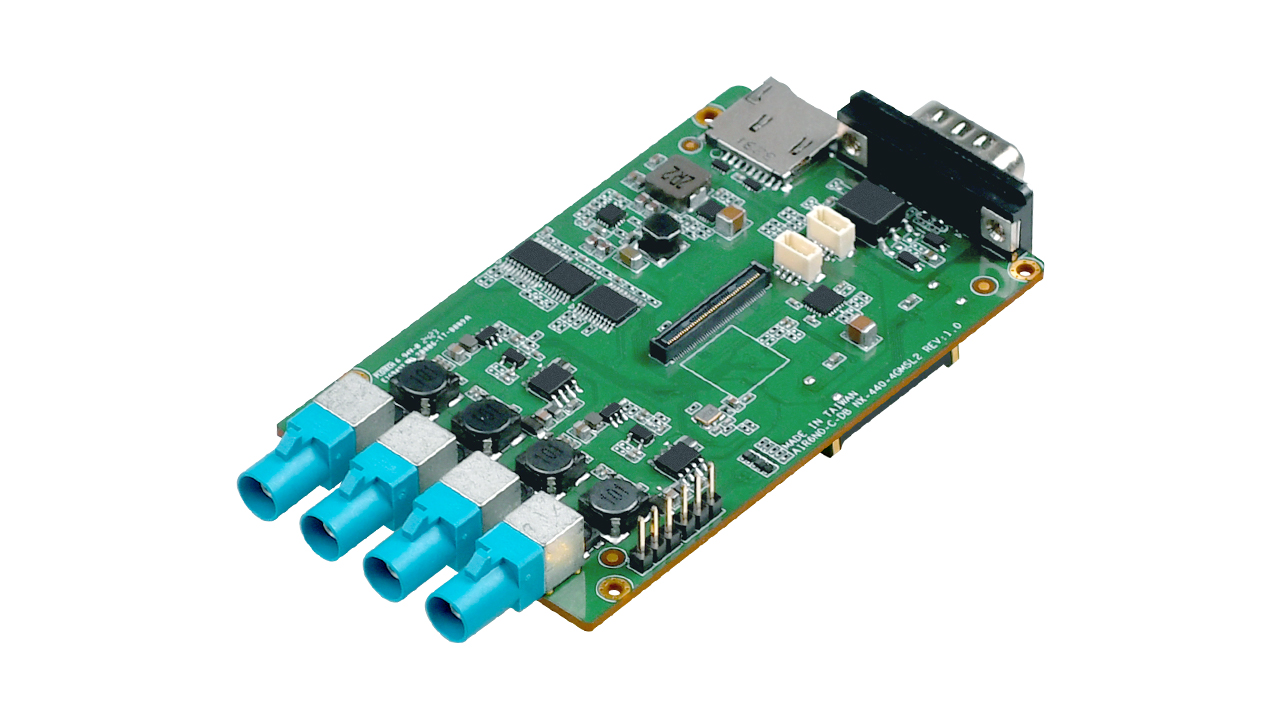

AIR6N0-C-DB NX 4×GMSL2 ( MIPI )
Card Size AI Edge with Multi AIoT Expansion
| Video Feature | |
|---|---|
| Input | 4×GMSL2 |
| Video Capture Resolution | 1920×1080p@60/45/30fps |
| MIPI | 1×MIPI CSI-2, 8 Lanes, D-PHY 2.1 |
| Interface | |
| Peripheral Communication | 3 Pin Jumper ( JP1 ) 1×I2C 3 Pin Jumper ( JP2 ) 1×UART(*) DB9 1×CAN Bus * Please select either UART of 3 Pin Jumper or UART of 6 Pin wafer on carrier board to use |
| Storage | 1×Micro SD Card Slot |
| Misc. Features | Firmware Upgradable |
| Development Environment | |
| JetPack | 6.2 or Higher |
| Environment | |
| Power Consumption | TBA |
| Operating Temperature | 0~60℃ with Airflow |
| Storage Temperature | -20~80℃ |
| Certification | CE, FCC |
