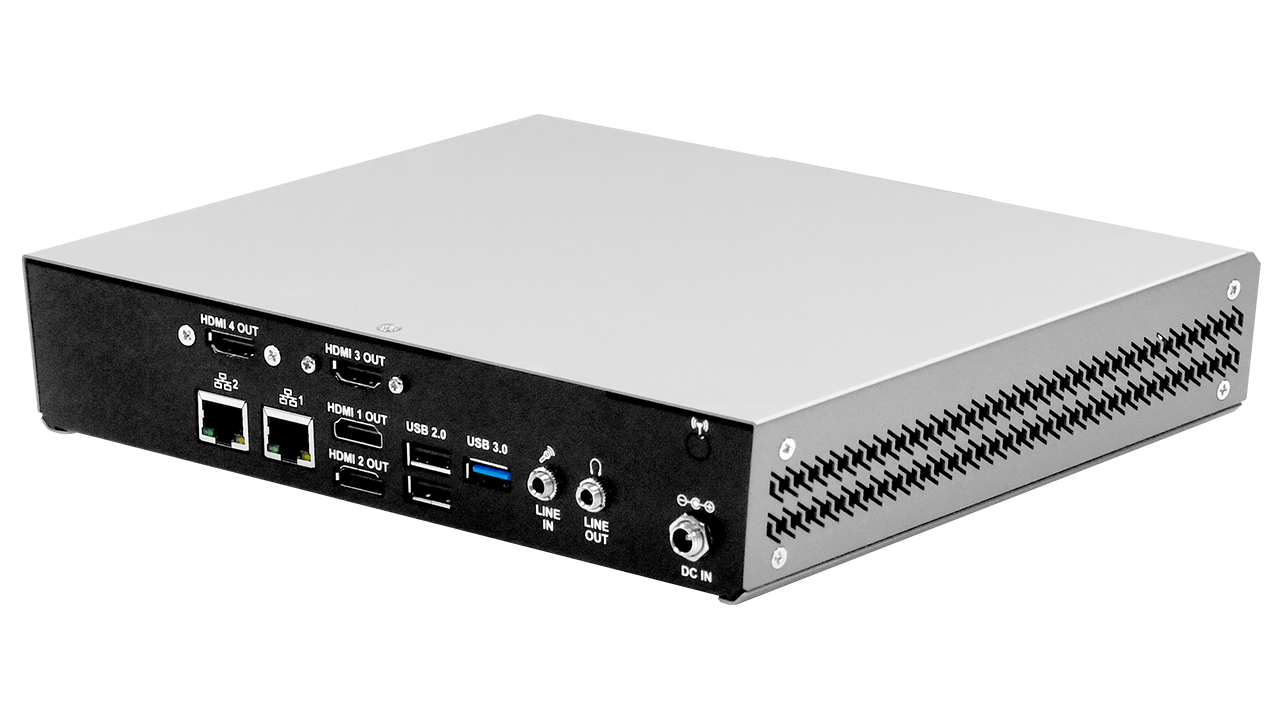

VPP6T0-S i7E
Quad 4K60 Decode & Display
Features
- Up to 4 HDMI2.0 Display
- Up to 32 TOPS AI Performance
- 2×M2 M Key / 1×M2 E Key / 1×M2 B Key
- 2×USB3.0 / 2×USB2.0
- 6×COM Port / 2×I2C
| System | |
|---|---|
|
CPU |
Intel® Core™ i7 1165G7 |
| GPU | Intel® Iris® Xe Graphics |
| API Performance | 32 TOPS |
| System Memory | 2×16GB DDR4 3200MHz Dual Channel |
| Interface | |
| Storage |
128GB M2 2280 SATA SSD 1×SATA |
| Display Interface |
Rear Display 2×HDMI2.0 2×HDMI2.0 ( Optional, Convert from Internal Display ) Internal Display 1×HDMI2.0 ( Onboard Connector ) 1×eDP ( Onboard Connector ) |
| Ethernet |
2×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot |
M2 1×M2 2280 M Key PCIe Gen3×4 Slot ( Switch with 2nd PCIe ) 1×M2 3042 B Key USB3.0 Slot with SIM Card Slot 1×M2 2230 E Key PCIe Gen3×1/USB2.0 Slot |
| USB |
Front USB 1×USB3.0 ( Type-A ) Rear USB 1×USB3.0 ( Type-A ) 2×USB2.0 ( Type-A ) Internal USB 4×USB2.0 ( Pin Header ) |
| Audio |
1×3.5mm Line/MIC In 1×3.5mm Line Out |
| Peripherals |
6×COM Port ( Pin Header ) 2×I2C ( Pin Header ) GPIO Pin Header 1×SPI 1×I2C 3×GPIO |
