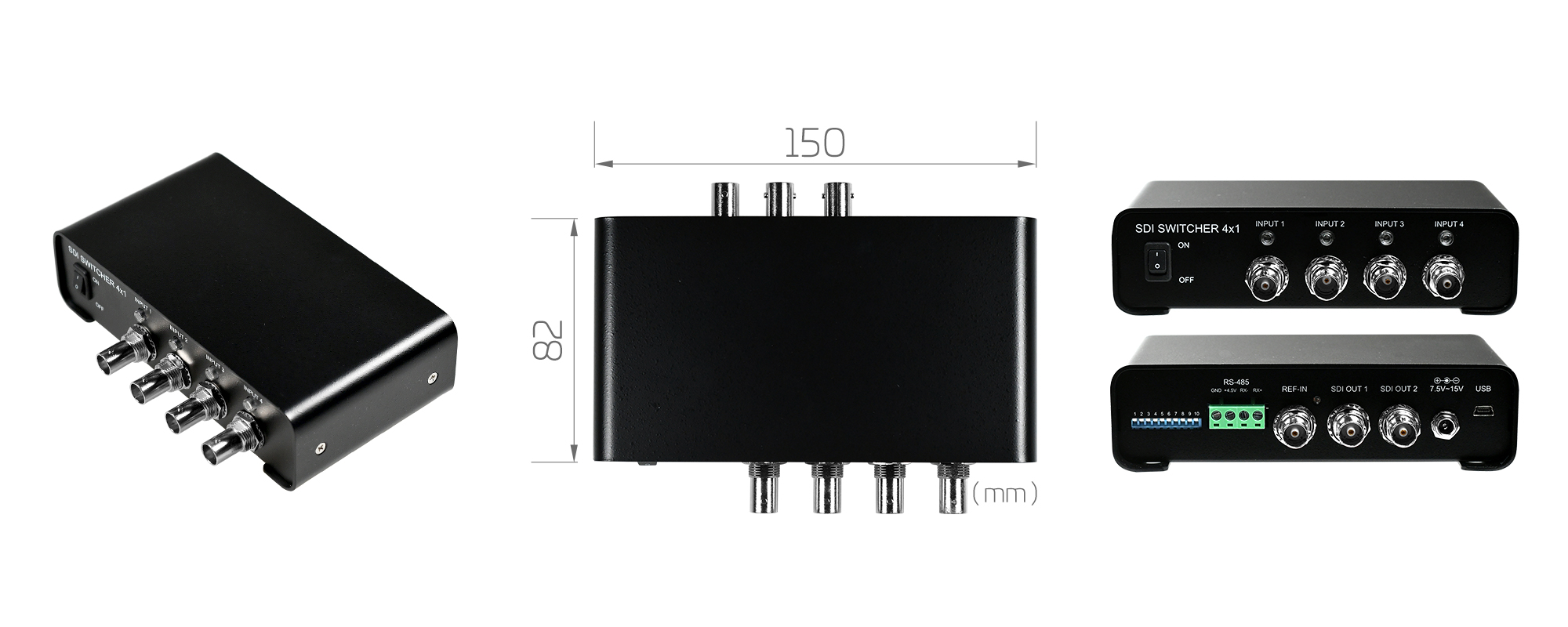

SDI 4×1 Switch
4×1 SDI to SDI Seamless Switcher with Frame Synchronizer
| Model Name | SDI 4×1 Switch |
| Description | 4×1 SDI to SDI Seamless Switcher with Frame Synchronizer |
| Feature |
Seamless Switching Between 4 SDI Inputs Multi-Standard Support ( 3G/HD/SD-SDI ) Independent Input & Output Video Format Audio Mute During Channel Switching Reference Input ( Black Burst and Tri-Level Sync. ) Flexible Control with DIP Switch/USB/Button/RS485 |
| Input Interface |
Video SDI×4 REF×1 ( Black Burst and Tri-Level Sync. ) |
| Output Interface |
Up/Down Converted Video SDI×2 |
| Supported Video Input Format |
SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
SDI ( Up/Down Converted ) 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| GENLOCK Frame Lock Mode | Free-Run, External Sync Input |
| Audio Input Format | SDI : Up to 8 Channels, 24bit, 48KHz |
| Audio Output Format | SDI : Up to 8 Channels, 24bit, 48KHz |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |
| Dimension | L:150mm×W:82mm×H:40.8mm |
