PD570 TVI
1 CH 1080P30 TVI with ProAV Scaler
| Max. Input Resolution | 1920x1080p @ 30/25fps |
| Video Input | 1 × TVI |

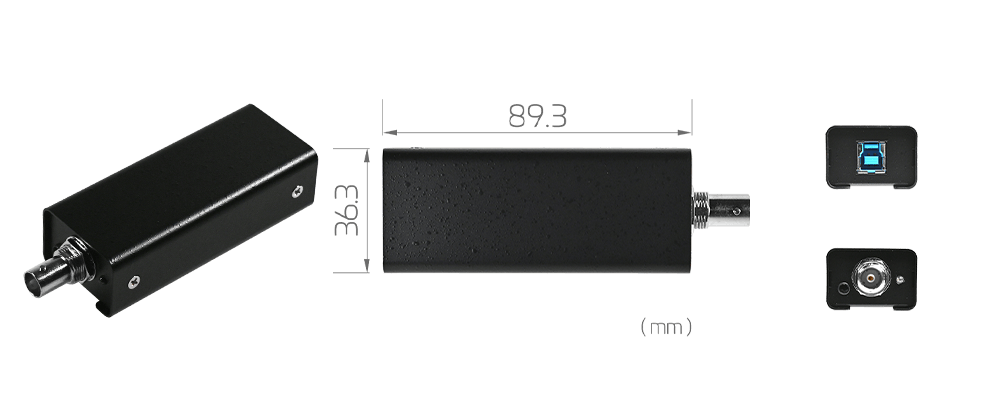

| Dimension | N/A |
| Interface | USB3.0 Type B (SuperSpeed) UVC |
| Feature | N/A |
| Video Input Detail | 1 × TVI |
| Video Output | N/A |
| Color Format | YUY2 |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions |
USB3.0 Support Resolution TVI / Compatible Analog HD (A/C) 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 960H / CVBS 960×480i@60fps 720×480i@60fps 960×576i@50fps 720×576i@50fps |
| UVC Video Output Resolution |
USB3.0 Support Resolution Same as Input Resolution |
| Audio Input | 3.5mm Analog Stereo Audio |
| Audio Format | Stereo / 16-bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) Linux / MAC OS / Android |
