UB570 PRO AIO
1 CH 1080P60 AIO with ProAV Scaler
| Max. Input Resolution | 1920×1200p@60/50fps |
| Video Input | 1×SDI , 1×HDMI , 1×DVI-I , 1×YPBPR , 1×CVBS , 1×S-Video |

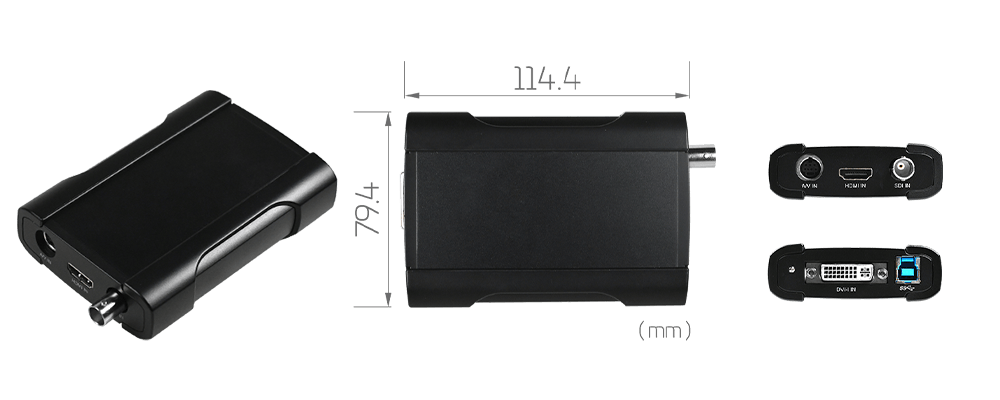

| Dimension | 114.4×79.4×23.92 ( mm ) |
| Interface | USB3.0 Type B ( SuperSpeed ) UVC / USB2.0 Type B ( High-Speed ) UVC |
| Feature | N/A |
| Video Input Detail | 1×SDI , 1×HDMI , 1×DVI-I , 1×YPBPR , 1×CVBS , 1×S-Video |
| Video Output | N/A |
| Color Format | YUY2 ( USB2.0/3.0 ) |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions |
USB2.0/3.0 Support Resolution All resolution below 1920×1200p@60fps |
| UVC Video Output Resolution |
USB3.0 Support Resolution 1920×1200p@60/50/30/25/24fps 1920×1080p@60/50/30/25/24fps 1280×1024p@60/50/30/25/24fps 1280×720p@60/50/30/25/24fps 1024×768p@60/50/30/25/24fps 800×600p@60/50/30/25/24fps 640×480p@60/50/30/25/24fps 720×576p@60/50/30/25/24fps 720×480p@60/50/30/25/24fps USB2.0 Support Resolution 640×480p@30/25/24fps 720×576p@25/24fps 720×480p@25/24fps |
| Audio Input |
SDI Embedded Audio HDMI Embedded Audio 2×RCA ( Audio L/R through component cable ) |
| Audio Format | Stereo / 16-bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) / Windows 11 Linux / MAC OS |
