SC750N1O1
The I/O Card series supports 4K60 4:4:4 video input and output, enabling reliable workflows such as real-time overlay, format-controlled output, and synchronized signal distribution—ideal for production control, medical display, and industrial vision integration.

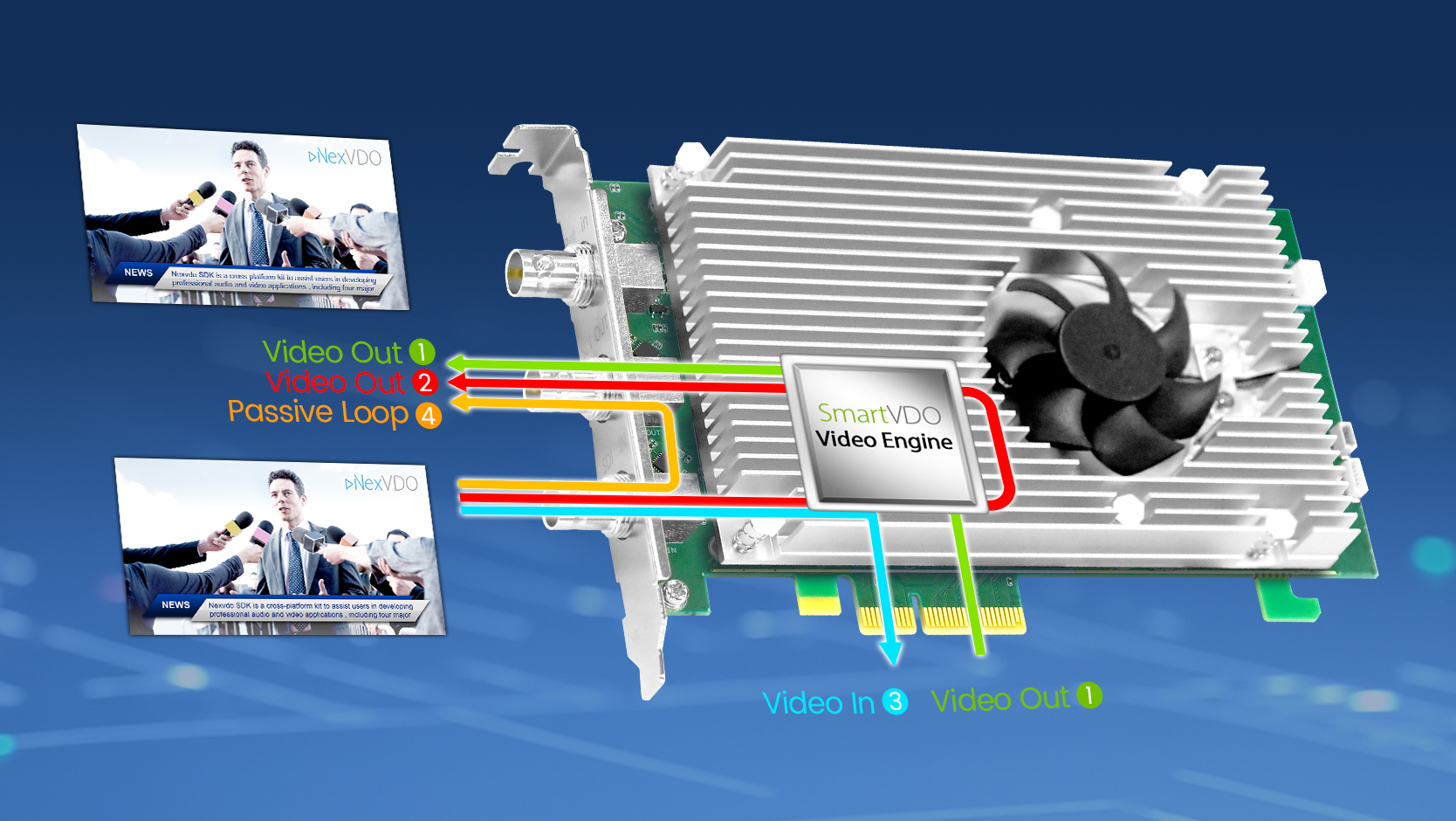

Multi-Mode Output Design
YUAN's I/O cards support three output modes tailored for different video processing tasks.
⦁ Loop Mode enables immediate signal pass-through for real-time monitoring.
⦁ Output Mode allows the host to send processed or converted video output.
⦁ Overlay Mode supports real-time graphics and text overlay with input & output video source.
Broadcast-Level Video Processing Engine
Equipped with a high-performance video processing engine that integrates real-time OSD overlay, chroma keying, alpha blending, picture-in-picture ( PIP ), and cropping. Supports dual-view output and flexible layout control, ideal for broadcasting, medical preview, and synchronized video display.

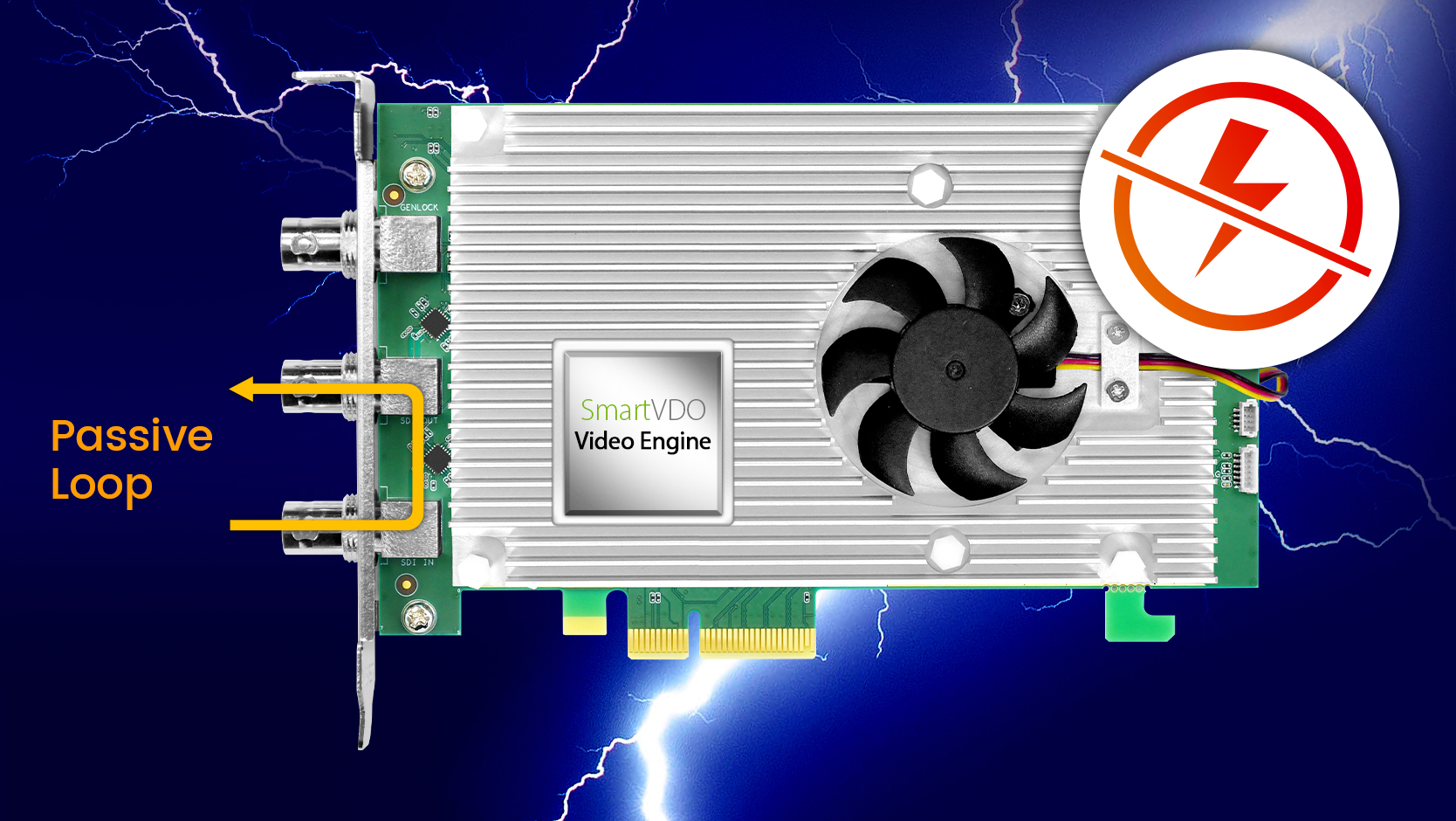

Passive Bypass ( Optional )
Passive Bypass enables continuous signal pass-through even during host shutdown or power loss, ensuring stable operation under unexpected conditions.
