SDI⇌HDMI2.0 4K Cross
Up/Down Converter
| Model Name | SDI⇌HDMI2.0 4K Cross |
| Description | 3G-SDI, 4K HDMI to 3G-SDI, 4K HDMI Up/Down/Cross Converter |
| Feature |
Real HDMI 2.0 Input/Output with RGB444/YUV444/YUV422/YUV420 Processing Built-in 4K Super Resolution Engine I ↔ P Conversion ( Built-In Interlacer and DeInterlacer. ) 60fps ↔ 59.94fps Conversion Reference Input ( Black Burst and Tri-Level Sync. ) |
| Input Interface |
Video HDMI 2.0×1 SDI×1 REF×1 ( Black Burst and Tri-Level Sync. ) Audio A Pair of RCA Connector for L/R Audio |
| Output Interface |
Up/Down Converted Video HDMI 2.0×1 SDI×2 Loop-through Video SDI×1 |
| Supported Video Input Format |
HDMI2.0 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/59.94/50fps 3840x2160p@30/29.97/25/24/23.98fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps SDI 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
HDMI2.0 ( Up/Down Converted ) 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/59.94/50fps 3840x2160p@30/29.97/25/24/23.98fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps SDI ( Up/Down Converted ) 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps SDI ( Loop-Through ) As Input SDI Format |
| GENLOCK Frame Lock Mode | Free-Run, External Sync Input |
| Audio Input Format |
SDI/HDMI2.0 : Up to 8 Channels, 24bit, 48KHz RCA : 2 Channels, 24bit, 48KHz |
| Audio Output Format | SDI/HDMI2.0 : Up to 8 Channels, 24bit, 48KHz |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

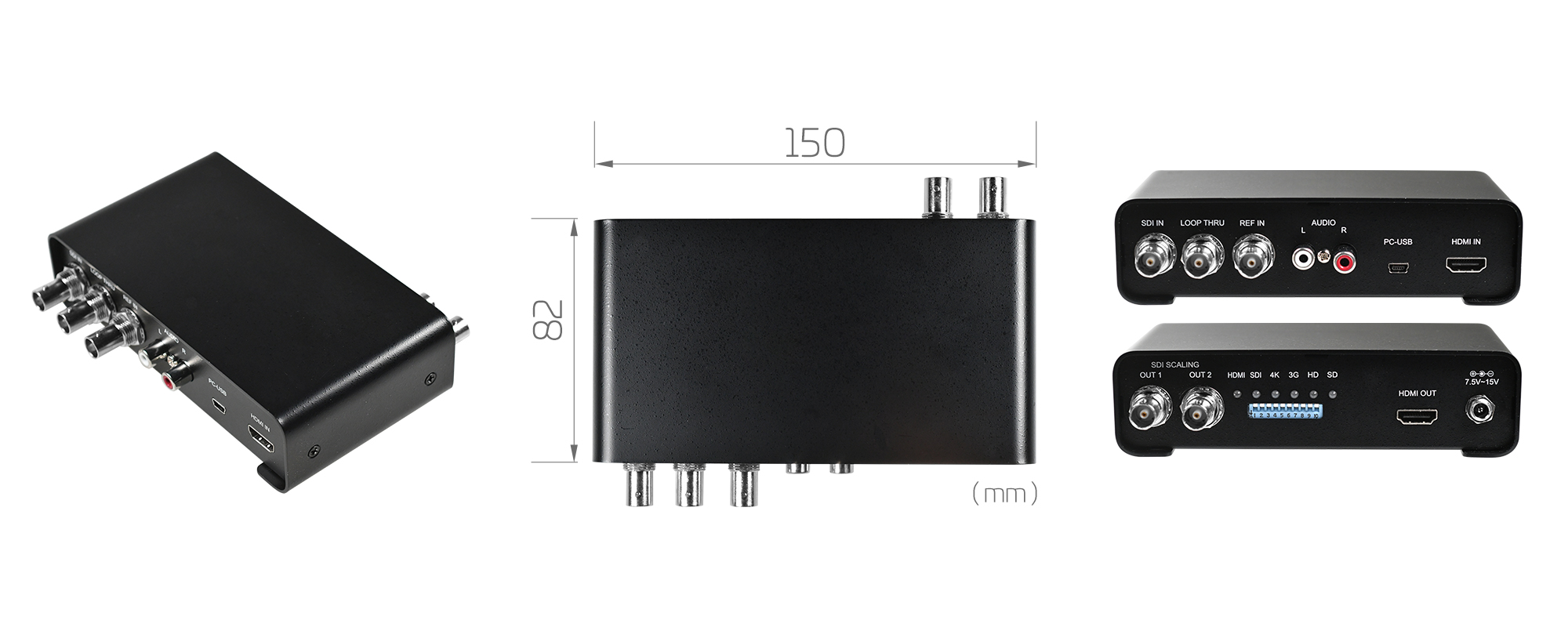

| Dimension | L:150mm×W:82mm×H:40.8mm |
