HDMI2.0 Splitter
1x4 HDMI2.0 to HDMI2.0 Reclocking Distribution Amplifier
| Model Name | HDMI2.0 Splitter |
| Description | 1x4 HDMI2.0 to HDMI2.0 Reclocking Distribution Amplifier |
| Feature |
Support CSC color space conversion matrix and 420/422/444 conversion (1:1;1:2;2:1) Support 4:1 down scaling for 4K2K content to 1080P display on legacy display. Support HDMI2.0 and HDMI1.4 3D format with frame packing/Top and Bottom/side by side mode USB control application available |
| Input Interface |
Video HDMI2.0×1 |
| Output Interface |
Video HDMI2.0×4 |
| Supported Video Input Format |
HDMI 2.0 4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format |
HDMI 2.0 ( Loop-Through ) As Input HDMI 2.0 Format |
| GENLOCK Frame Lock Mode | N/A |
| Audio Input Format | HDMI 2.0 : 8 Channels, 24bit, 48KHz |
| Audio Output Format | HDMI 2.0 : 8 Channels, 24bit, 48KHz |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

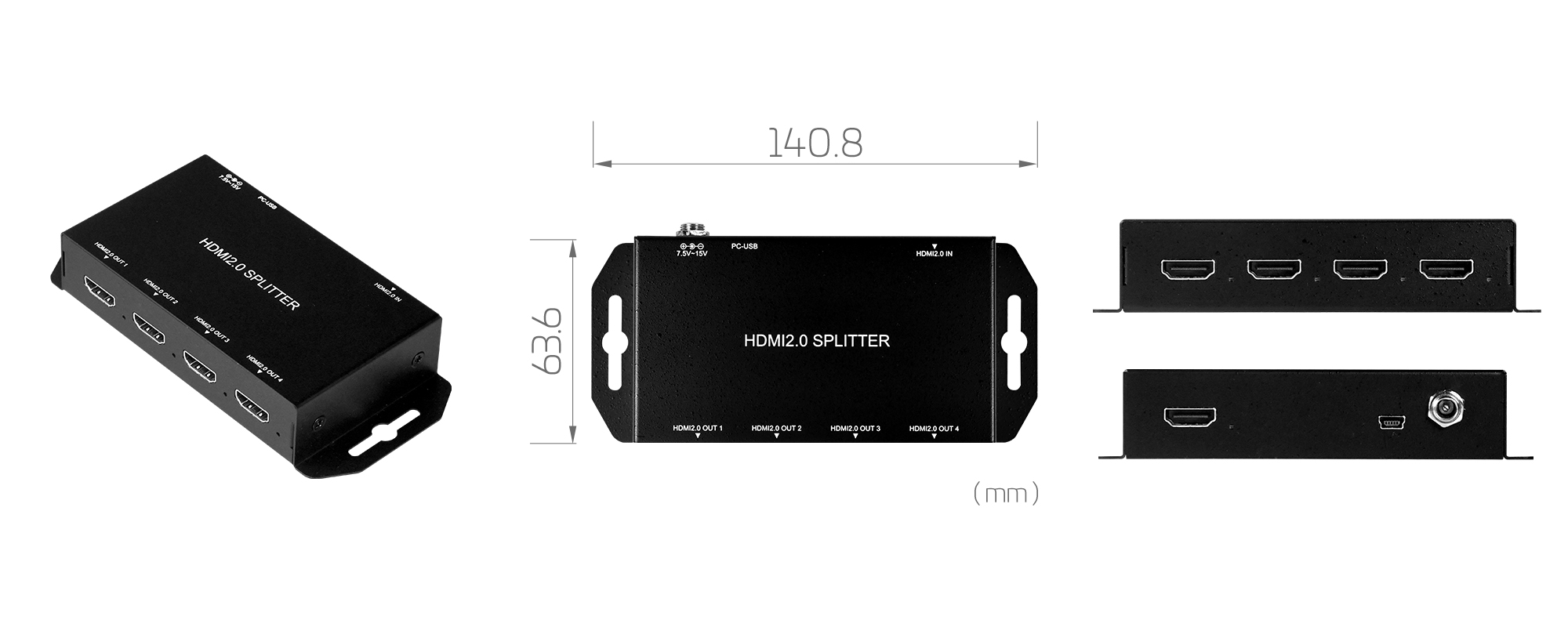

| Dimension | L:140.81mm×W:63.6mm×H:26mm |
