UB579G HDMI2.0
1CH 4K60 HDMI2.0
| Max. Input Resolution |
3840×2160p@60/50fps 1920×1080p@240/200fps |
| Video Input | 1×HDMI2.0 |

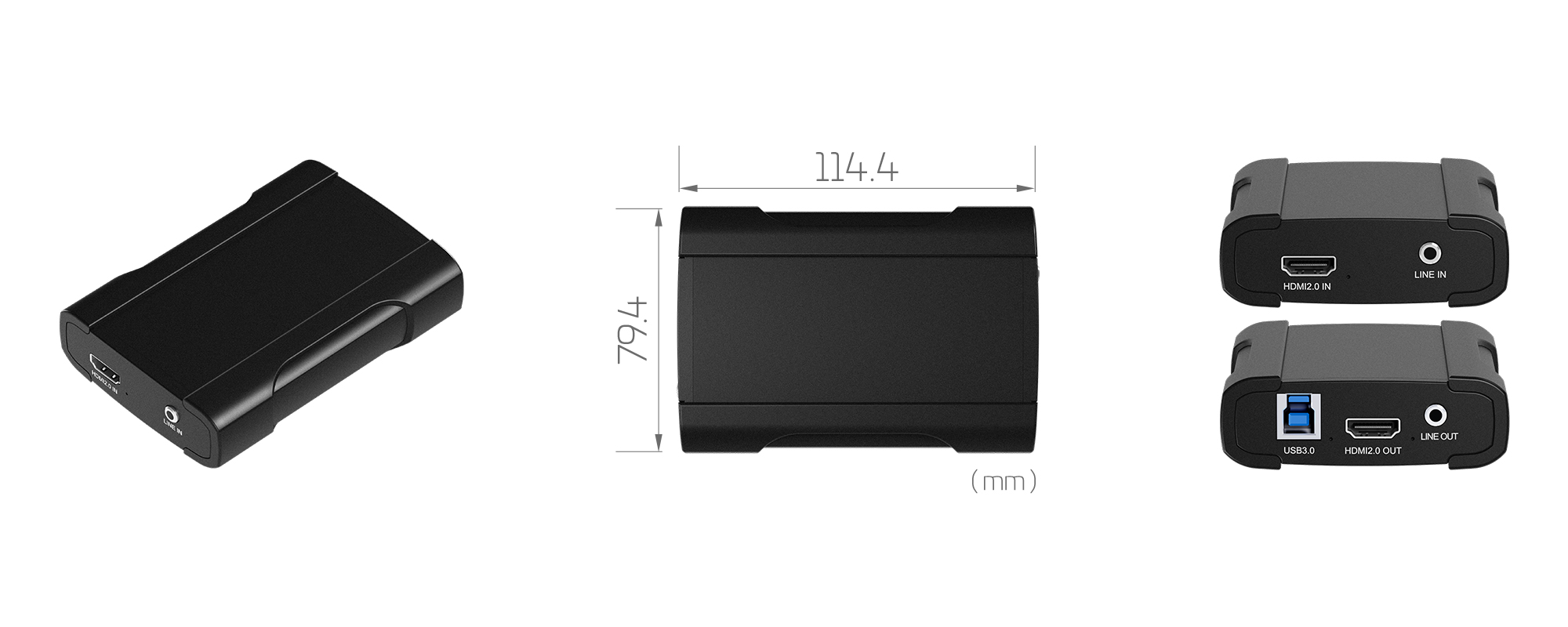

| Dimension | 114.4×79.4×23.92 ( mm ) |
| Interface | USB3.0 Type B ( SuperSpeed ) UVC |
| Feature | 422 10Bit HDR, 444 8Bit HDR |
| Video Input Detail |
All Resolution Below 3840×2160p@60fps 1920×1080p@240fps ( 422 10Bit HDR, 444 8Bit HDR ) |
| Video Output | 1×HDMI2.0 ( Loop-Through ) |
| Color Format |
RGB24, YUY2, P010 ( Support on outputs below 1080P60 ) NV12, I420, MJPEG ( Supports on all outputs. ) |
| Build-in Hardware Encode | Software Compression, Real-Time Mode |
| Video Processing | N/A |
| Video Resolutions |
USB3.0 Support Resolution MJPEG 3840×2160p@60/50fps NV12, I420, MJPEG 3840×2160p@30/25fps 1920×1080p@120/100fps 2560×1440p@60/50/30/25fps NV12, I420, MJPEG, YUY2,P010, RGB24 1920×1080p@60/50/30/25fps 1280×720p@60/50/30/25fps NV12, I420, MJPEG, YUY2, RGB24 720×576p@60/50/30/25fps 720×480p@60/50/30/25fps 640×480p@60/50/30/25fps |
| UVC Video Output Resolution |
USB3.0 Support Resolution MJPEG 3840×2160p@60/50fps NV12, I420, MJPEG 3840×2160p@30/25fps 1920×1080p@120/100fps 2560×1440p@60/50/30/25fps NV12, I420, MJPEG, YUY2,P010, RGB24 1920×1080p@60/50/30/25fps 1280×720p@60/50/30/25fps NV12, I420, MJPEG, YUY2, RGB24 720×576p@60/50/30/25fps 720×480p@60/50/30/25fps 640×480p@60/50/30/25fps |
| Audio Input |
HDMI Embedded Audio 3.5mm Analog Stereo Audio |
| Audio Format | Stereo / 16-bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications | N/A |
| SDK | N/A |
| OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) Linux / MAC OS |
| Platform Support | N/A |
| Support Camera | N/A |
