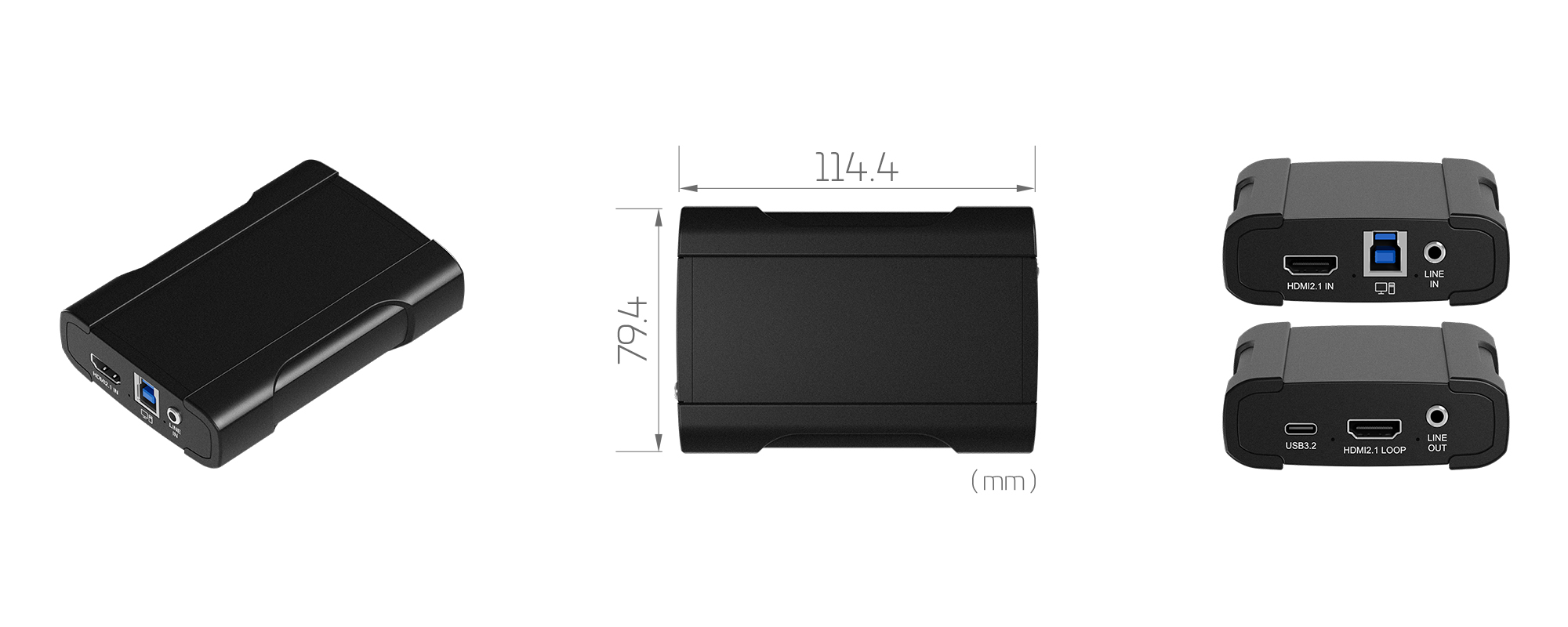

UB700G HDMI2.1-L HDR
1CH 4K144 HDMI2.1
| Max. Input Resolution | 3840×2160p@144fps |
| Video Input | 1×HDMI2.1 |
| Dimension | 114.4×79.4×23.92 ( mm ) |
| Interface | USB3.2 Type C ( SuperSpeed ) UVC |
| Feature | 422 10Bit HDR, 444 8Bit HDR |
| Video Input Detail |
All Resolution Below 3840×2160p@144fps 3840×2160p@120fps 2560×1440p@240fps 1920×1080p@360fps ( 422 10Bit HDR, 444 8Bit HDR ) |
| Video Output | 1×HDMI2.1 ( Loop-Through ) |
| Color Format |
RGB24 ( Support on outputs below 1440P60 ) P010 ( Support on outputs below 2160P30 ) YUY2 ( Support on outputs below 2160P50 ) NV12, I420 ( Support on outputs below 2160P60 ) MJPEG ( Supports on all outputs. ) |
| Build-in Hardware Encode | Software Compression, Real-Time Mode |
| Video Processing | N/A |
| Video Resolutions |
USB3.2 Support Resolution MJPEG 3840×2160@144/120fps 2560×1440@144fps NV12, I420, MJPEG 3840×2160@60fps 2560×1440@120fps 1920×1080@240/144fps YUY2, NV12, I420, MJPEG 3840×2160@50fps YUY2, NV12, I420, MJPEG, P010 3840×2160@30/25fps YUY2, NV12, I420, MJPEG, P010, RGB24 2560×1440@60/50/30/25fps 1920×1080@120/60/50/30/25fps 1280×720@120/60/50/30/25fps 720×576@50/25fps 720×480@60/30fps 640×480@60/30fps ———————————————————— USB3.0 Support Resolution MJPEG 3840×2160@144/120/60/50fps 2560×1440@144/120fps 1920×1080@240/144fps NV12, I420, MJPEG 3840×2160@30/25fps 1920×1080@120fps YUY2, NV12, I420, MJPEG 2560×1440@60/50fps YUY2, NV12, I420, MJPEG, P010, RGB24 2560×1440@30/25fps 1920×1080@60/50/30/25fps 1280×720@120/60/50/30/25fps 720×576@50/25fps 720×480@60/30fps 640×480@60/30fps |
| UVC Video Output Resolution |
USB3.2 Support Resolution MJPEG 3840×2160@144/120fps 2560×1440@144fps NV12, I420, MJPEG 3840×2160@60fps 2560×1440@120fps 1920×1080@240/144fps YUY2, NV12, I420, MJPEG 3840×2160@50fps YUY2, NV12, I420, MJPEG, P010 3840×2160@30/25fps YUY2, NV12, I420, MJPEG, P010, RGB24 2560×1440@60/50/30/25fps 1920×1080@120/60/50/30/25fps 1280×720@120/60/50/30/25fps 720×576@50/25fps 720×480@60/30fps 640×480@60/30fps ———————————————————— USB3.0 Support Resolution MJPEG 3840×2160@144/120/60/50fps 2560×1440@144/120fps 1920×1080@240/144fps NV12, I420, MJPEG 3840×2160@30/25fps 1920×1080@120fps YUY2, NV12, I420, MJPEG 2560×1440@60/50fps YUY2, NV12, I420, MJPEG, P010, RGB24 2560×1440@30/25fps 1920×1080@60/50/30/25fps 1280×720@120/60/50/30/25fps 720×576@50/25fps 720×480@60/30fps 640×480@60/30fps |
| Audio Input |
HDMI Embedded Audio 3.5mm Analog Stereo Audio |
| Audio Format | Stereo / 16-bit / 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| SDK | N/A |
| OS Support |
Windows 10 / Windows 11 ( 32-bit and 64-bit ) Linux / MAC OS |
| Platform Support | N/A |
| Support Camera | N/A |
