ARC6N0 NX
Highly Integrated AI Core, Provide 157 TOPS and Expandability
Features
- Powered by NVIDIA® Jetson Orin™ NX Super up to 157 TOPS
- 3-Axis Digital Accelerometer, 3-Axis Digital Gyroscope and 3-Axis Magnetometer
- 1×M.2 E Key / 2×M.2 M Key / 1×M.2 B Key
- 2×USB3.2 Gen2 Type-C
- I2C / GPIO / CAN BUS
- Compact Design
| System | |
|---|---|
| CPU |
NVIDIA Jetson Orin™ NX 16GB Super
NVIDIA Jetson Orin™ NX 8GB Super |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
| API Performance |
157 TOPS 117 TOPS |
| System Memory |
16GB LPDDR5 8GB LPDDR5 |
| Interface | |
| Storage | Supports External NVMe |
| Display Interface | 1×Mini HDMI2.0 |
| Ethernet | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |

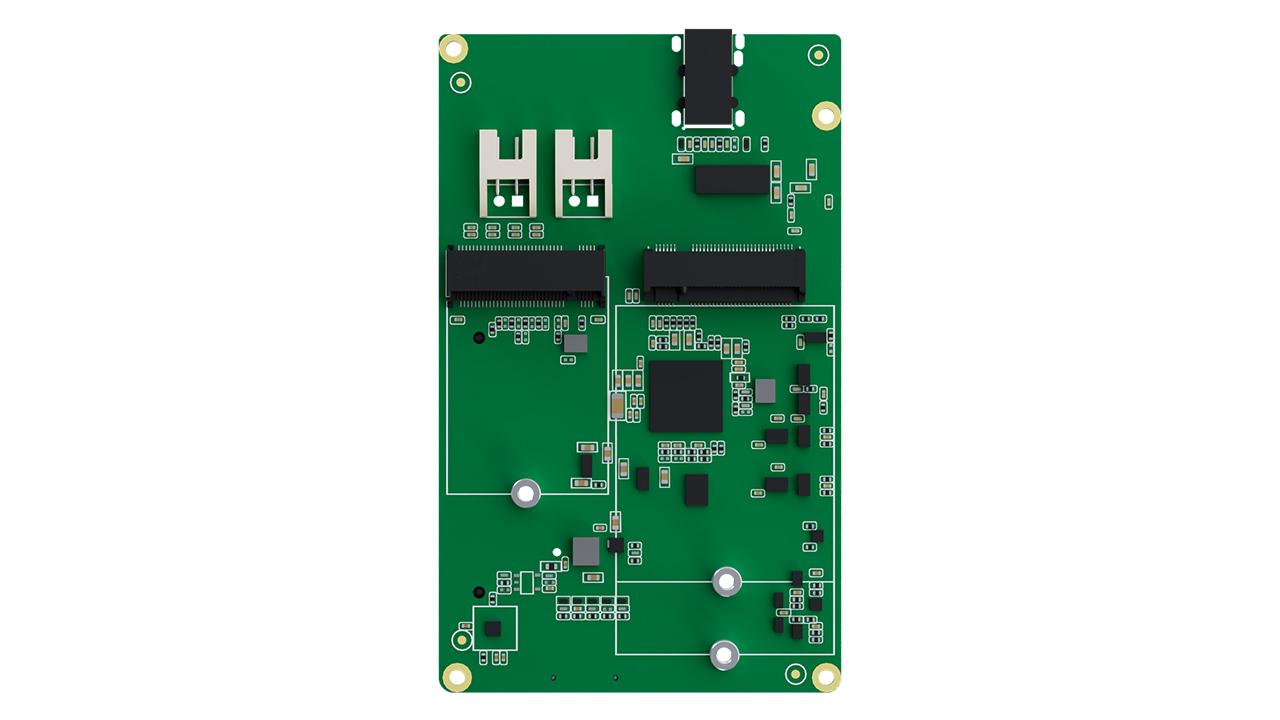

| Expansion Slot | Main Board 1×M.2 2230 E Key PCIe Gen4*1/USB2.0 Slot 1×M.2 2230 M Key PCIe Gen4*2 Slot Daughter Board 1×M.2 2230 M Key PCIe Gen4*4 Slot 1×M.2 3042/3052 B Key USB3.0 Slot |
| USB | Main Board 3×USB2.0 ( Wafer ) 2×USB3.2 Gen2 ( Type-C ) Daughter Board 1×USB2.0 ( Wafer ) |
| MIPI | 8 MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card ) |
| Peripheral Communication |
Main Board 3-Axis Digital Accelerometer 3-Axis Digital Gyroscope 1×UART ( Shared with Daughter Board ) 4×GPIO 1×I2C ( Shared with Daughter Board ) 2×PWM FAN 1×CAN Bus Daughter Board 3-Axis Magnetometer 2×UART ( UART0 Shared with Main Board ) 1×I2C ( I2C1 Shared with Main Board ) 1×Line In 1×Speaker Left & Right 1×SPI 2×CAN Bus 1×Nano SIM Card Slot |
| Misc. Features | Firmware Upgradable |
