VPP6N0-S NX 5G
4K60 + 5G & Edge AI
Features
- 5G & 4K60 with Low Latency Streaming ( ≤80ms )
- Up to 100 TOPS AI Performance
- 3×M2 M Key, Gen 4×4 / Gen 4×2 / Gen 4×1
- Fanless Design
- 4×USB3.2 Gen2
- RS232 / RS485 / I2C
| System | |
|---|---|
|
CPU |
NVIDIA Jetson Orin™ NX 8GB 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 NVIDIA Jetson Orin™ NX 16GB 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
|
API Performance |
NVIDIA Jetson Orin™ NX 8GB 70 TOPS NVIDIA Jetson Orin™ NX 16GB 100 TOPS |
|
System Memory |
NVIDIA Jetson Orin™ NX 8GB 8GB LPDDR5 NVIDIA Jetson Orin™ NX 16GB 16GB LPDDR5 |
| Interface | |
| Storage | Supports External NVMe |
| Display Interface | 2×HDMI2.0 |
| Ethernet | 1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
|
Expansion Slot |
M.2 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot 1×M.2 2280 M Key PCIe Gen4×2 Slot 1×M.2 2280 M Key PCIe Gen4×1 Slot |
| USB |
4×USB3.2 Gen2 ( Type-A ) 1×USB3.2 Gen1 ( Pin Header, Contains USB3.0 Signal Only ) |
|
MIPI |
8×MIPI CSI Lanes ( Support MIPI Camera, Capture Card ) |
|
Audio |
1×Line In ( 3.5mm or Pin Header ) 1×Line Out ( 3.5mm or Pin Header ) |
| Peripherals |
1×RS232 ( Phoenix Connector or Pin Header ) 1×RS485 ( Phoenix Connector or Pin Header ) 4×GPIO ( Pin Header ) 3×I2C ( Pin Header ) |
|
Misc. Features |
Firmware Upgradable AutoPower ( Pin Header ) |
| 5G Mobility Network | |
|
Mobility Module |
5G/4G/3G SIM Module |
|
5G Support |
Sub-6 SA Non-SA |
|
4G Support |
LTE Cat20 LTE FDD LTE TDD |
| 3G Support | HSPA+ |

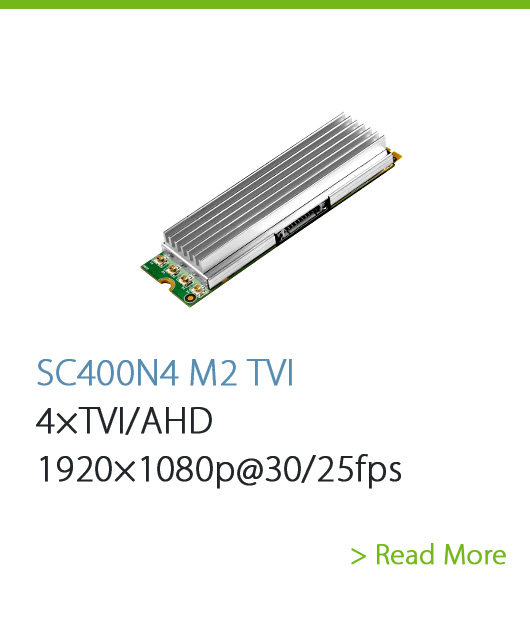

| Capture Card Suggestion |
|---|
