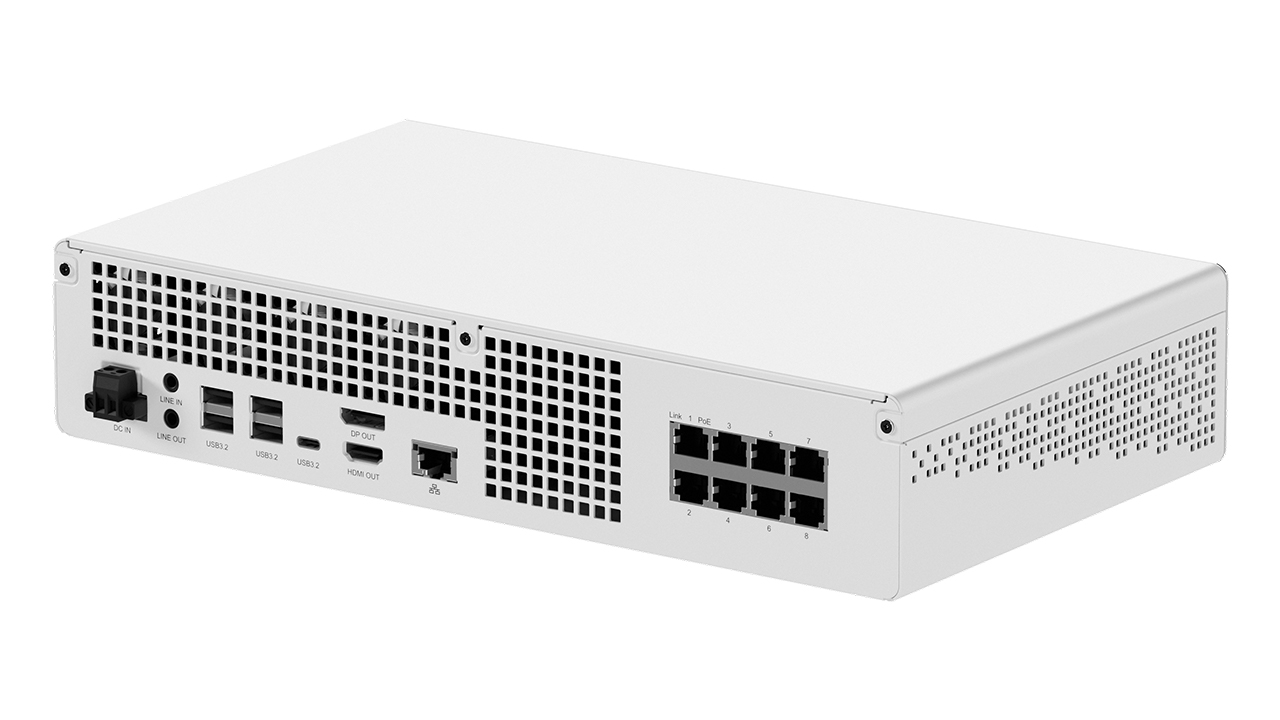

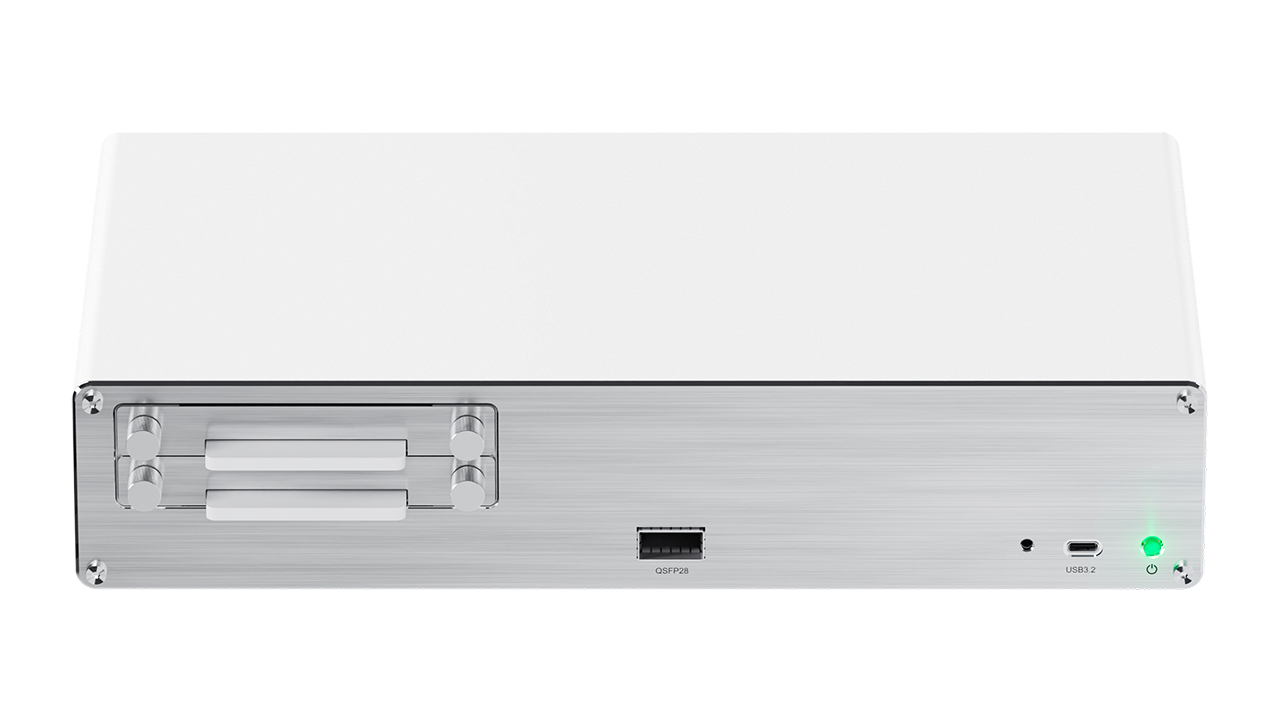

EDG6N0-S T5X NVR
Highly Expandable AI Edge, Up to 2070 FP4 TFLOPS, 8x PoE, HDMI, DP
Features
- Powered by NVIDIA® Jetson Thor™( T5000 / T4000 ), up to 2070/1200 FP4 TFLOPS
- 1×QSFP28
- 1×M.2 M Key ( for OS ) / 1×M.2 E Key / 1×M.2 B Key
- 4×USB3.2 Gen2 Type-A, 2×USB3.2 Gen2 Type-C
- 1×HDMI2.0, 1×DP1.4
- 8×PSE ( 15W / Port )
- 2×2.5”SATA HDD
| System | |
|---|---|
| SOM |
NVIDIA Jetson Thor™ T5000 NVIDIA Jetson Thor™ T4000 |
| CPU | NVIDIA Jetson Thor™ 128GB 14-Core ARM Neoverse V3AE 64-bit CPU NVIDIA Jetson Thor™ 64GB 12-Core ARM Neoverse V3AE 64-bit CPU |
| GPU | 2560 NVIDIA CUDA cores | 96 5th Tensor cores 1536 NVIDIA CUDA cores | 64 5th Tensor cores |
| API Performance | Up to 2070 / 1200 FP4 TFLOPs |
| System Memory |
128 / 64 GB LPDDR5X 273 GB/s |
| Interface | |
| Storage | 1×M.2 2280 M-key NVMe for OS storage 2×2.5”SATA HDD for data storage |
| Display Interface | 1×HDMI2.0 ( Up to 4K60 ), 1×DP1.4 ( Up to 4K60 ) |
| Ethernet | 1×QSFP28 for 100 / 75Gbps Ethernet 1×RJ45 for 5Gbps Ethernet DHCP Client |
| Expansion Slot | M.2 1×M.2 2280 M Key PCIe Gen4×2 Slot ( for OS ) 1×M.2 2230 E Key PCIe Gen4×1/USB2.0/SDIO Slot 1×M.2 2242/3042/3052 B Key USB3.2 Gen1 Slot |
| USB | 4×USB3.2 Gen2 ( Type-A ) 2×USB3.2 Gen2 ( Type-C ) |
| Audio | 1×Line In ( 3.5mm ) 1×Line Out ( 3.5mm ) |
| Fan | 1×CPU Fan 4×3010 System FANs |
| Misc. Features | Firmware Upgradable AutoPower ( Pin Header ) |
| Video Feature | |
| Video Encode |
NVIDIA Jetson Thor™ 128GB NVIDIA Jetson Thor™ 64GB |
| Video Decode |
NVIDIA Jetson Thor™ 128GB NVIDIA Jetson Thor™ 64GB |
