SC710N1-L SDVoE-C
1 CH SDVoE 4K60 4:4:4 10BITS HDR Capture
| Model Name | SC710N1-L SDVoE-C |
| Max. Input Resolution | 3840×2160p@60/50fps in → 3840×2160p@60/50fps out |
| Video Input | 1×RJ45 ( 10G ) |

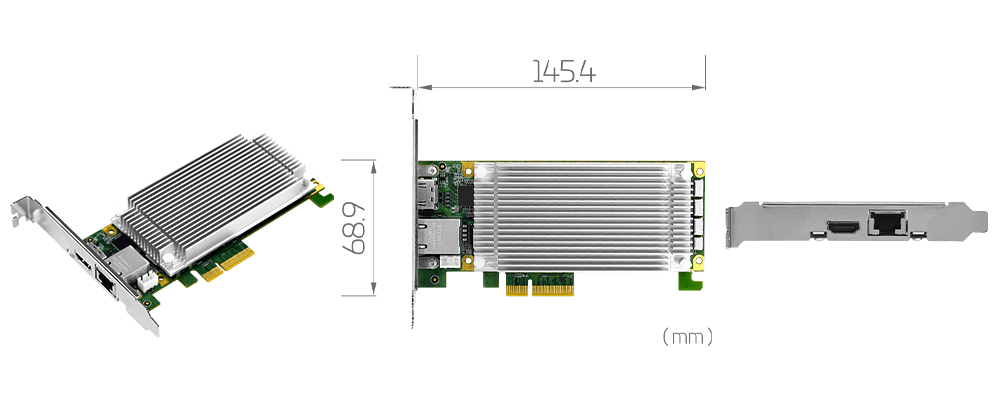

| Dimension | 145.4×68.9( mm ) |
| Interface | PCIe×4 ( Gen2 ) |
| Feature |
Multi Instances Multi Devices |
| Video Input Detail | 1×RJ45 ( 10G ) |
| Video Output | 1 × HDMI(Loop-through) |
| Color Format |
Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Build-in Hardware Encode | N/A |
| Video Processing |
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions |
4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ✻ More resolution supported by SDK |
| Audio Input | 1×SDVoE Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| GPIO | N/A |
| WatchDog | N/A |
| Supported Software Applications |
vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
