SDVoE to Multi Pro 4K-C
1CH 12G-SDI/HDMI2.0/DP-MST Receiver ( Copper )
| Model Name | SDVoE to Multi Pro 4K-C |
| Description | SDVoE to HDMI 2.0, DisplayPort 1.2 and 12G-SDI |
| Feature |
Auto Source Format Detection 4 USB interface for USB HID Devices connect 2 RJ45 Connectors for SDVoE Video and Control Usage |
| Input Interface |
Video RJ45×1 ( For SDVoE Input ) Audio 3.5mm Phone Jack×1 for L/R Audio |
| Output Interface |
Converted Video HDMI 2.0×1 DP 1.2×1 12G-SDI×1 Audio 3.5mm Phone Jack×1 for L/R Audio |
| Supported Video Input Format |
RJ45 Network Packet for Video Transfer |
| Supported Video Output Format |
SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below ) 12G-SDI 4096x2160p@60/50fps 3840x2160p@60/50fps 6G-SDI 4096x2160p@30/25/24fps 3840x2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps HDMI 2.0/DP1.2( Converted ) As Input Format |
| GENLOCK Frame Lock Mode | N/A |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

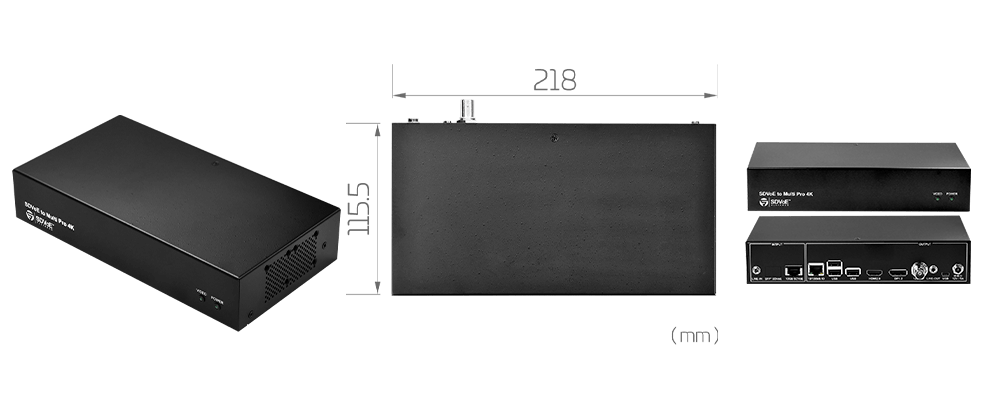

| Dimensio | L:218mm×W:115.5mm×H:42.5mm |
