7-6 Object Detection

Learning Objectives

Object Detection is an important task in computer vision. Its goal is to enable a computer to identify what objects are present in an image or video and where they are located.

For a single image, an object detection system outputs:

1. Object Category (What)

For example: person, car, dog, cup

2. Object Location (Where)

Usually represented by a bounding box

→ a rectangular box that encloses the object

3. Confidence Score (Confidence)

Indicates how certain the model is that the detected object belongs to a specific category

In this course, we will use Python and a pre-trained object detection model—YOLO to detect objects.

Detect objects in images and print results

from ultralytics import YOLO
model = YOLO("yolo11n.pt")
results = model.predict("https://ultralytics.com/images/bus.jpg")

for result in results:

    print(f'xywh: {result.boxes.xywh}') # Center coordinates (x, y) and dimensions (w, h)

    print(f'xyxy: {result.boxes.xyxy}') # Coordinates of the top-left and bottom-right corners (x1, y1, x2, y2)

    print(f'names: {[result.names[cls.item()] for cls in result.boxes.cls.int()]}') # Class name of the detected object

    print(f'confs: {result.boxes.conf}') # Confidence score of the detection

Enter the following command in the terminal.

python object_detect.py

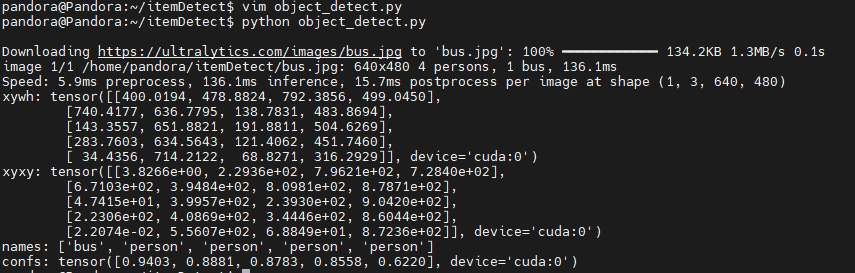

You will then get the result.

Perform object detection using a webcam and render results

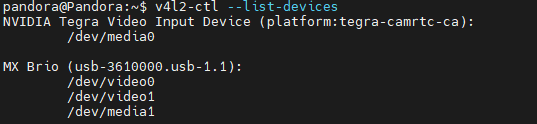

First, use v4l2-ctl --list-devices to identify the webcam, then check the order of the video devices listed.

import cv2

from ultralytics import YOLO
model = YOLO("yolo11n.pt")
# Set the order before video_path (example: video0 → set to 0).

video_path = 0

cap = cv2.VideoCapture(video_path)
while cap.isOpened():

    success, frame = cap.read()

    if success:

        results = model.predict(frame)

        annotated_frame = results[0].plot()

        cv2.imshow("YOLO Inference", annotated_frame)
        if cv2.waitKey(1) & 0xFF == ord("q"):

            break

    else:

        break
cap.release()

cv2.destroyAllWindows()

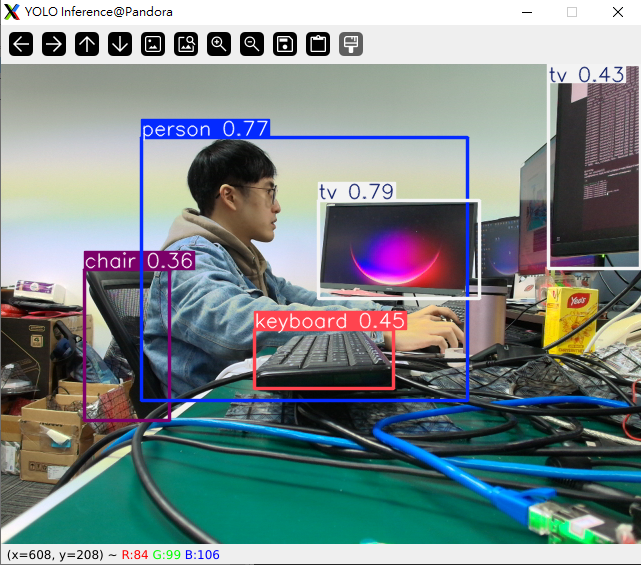

You will then obtain the object detection results.
